So sánh — nnU-Net vs STU-Net

Đối chiếu head-to-head trên 200 ca held-out: định lượng (Dice, Wilcoxon), bảng từng ca, và 3D trực quan.

📅 2026-07-12🧠 chi tiết training STU-Net → tab STU-Net

1Kết luận định lượng (held-out 200 ca)

Model	Kiểu train	Params	Epochs	Held-out Dice
STU-Net-S (transfer)	pretrained	14.6M	40	0.9585 🏆
nnU-Net (scratch)	from scratch	~30M	604	0.9549

STU-Net-S thắng ở mọi trục: Dice held-out cao hơn (0.9585 vs 0.9549, khác biệt có ý nghĩa TK — Wilcoxon p=0.015), đồng thời 2× ít param, 15× ít epoch, nhanh hơn/epoch. Đồng thuận giữa 2 model rất cao (Dice nnU↔STU ~0.977).

2Bảng so sánh từng ca

Held-out (fold_0 val). Dice-vs-silver mỗi model + EAT mỗi model + Dice giữa 2 model. Kiểm định Wilcoxon paired (200 ca).

STU-Net Dice

0.9585

vs silver · 200 ca

nnU-Net Dice

0.9549

vs silver · 200 ca

Wilcoxon p

0.015

có ý nghĩa (p<0.05)

STU thắng

105/200

ca Dice cao hơn

Ca	EAT nnU	EAT STU	ΔEAT	Dice nnU	Dice STU	Dice nnU↔STU	Tốt hơn*
281	51.7	55.6	+3.9	0.9603	0.9598	0.9723	nnU
199	52.1	57.5	+5.5	0.9529	0.9574	0.9649	STU
19	59.5	65.3	+5.7	0.9642	0.9484	0.9758	nnU
27	63.6	68.9	+5.3	0.9483	0.9344	0.978	nnU
236	69.6	74.3	+4.8	0.9601	0.9603	0.9773	STU
240	70.3	75.7	+5.4	0.9634	0.9616	0.9838	nnU
254	74.6	82.4	+7.8	0.9599	0.9566	0.9731	nnU
246	76.3	83.4	+7.1	0.9537	0.96	0.9777	STU
203	79.9	86.6	+6.7	0.9704	0.9726	0.9804	STU
101	80.2	87.7	+7.4	0.9496	0.9368	0.9726	nnU
266	84.0	90.2	+6.3	0.9721	0.9704	0.98	nnU
313	83.8	90.4	+6.6	0.972	0.9647	0.9791	nnU
157	83.7	91.3	+7.5	0.9669	0.964	0.9749	nnU
1000	85.3	91.3	+6.0	0.9695	0.9712	0.9818	STU
228	87.8	93.9	+6.1	0.9361	0.9628	0.9814	STU
152	87.1	94.2	+7.1	0.9625	0.963	0.9777	STU
261	83.6	94.9	+11.3	0.9589	0.9447	0.9551	nnU
135	90.4	95.3	+4.9	0.9271	0.9544	0.9802	STU
107	90.2	99.0	+8.7	0.963	0.962	0.9785	nnU
299	91.1	100.2	+9.1	0.9618	0.9631	0.9781	STU
22	96.3	103.4	+7.1	0.917	0.9641	0.9824	STU
220	92.4	104.5	+12.1	0.9446	0.9523	0.9662	STU
140	99.3	106.7	+7.5	0.9571	0.9576	0.973	STU
194	99.2	107.6	+8.4	0.9581	0.9622	0.9793	STU
113	104.6	107.6	+3.0	0.9348	0.9489	0.9685	STU
233	99.1	108.5	+9.4	0.939	0.9607	0.982	STU
201	98.1	108.7	+10.6	0.9722	0.9652	0.9776	nnU
197	101.2	109.6	+8.4	0.9621	0.957	0.9806	nnU
192	103.2	110.2	+7.0	0.9766	0.9746	0.9854	nnU
164	102.0	110.2	+8.2	0.9512	0.9657	0.983	STU
212	103.3	115.9	+12.6	0.971	0.9676	0.9784	nnU
278	103.1	116.3	+13.2	0.9617	0.9607	0.9718	nnU
18	109.5	116.9	+7.4	0.9647	0.9651	0.9824	STU
285	112.7	122.6	+9.8	0.9526	0.9369	0.9819	nnU
312	117.2	129.3	+12.0	0.9627	0.9608	0.9778	nnU
275	117.6	129.4	+11.8	0.9573	0.9609	0.975	STU
128	120.5	131.5	+11.0	0.9657	0.9636	0.9784	nnU
297	121.6	133.3	+11.8	0.9295	0.9445	0.9781	STU
149	124.9	134.9	+10.1	0.9694	0.9669	0.977	nnU
239	123.8	135.9	+12.1	0.9653	0.9637	0.9772	nnU
293	130.2	137.8	+7.7	0.8505	0.8659	0.9791	STU
215	129.9	144.2	+14.3	0.9643	0.9698	0.9804	STU
146	134.5	145.2	+10.6	0.9502	0.9557	0.9739	STU
244	133.9	145.3	+11.3	0.9657	0.9624	0.9748	nnU
218	133.8	147.1	+13.3	0.9632	0.9657	0.9738	STU
267	135.0	152.1	+17.1	0.9484	0.9477	0.967	nnU
222	146.8	156.9	+10.1	0.9341	0.9654	0.9787	STU
25	145.6	159.4	+13.8	0.943	0.9645	0.979	STU
277	147.0	160.0	+13.0	0.9613	0.9625	0.9744	STU
1	147.3	161.4	+14.1	0.9666	0.9625	0.9762	nnU

*"Tốt hơn" = model có Dice-vs-silver cao hơn ở ca đó (STU=xanh, nnU=vàng). EAT tính trên ROI đã cleanup mỗi model. Bảng hiện 50 ca showcase; thống kê trên đủ 200 ca.

3So sánh 3D trực quan

50 ca held-out, ROI 3D nnU-Net (trên) vs STU-Net-S (dưới) mỗi ca, sắp theo EAT. Màu Dice: ≥0.95 · 0.90–0.95 · <0.90.

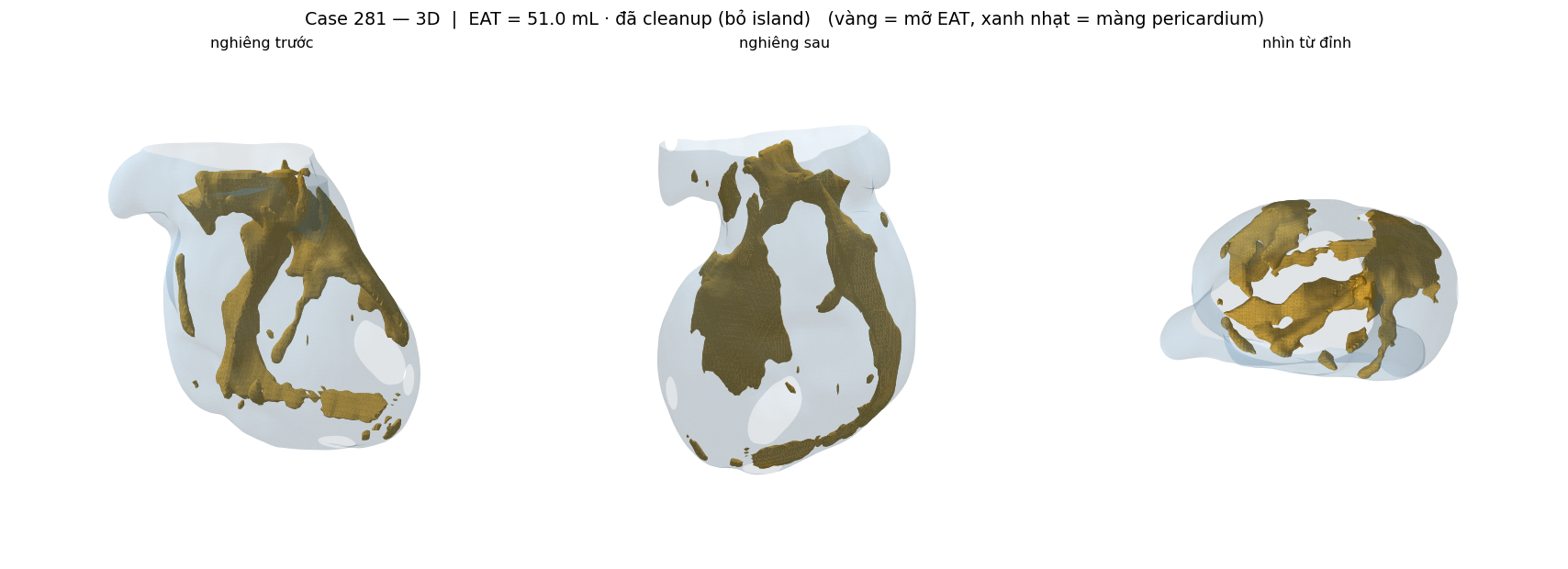

nnU 281 — **Ca 281** · Dice(nnU↔STU) 0.9723 · ΔEAT +3.9 mL

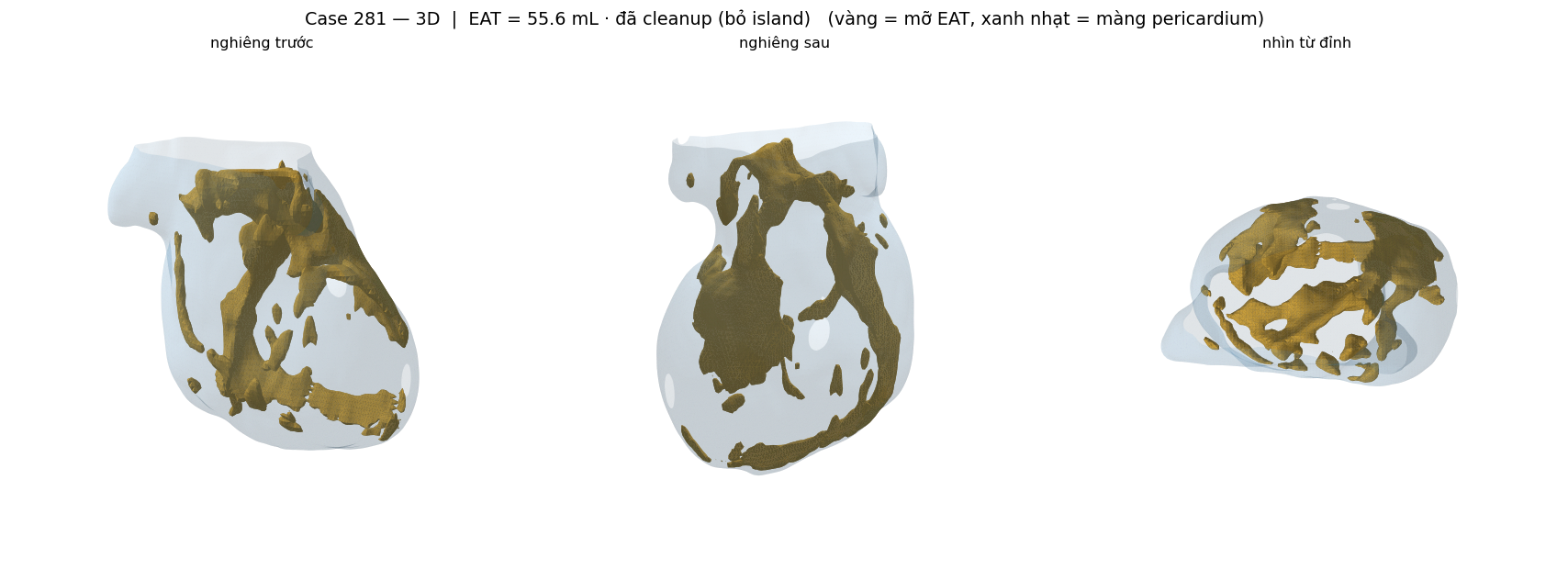

STU 281 — **Ca 281** · Dice(nnU↔STU) 0.9723 · ΔEAT +3.9 mL

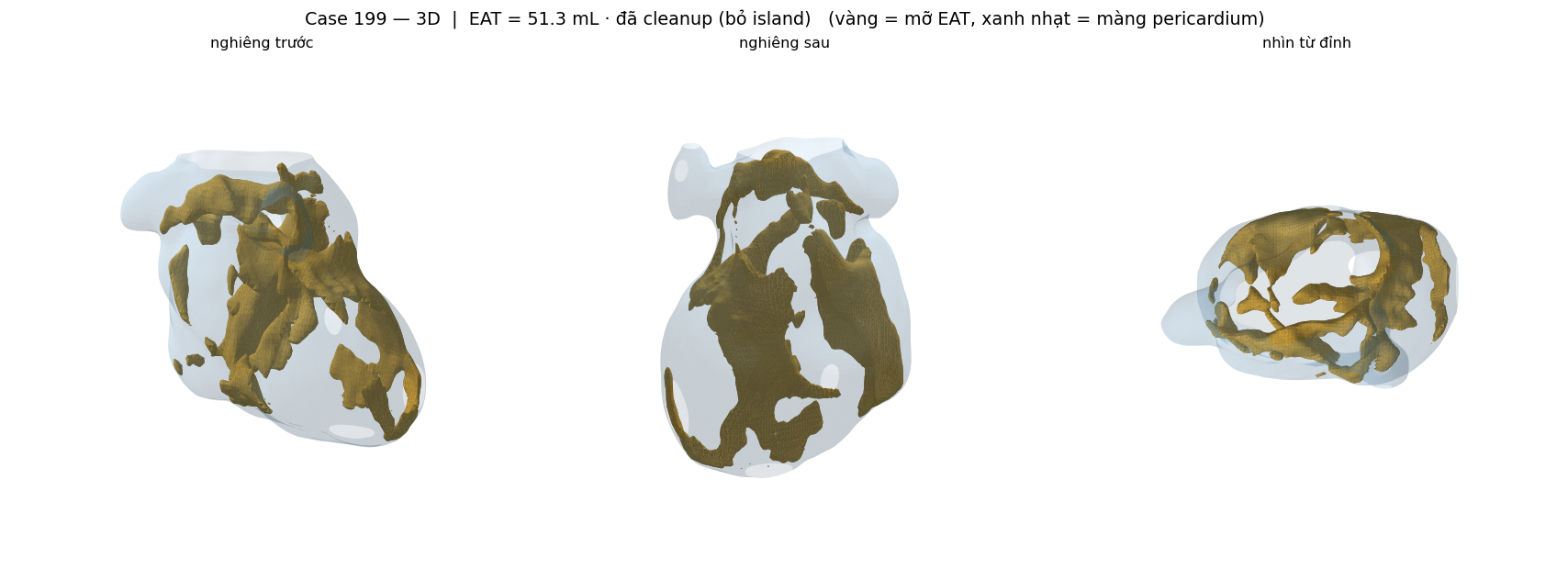

nnU 199 — **Ca 199** · Dice(nnU↔STU) 0.9649 · ΔEAT +5.5 mL

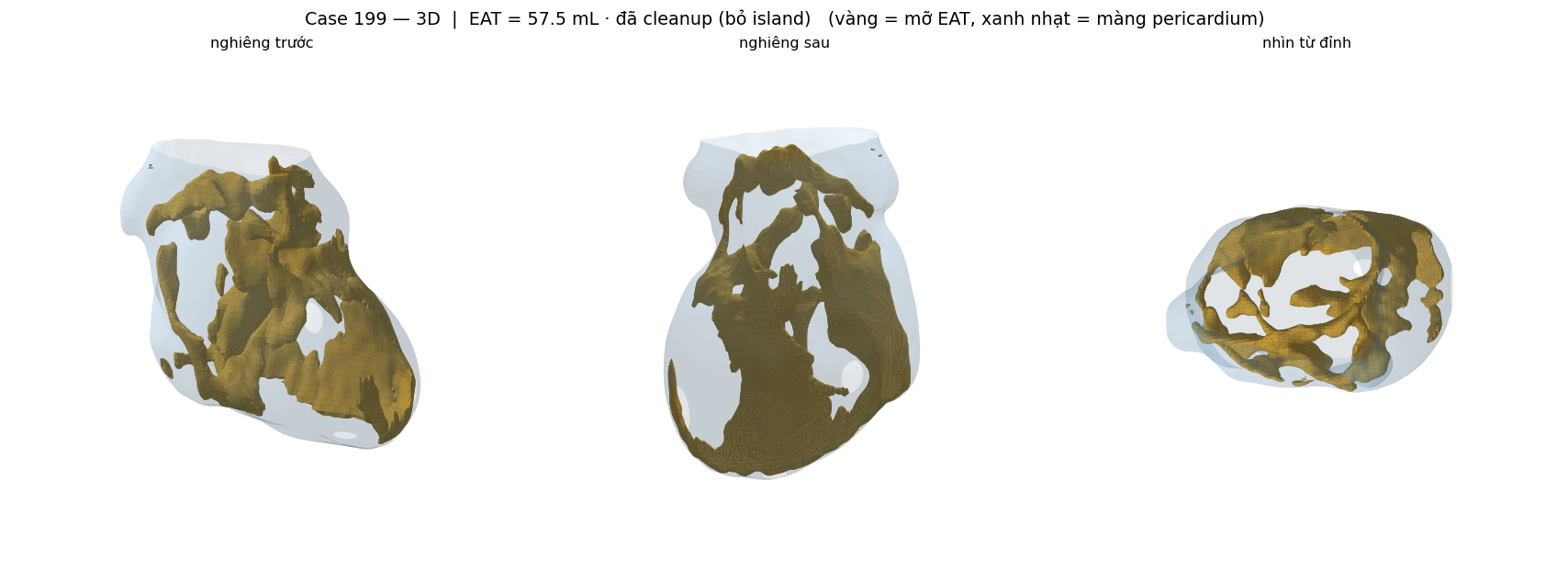

STU 199 — **Ca 199** · Dice(nnU↔STU) 0.9649 · ΔEAT +5.5 mL

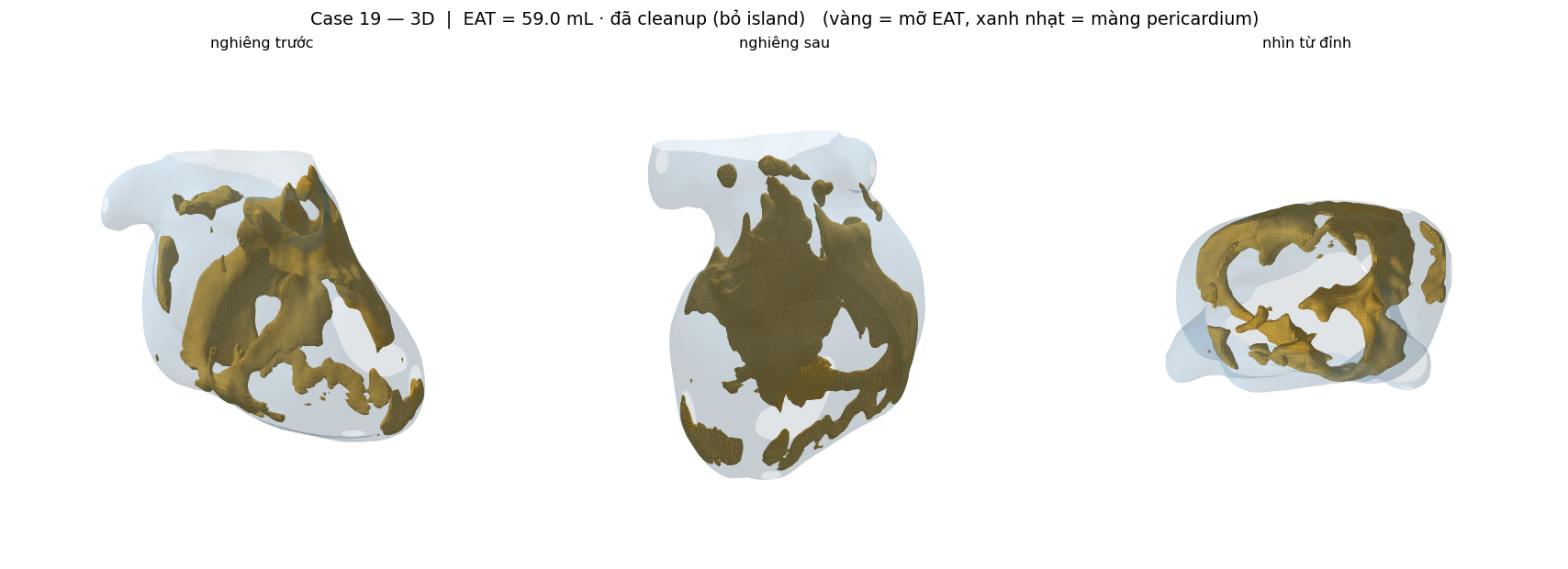

nnU 19 — **Ca 19** · Dice(nnU↔STU) 0.9758 · ΔEAT +5.7 mL

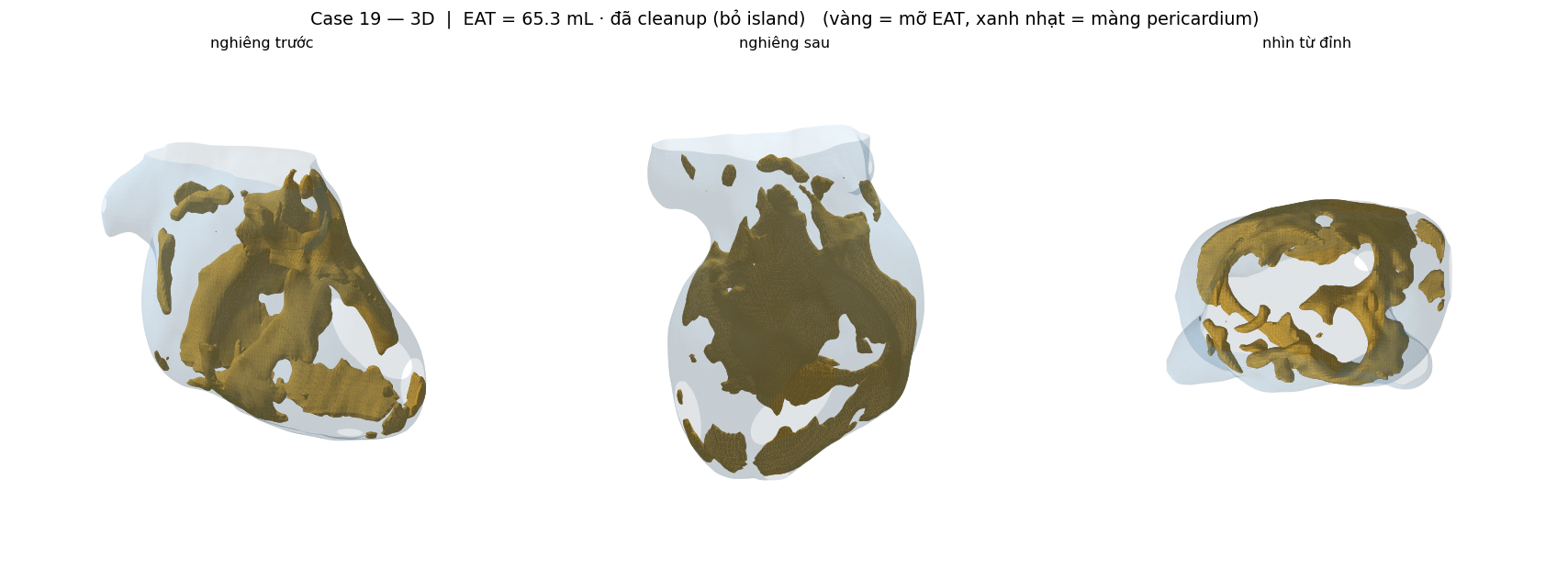

STU 19 — **Ca 19** · Dice(nnU↔STU) 0.9758 · ΔEAT +5.7 mL

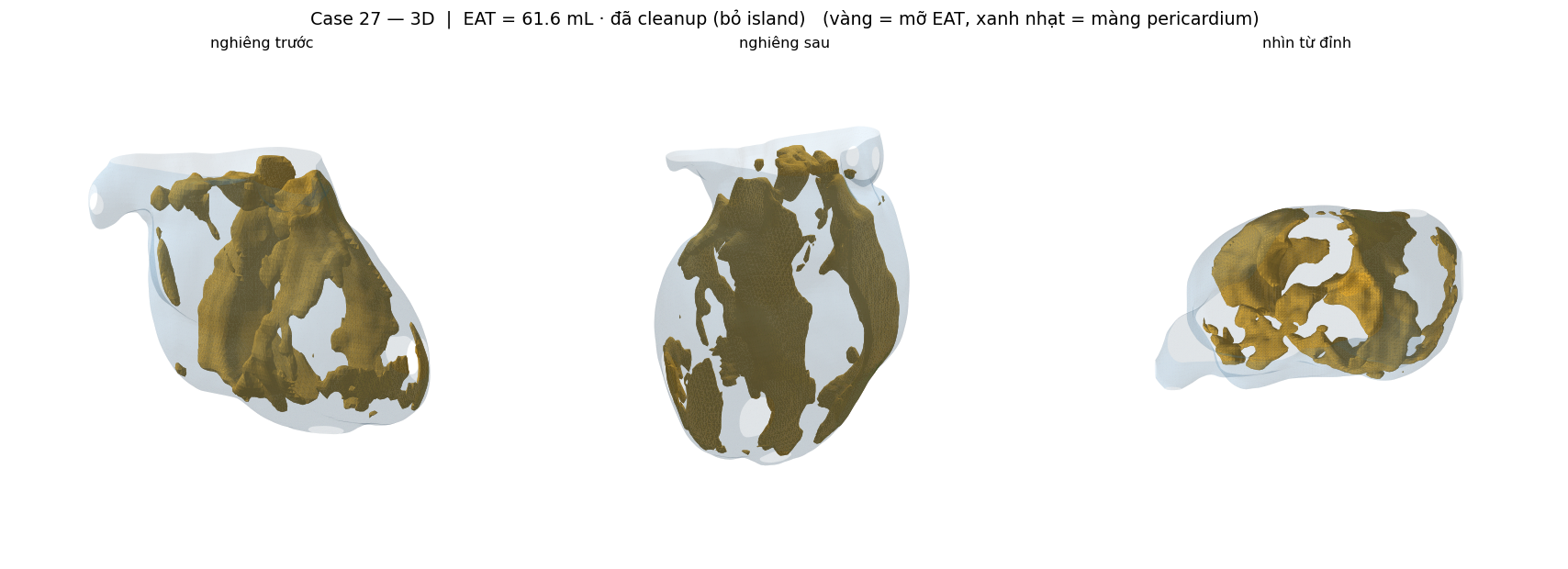

nnU 27 — **Ca 27** · Dice(nnU↔STU) 0.978 · ΔEAT +5.3 mL

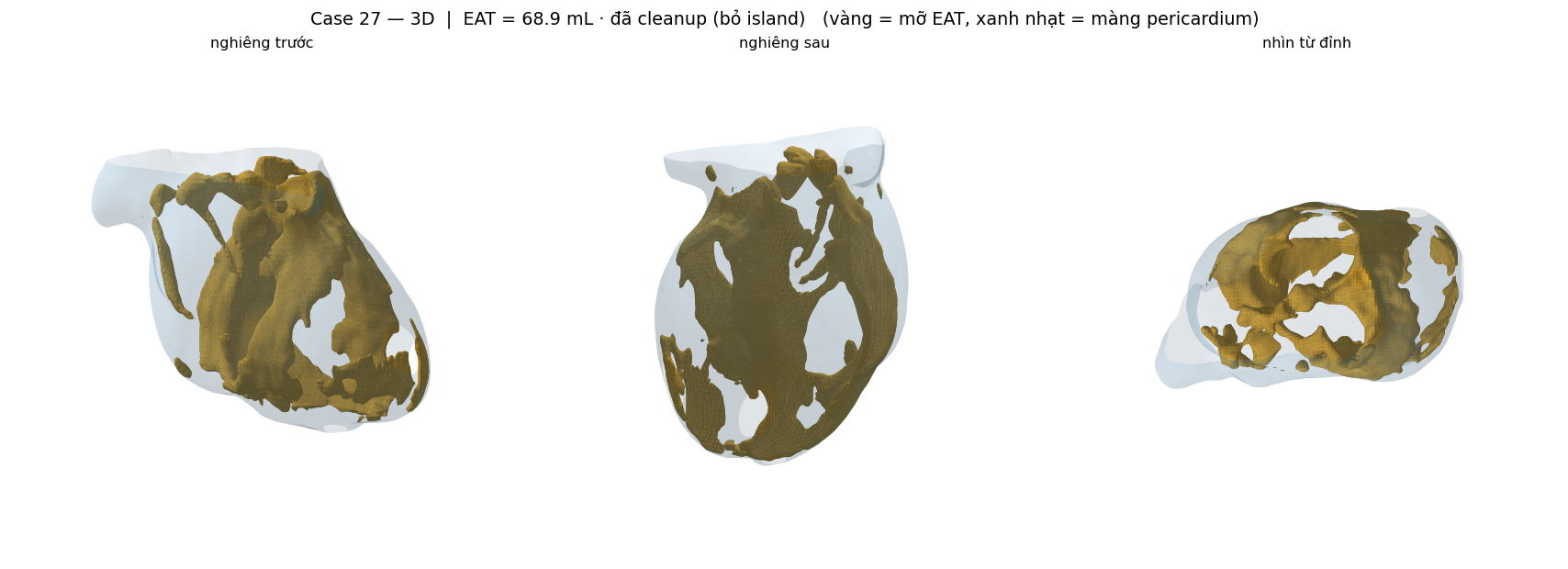

STU 27 — **Ca 27** · Dice(nnU↔STU) 0.978 · ΔEAT +5.3 mL

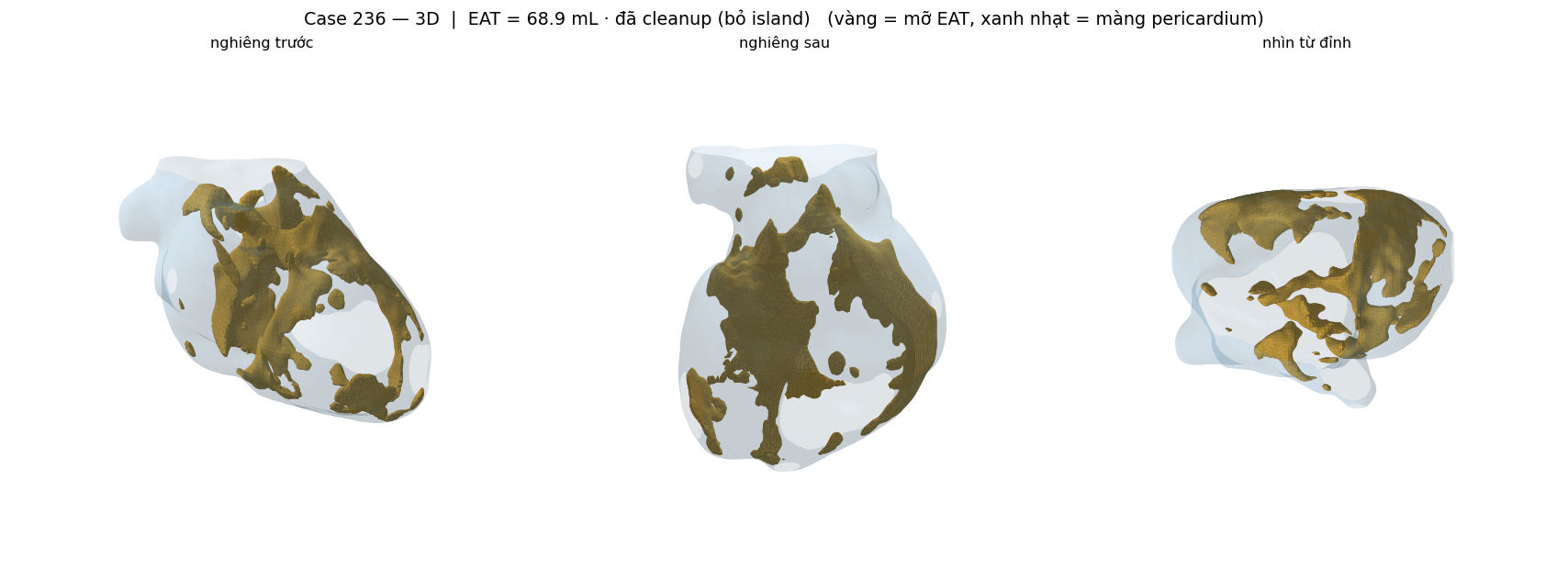

nnU 236 — **Ca 236** · Dice(nnU↔STU) 0.9773 · ΔEAT +4.8 mL

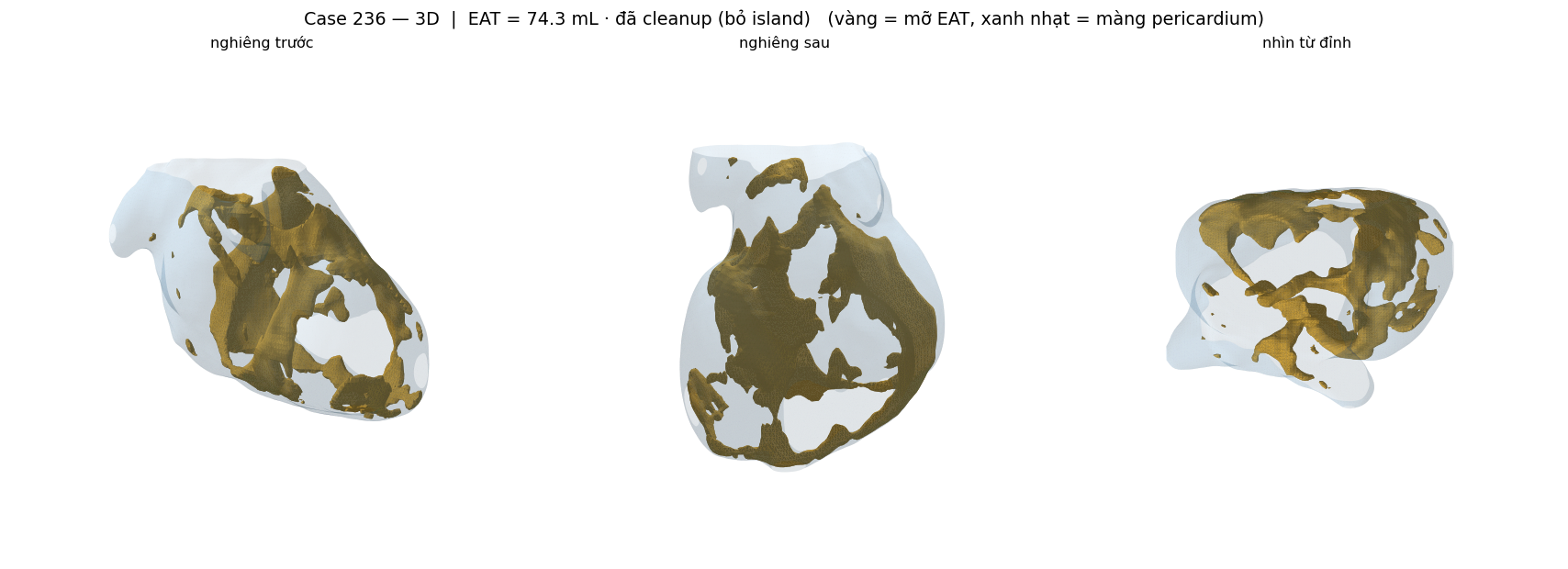

STU 236 — **Ca 236** · Dice(nnU↔STU) 0.9773 · ΔEAT +4.8 mL

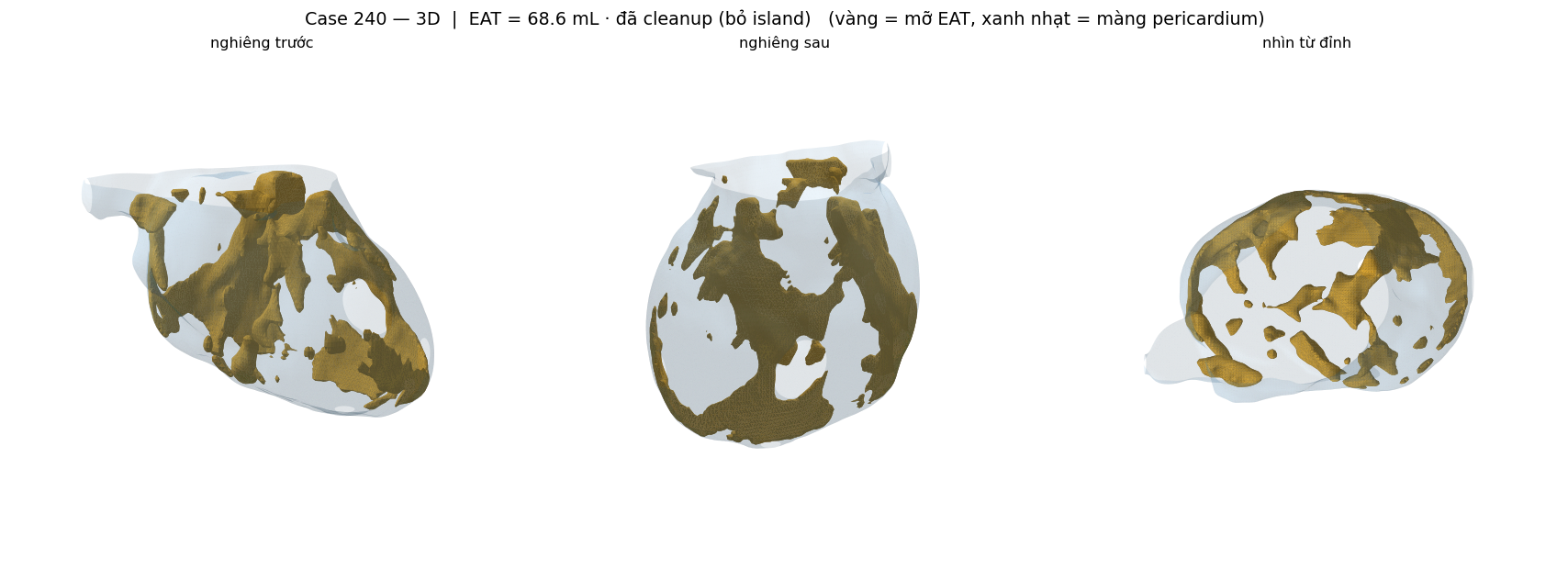

nnU 240 — **Ca 240** · Dice(nnU↔STU) 0.9838 · ΔEAT +5.4 mL

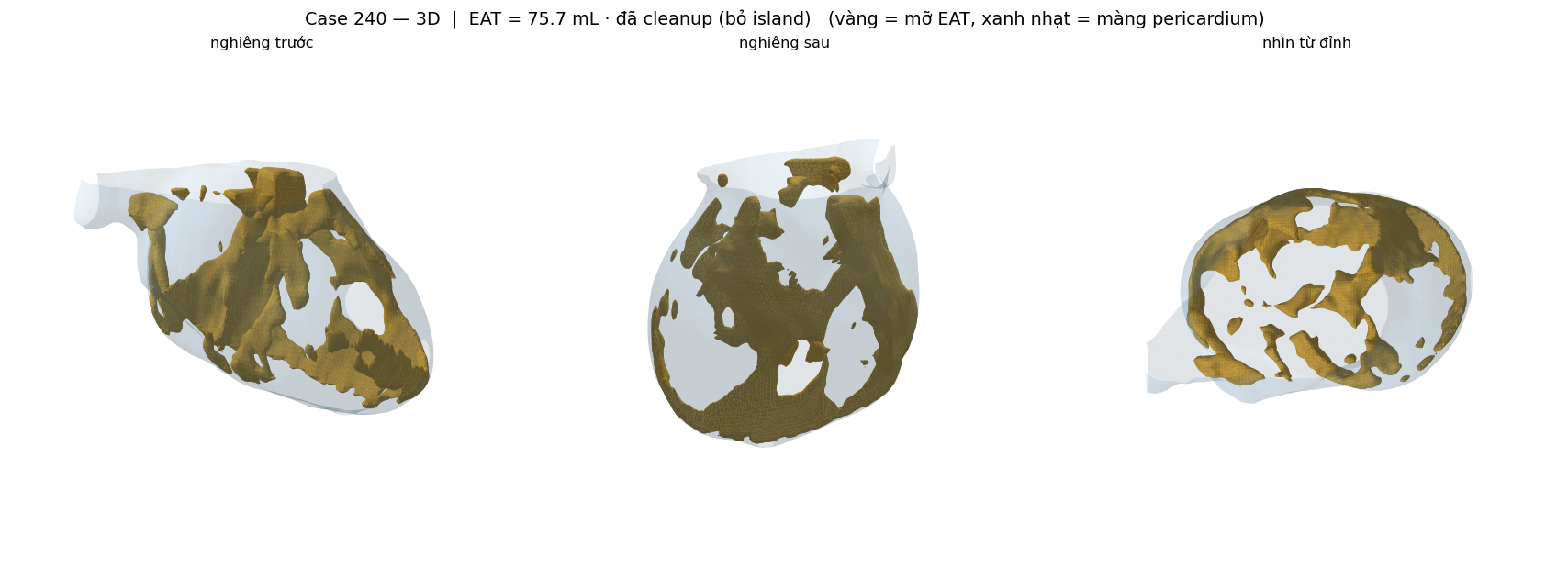

STU 240 — **Ca 240** · Dice(nnU↔STU) 0.9838 · ΔEAT +5.4 mL

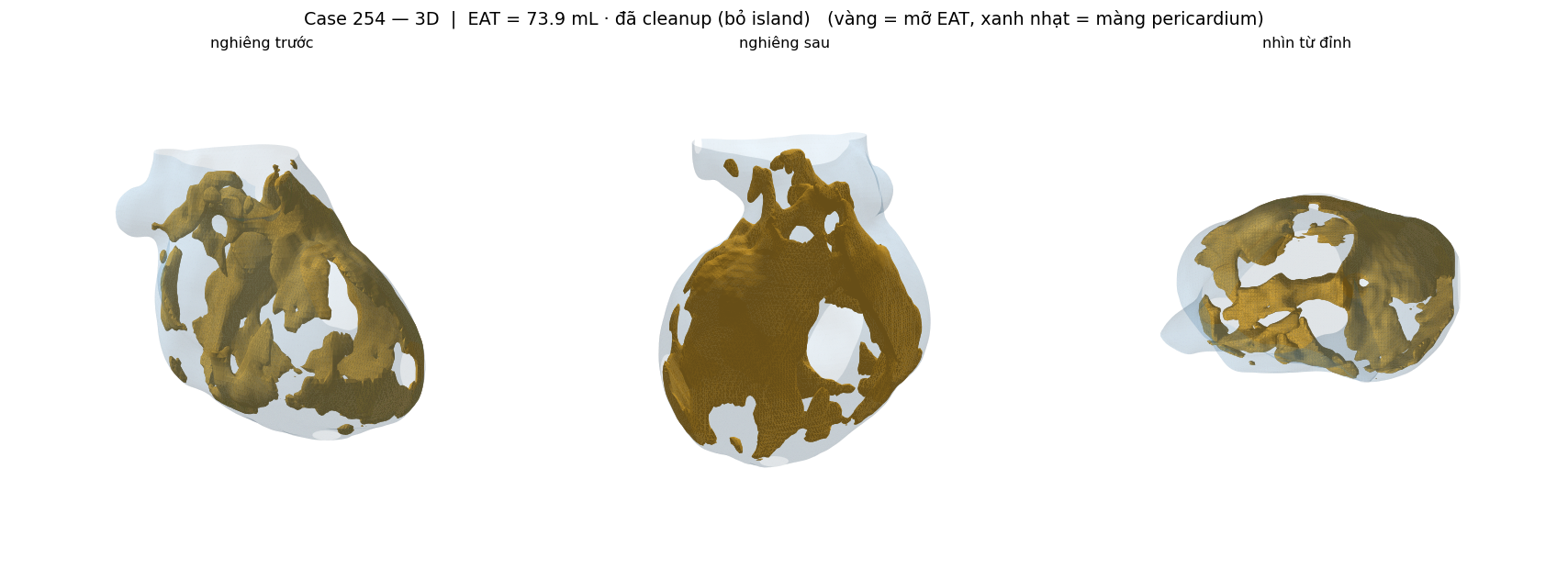

nnU 254 — **Ca 254** · Dice(nnU↔STU) 0.9731 · ΔEAT +7.8 mL

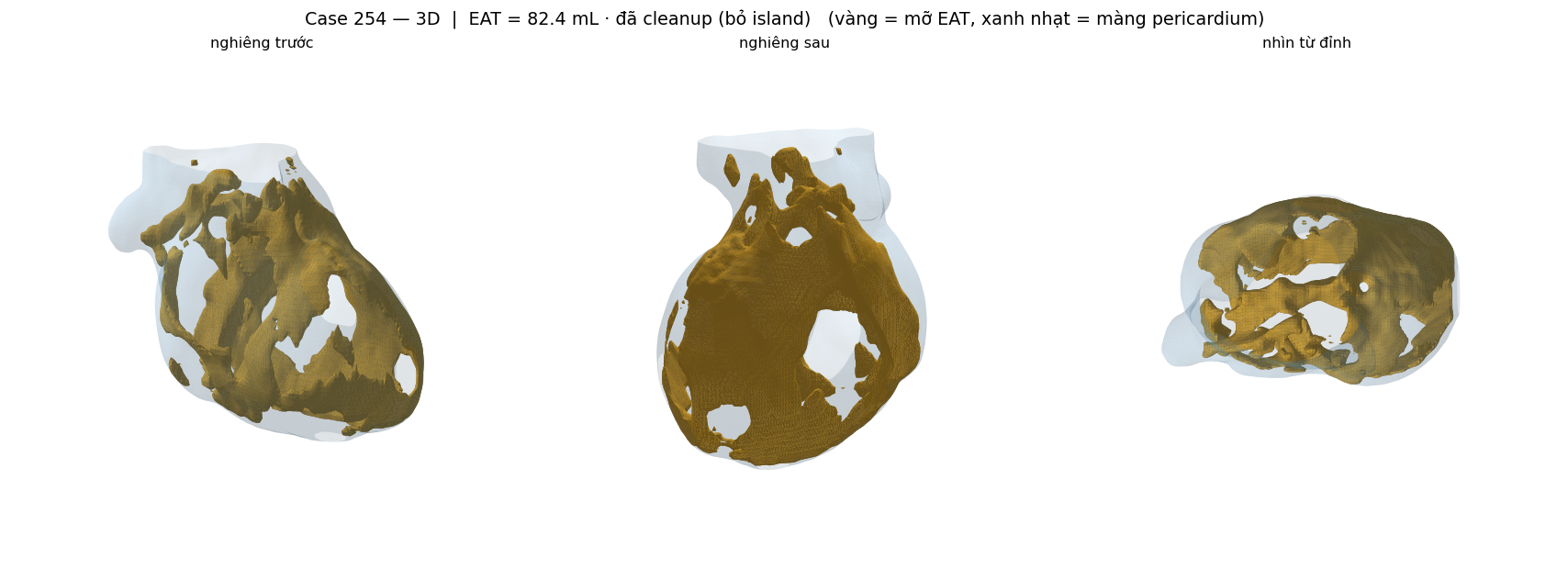

STU 254 — **Ca 254** · Dice(nnU↔STU) 0.9731 · ΔEAT +7.8 mL

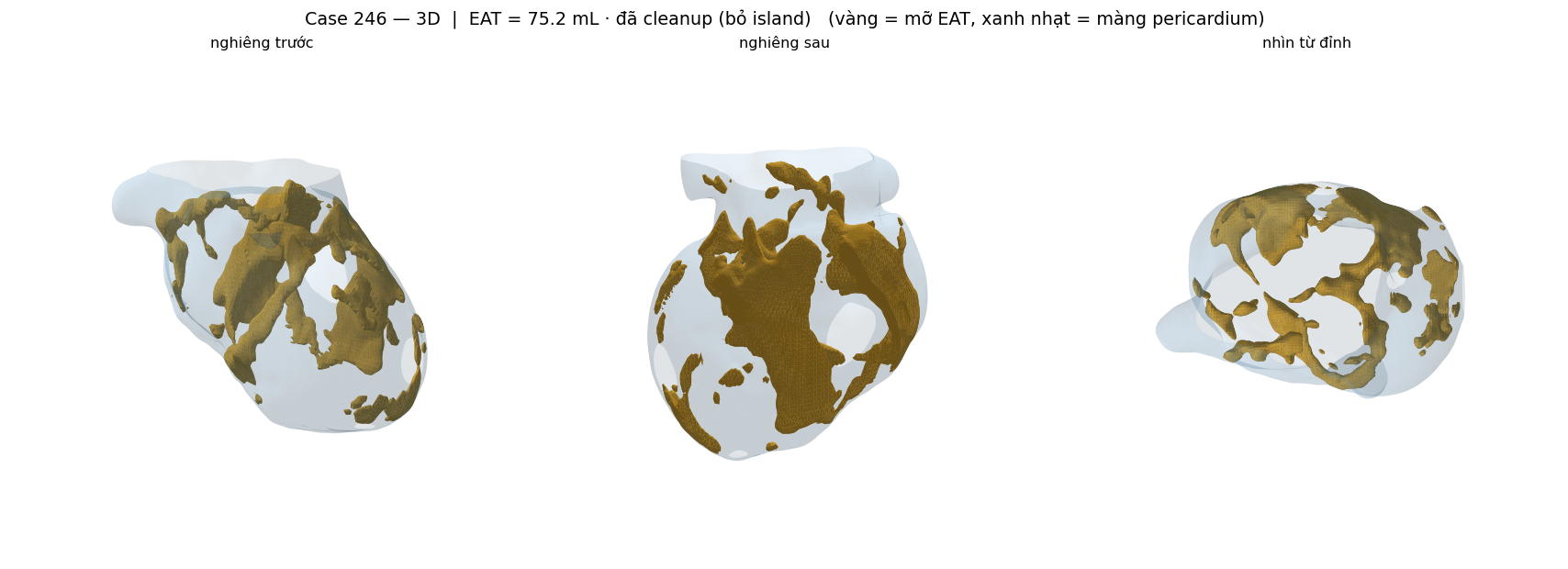

nnU 246 — **Ca 246** · Dice(nnU↔STU) 0.9777 · ΔEAT +7.1 mL

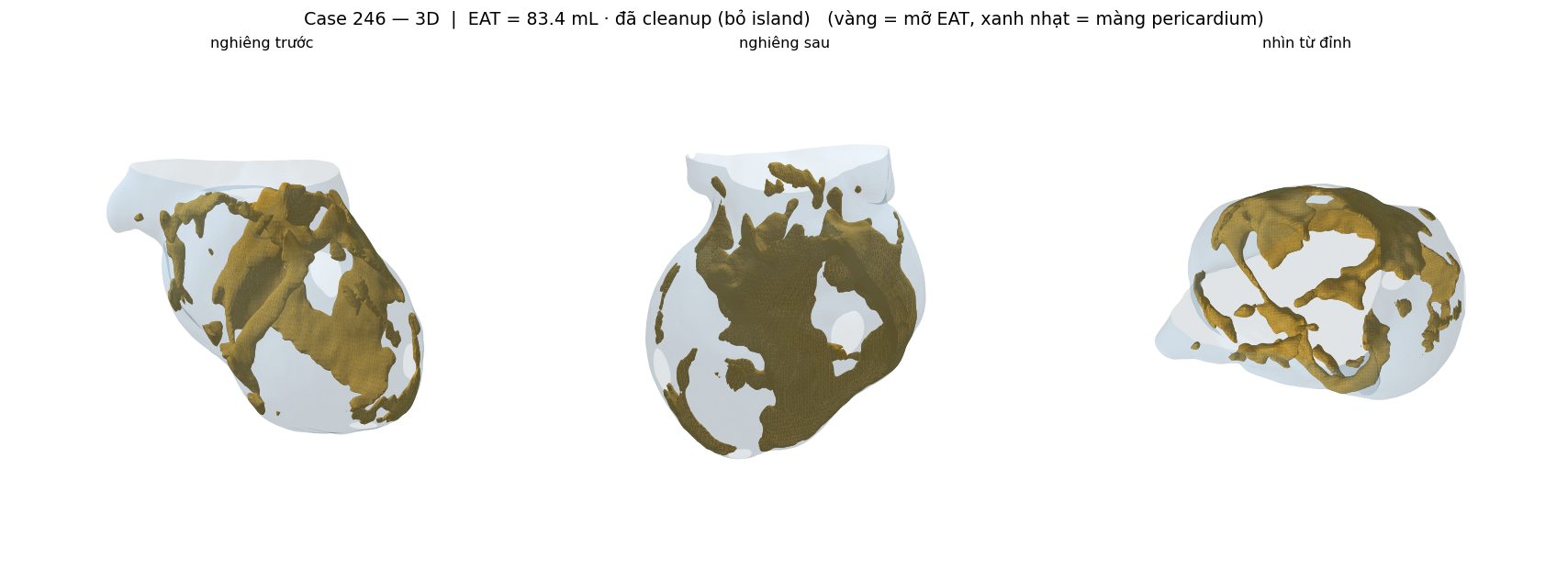

STU 246 — **Ca 246** · Dice(nnU↔STU) 0.9777 · ΔEAT +7.1 mL

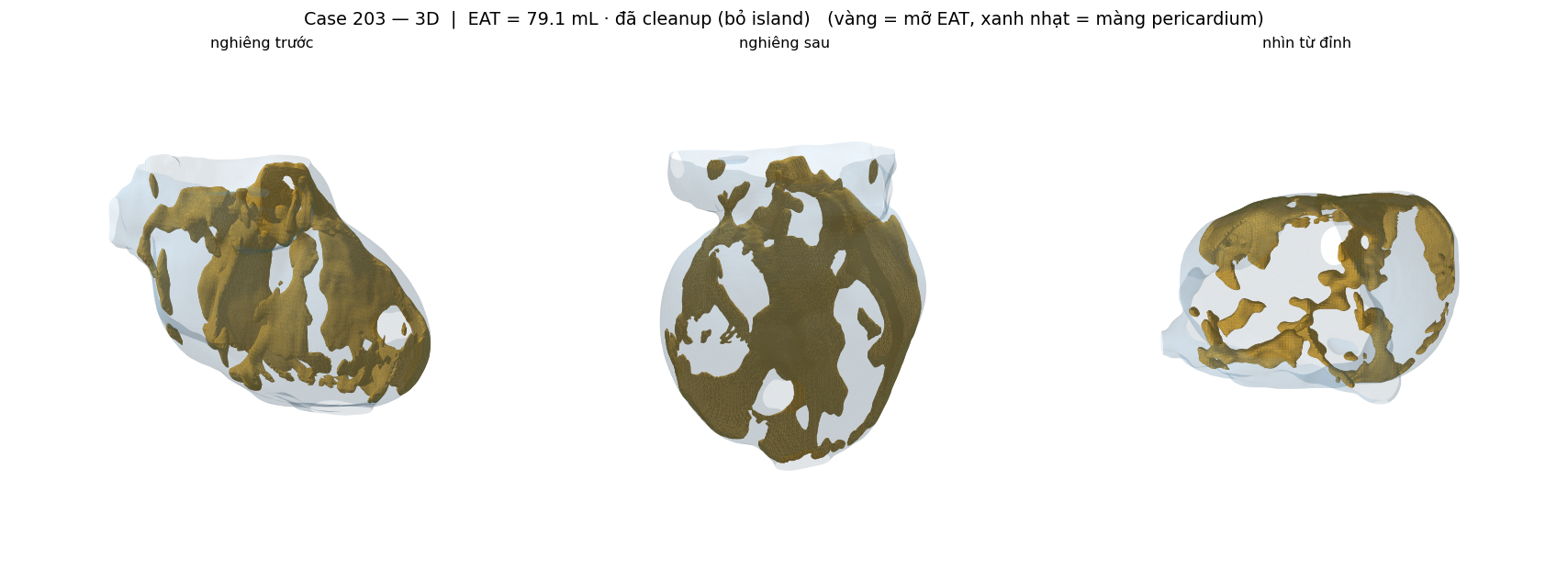

nnU 203 — **Ca 203** · Dice(nnU↔STU) 0.9804 · ΔEAT +6.7 mL

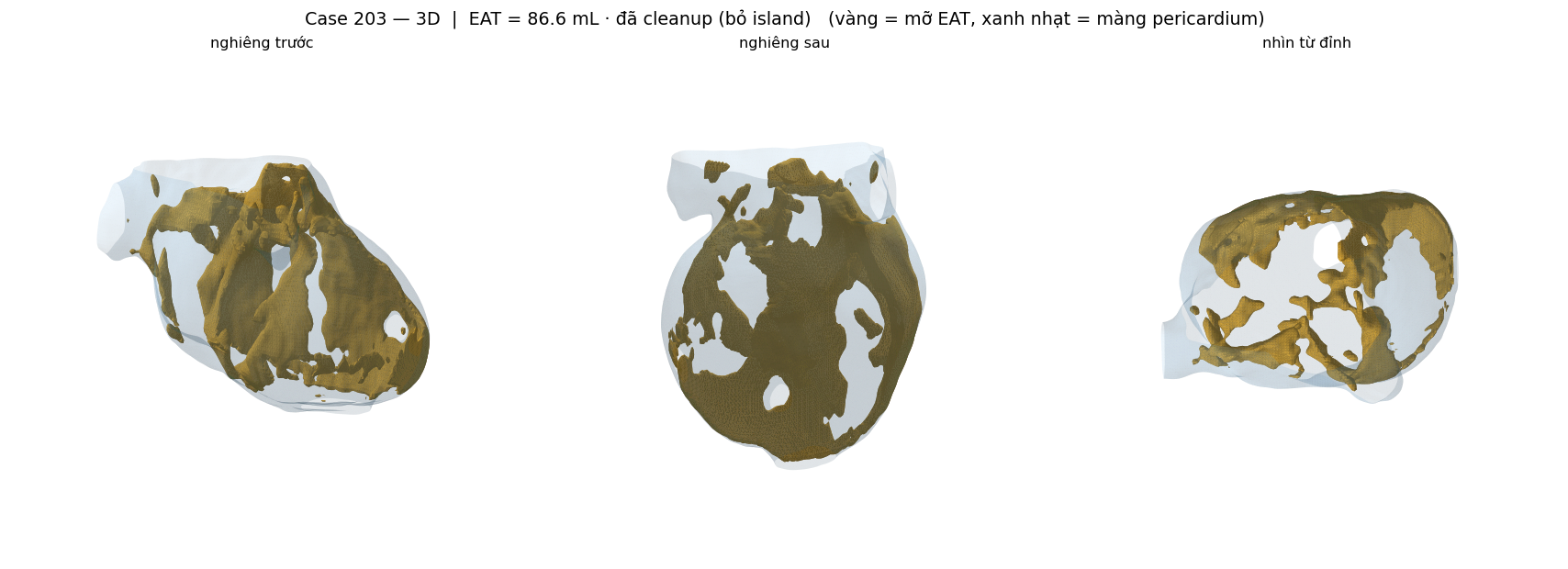

STU 203 — **Ca 203** · Dice(nnU↔STU) 0.9804 · ΔEAT +6.7 mL

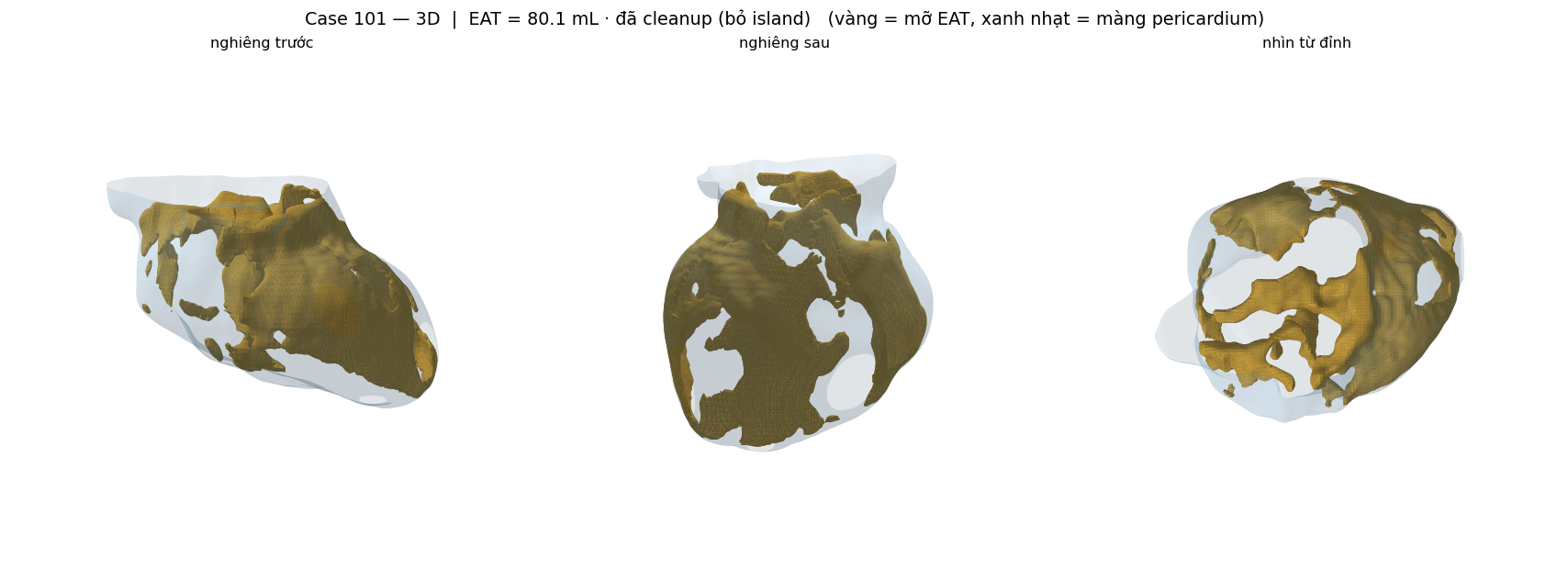

nnU 101 — **Ca 101** · Dice(nnU↔STU) 0.9726 · ΔEAT +7.4 mL

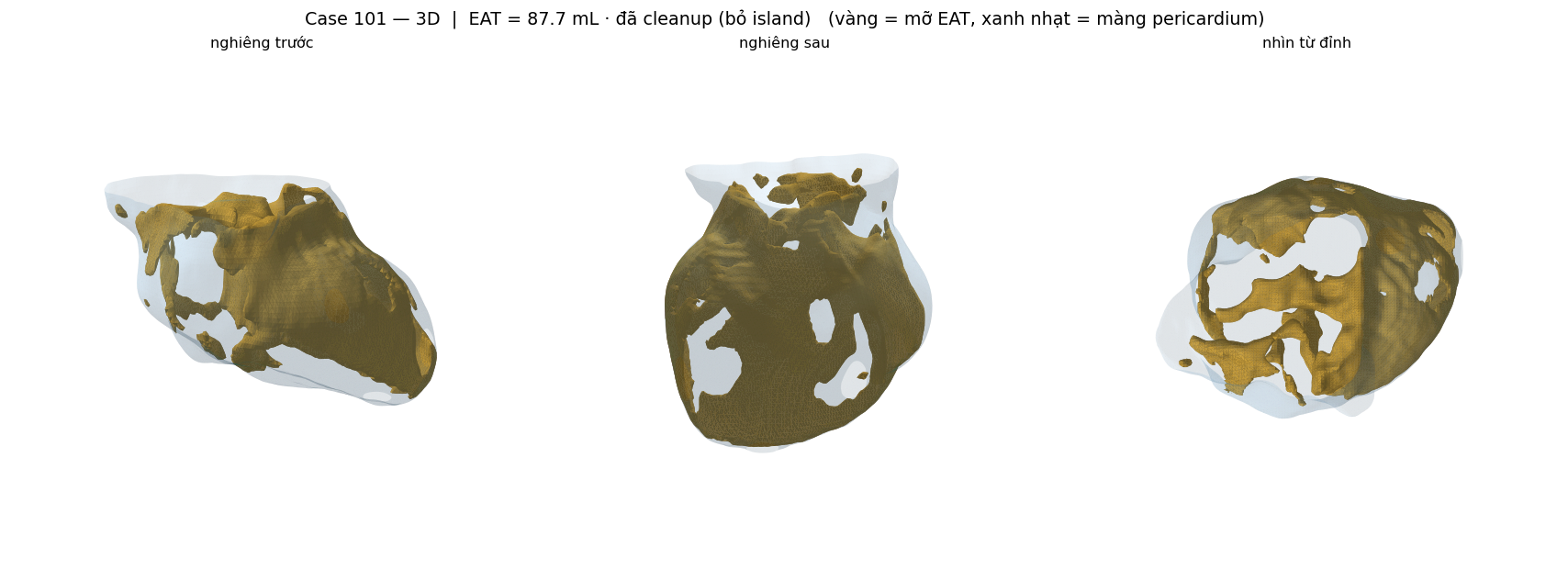

STU 101 — **Ca 101** · Dice(nnU↔STU) 0.9726 · ΔEAT +7.4 mL

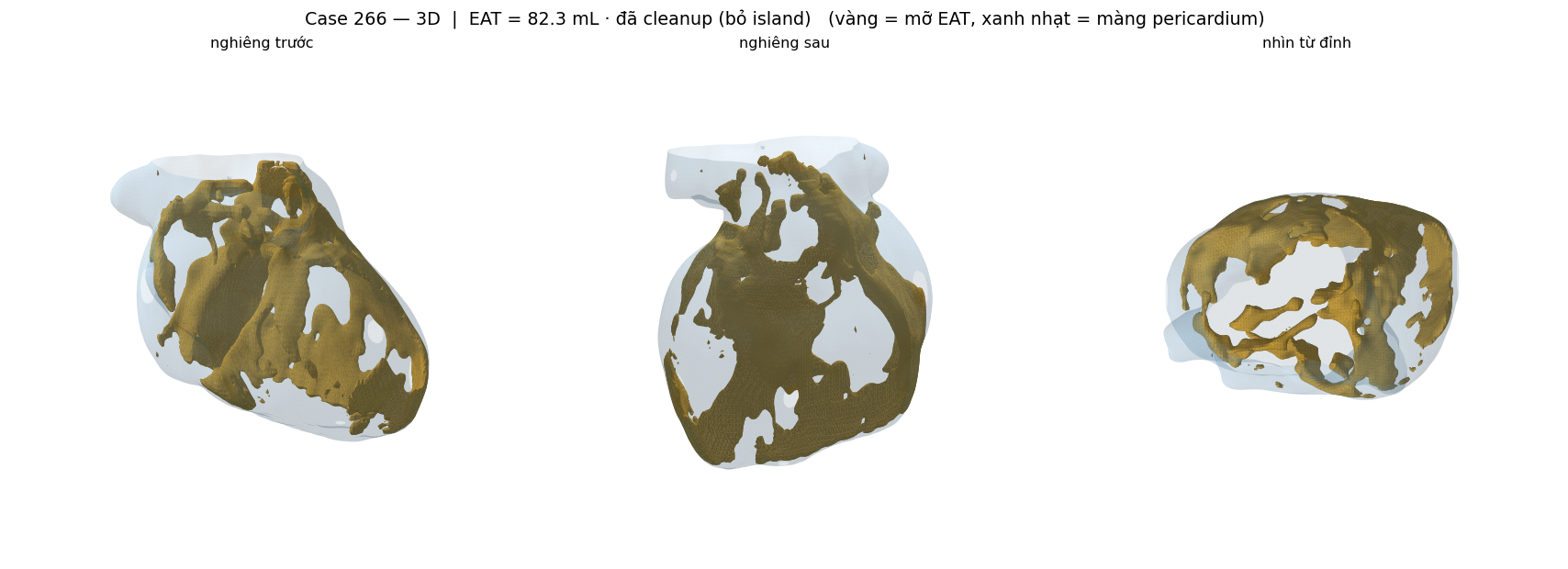

nnU 266 — **Ca 266** · Dice(nnU↔STU) 0.98 · ΔEAT +6.3 mL

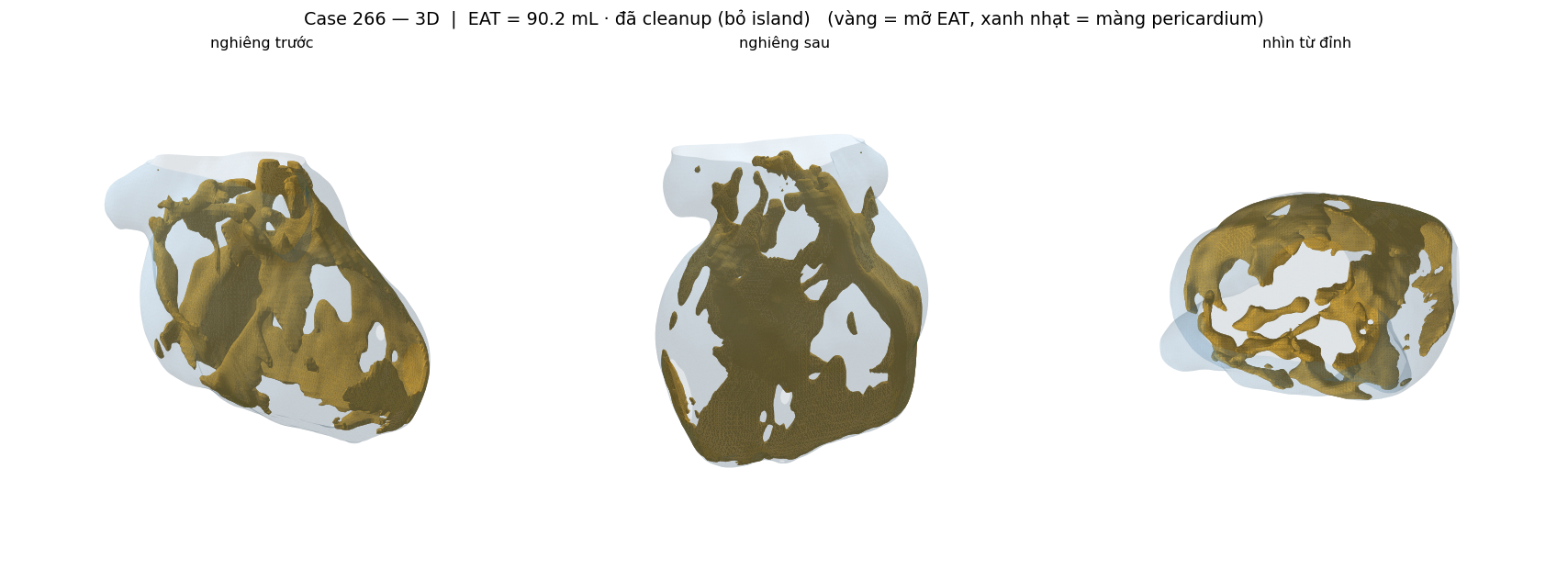

STU 266 — **Ca 266** · Dice(nnU↔STU) 0.98 · ΔEAT +6.3 mL

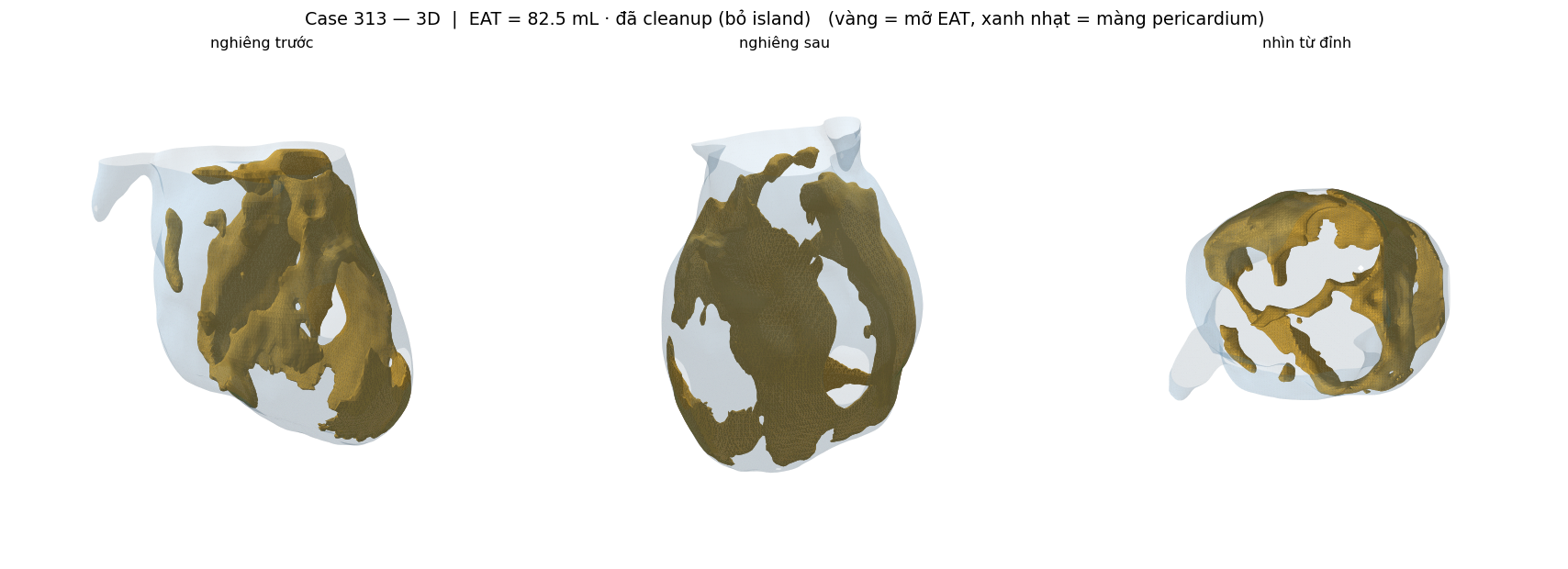

nnU 313 — **Ca 313** · Dice(nnU↔STU) 0.9791 · ΔEAT +6.6 mL

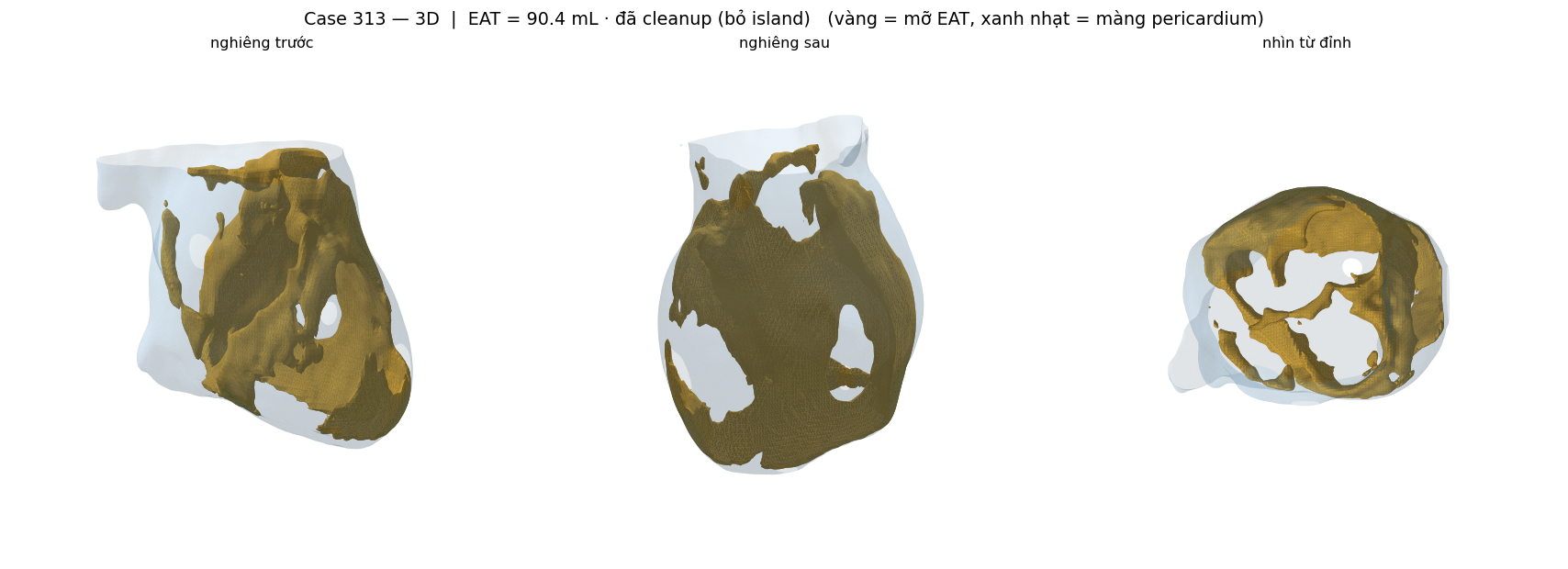

STU 313 — **Ca 313** · Dice(nnU↔STU) 0.9791 · ΔEAT +6.6 mL

nnU 157 — **Ca 157** · Dice(nnU↔STU) 0.9749 · ΔEAT +7.5 mL

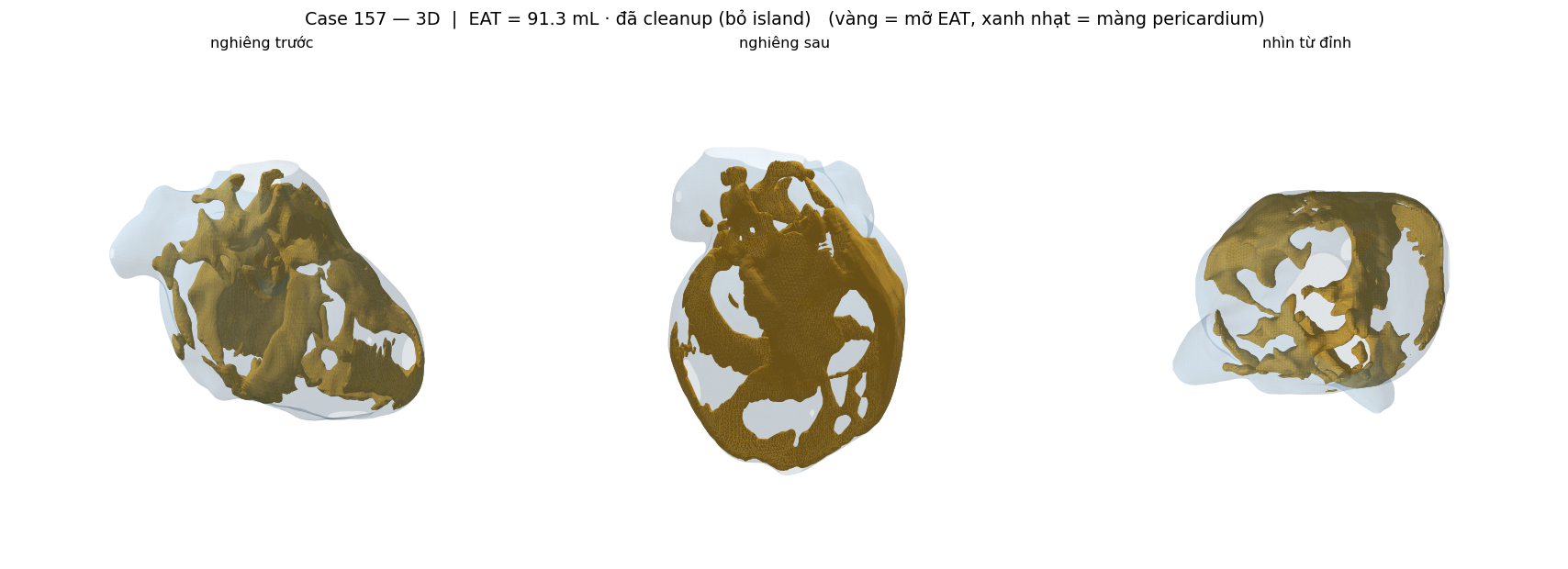

STU 157 — **Ca 157** · Dice(nnU↔STU) 0.9749 · ΔEAT +7.5 mL

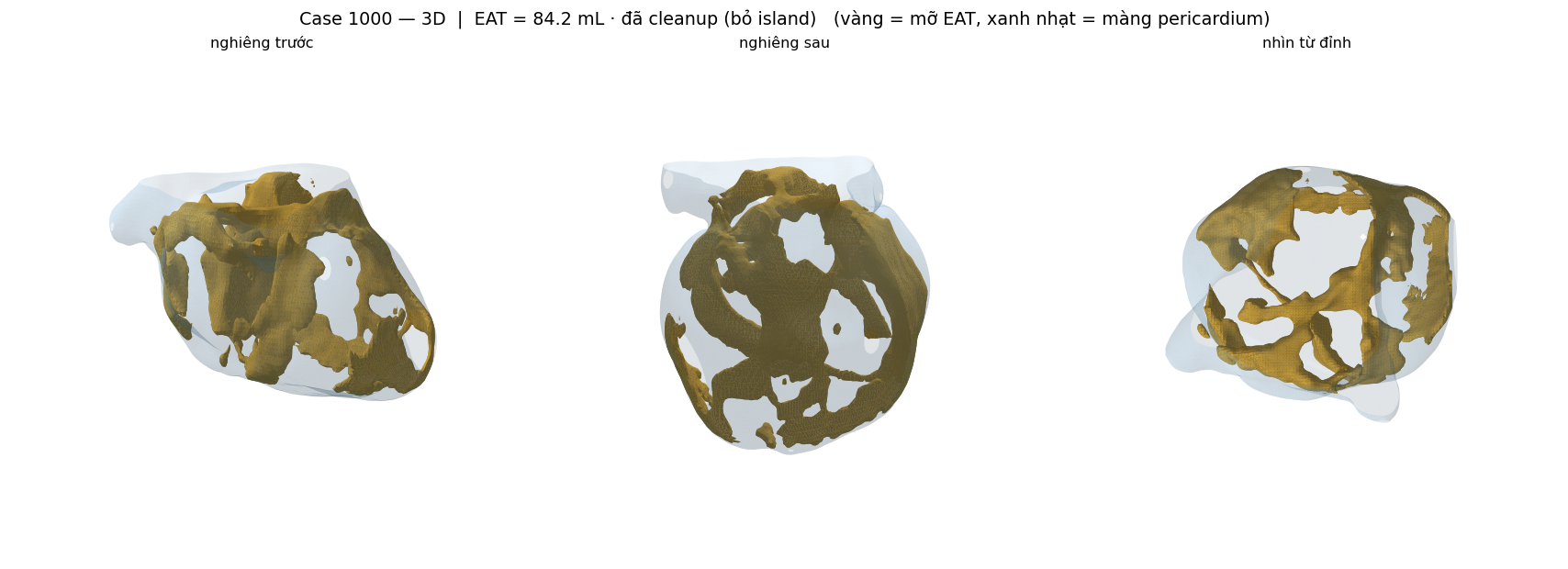

nnU 1000 — **Ca 1000** · Dice(nnU↔STU) 0.9818 · ΔEAT +6.0 mL

STU 1000 — **Ca 1000** · Dice(nnU↔STU) 0.9818 · ΔEAT +6.0 mL

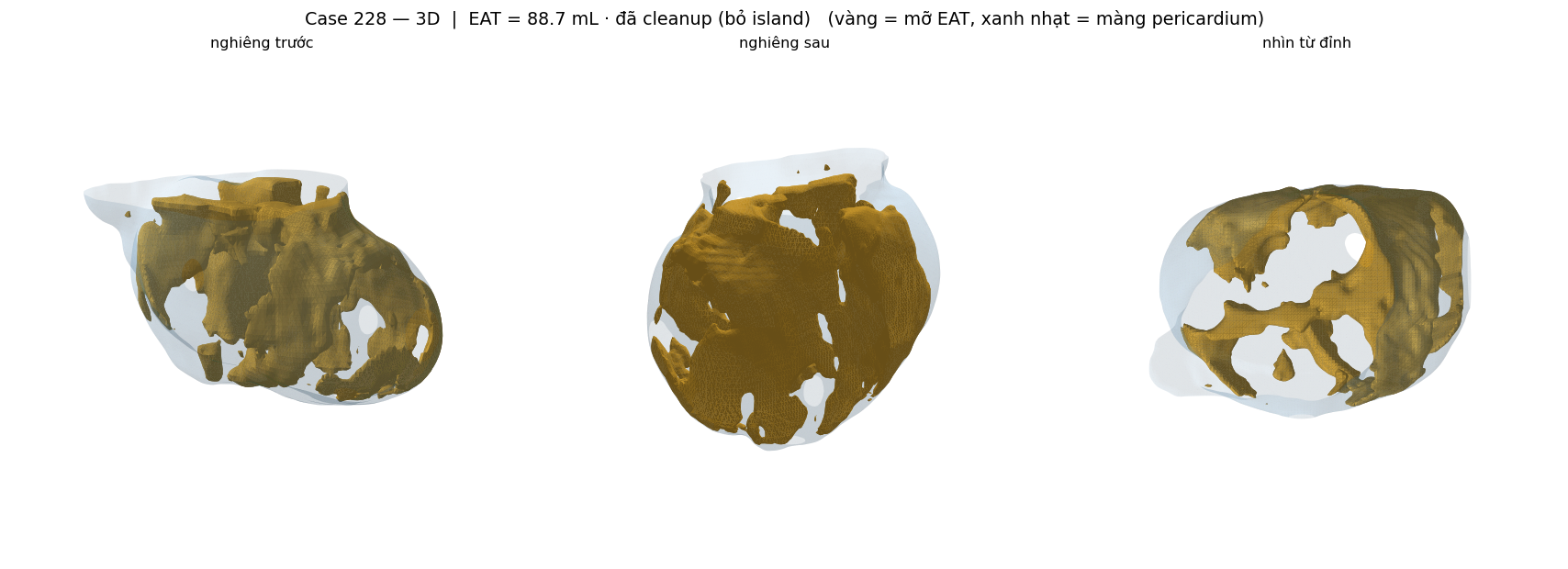

nnU 228 — **Ca 228** · Dice(nnU↔STU) 0.9814 · ΔEAT +6.1 mL

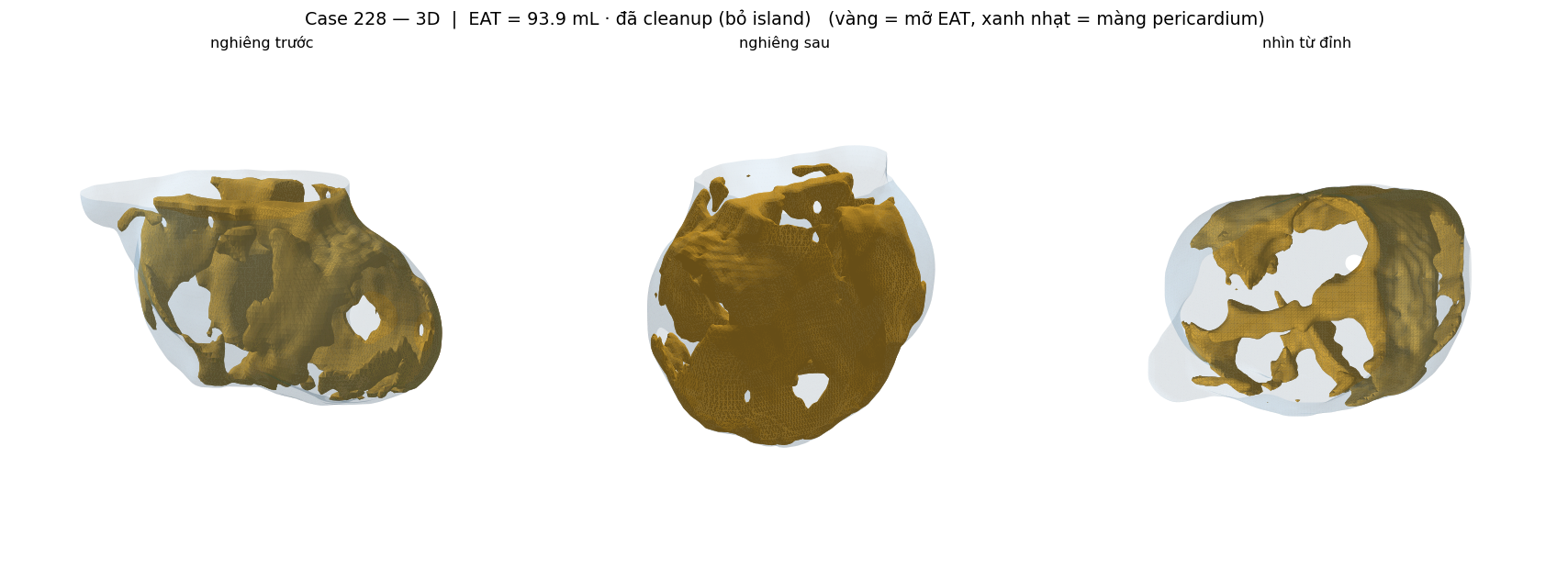

STU 228 — **Ca 228** · Dice(nnU↔STU) 0.9814 · ΔEAT +6.1 mL

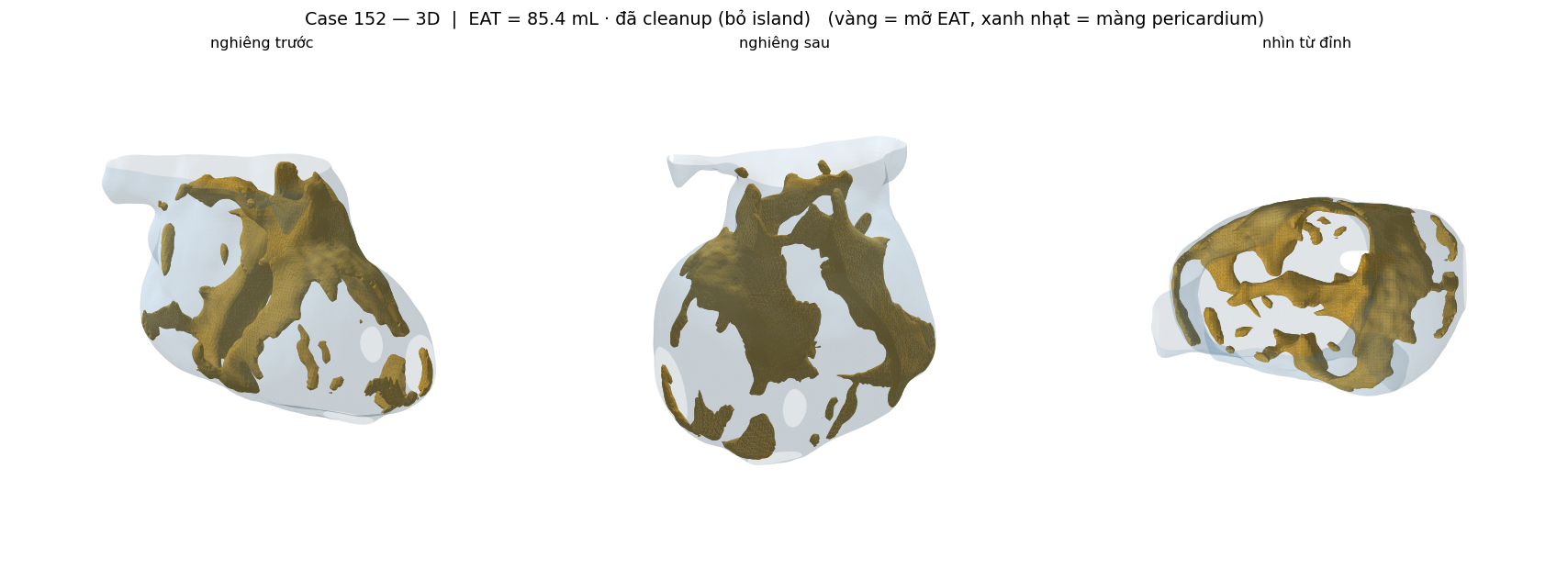

nnU 152 — **Ca 152** · Dice(nnU↔STU) 0.9777 · ΔEAT +7.1 mL

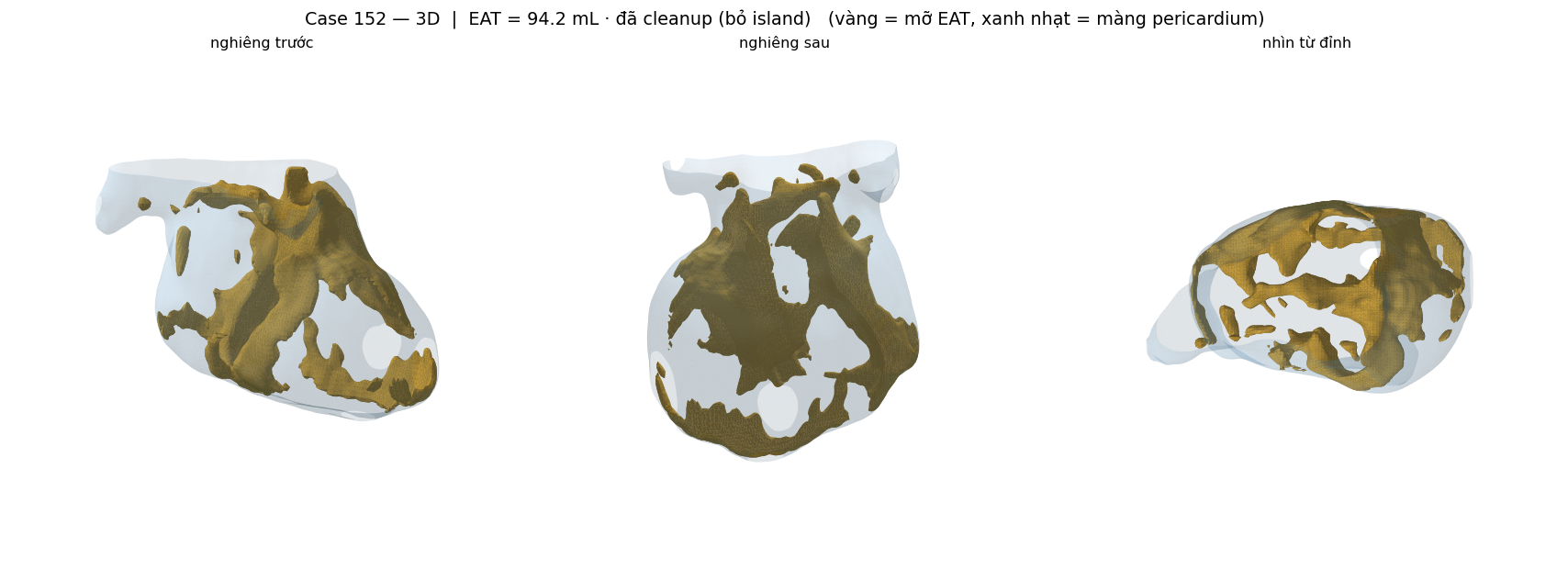

STU 152 — **Ca 152** · Dice(nnU↔STU) 0.9777 · ΔEAT +7.1 mL

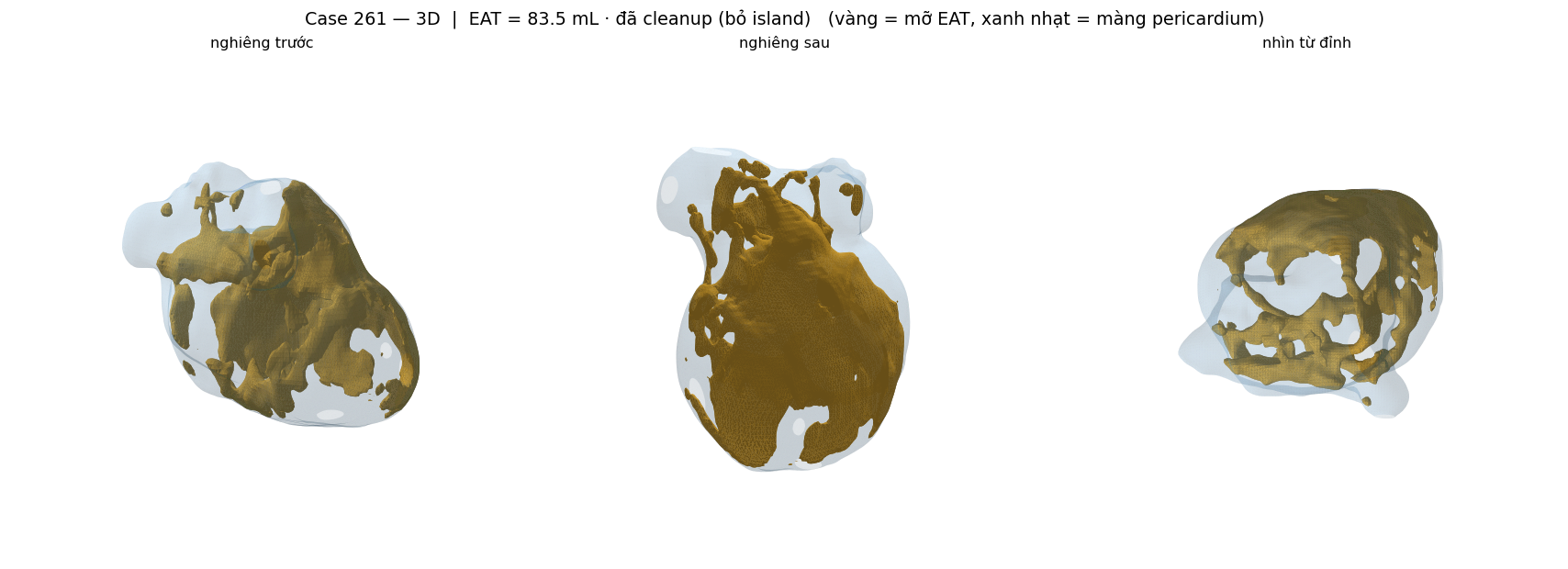

nnU 261 — **Ca 261** · Dice(nnU↔STU) 0.9551 · ΔEAT +11.3 mL

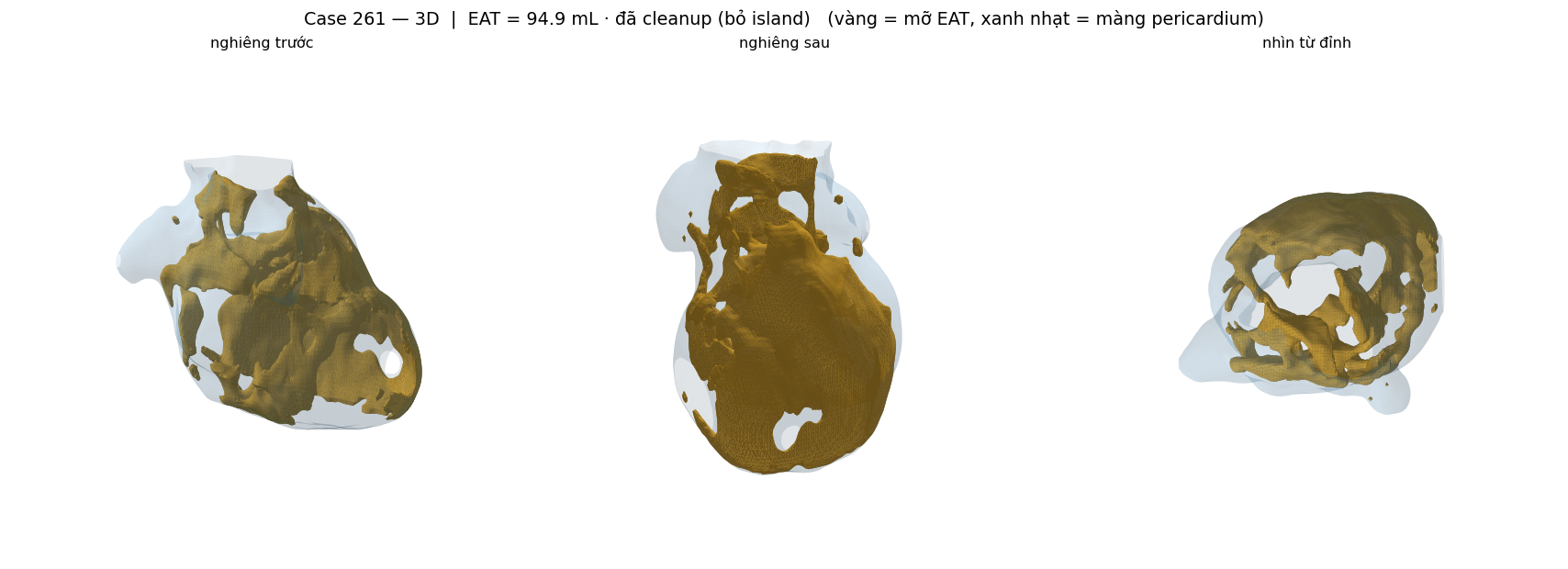

STU 261 — **Ca 261** · Dice(nnU↔STU) 0.9551 · ΔEAT +11.3 mL

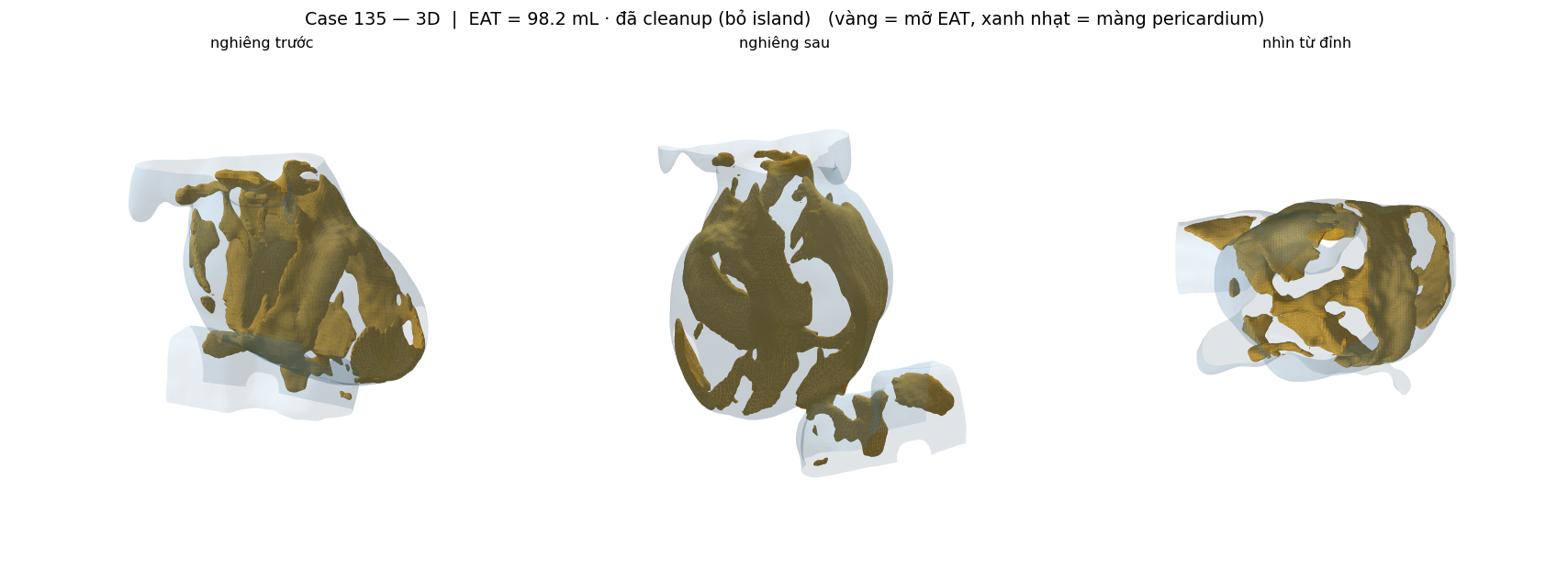

nnU 135 — **Ca 135** · Dice(nnU↔STU) 0.9802 · ΔEAT +4.9 mL

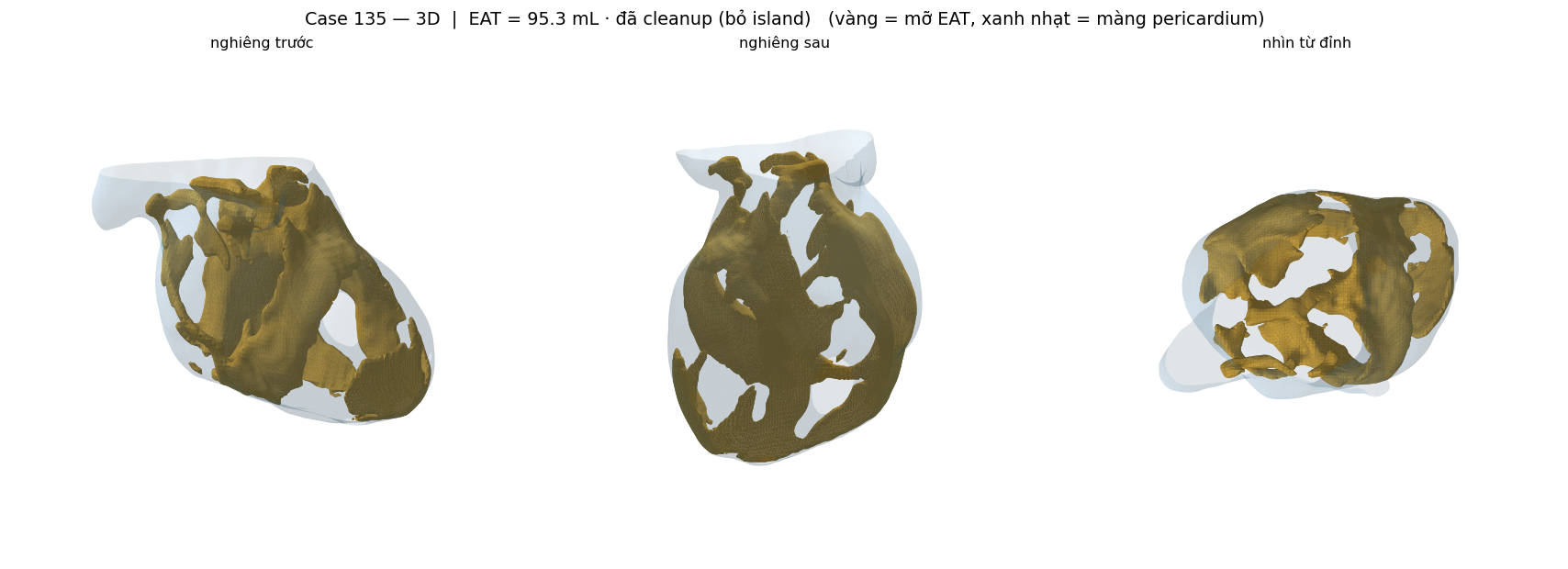

STU 135 — **Ca 135** · Dice(nnU↔STU) 0.9802 · ΔEAT +4.9 mL

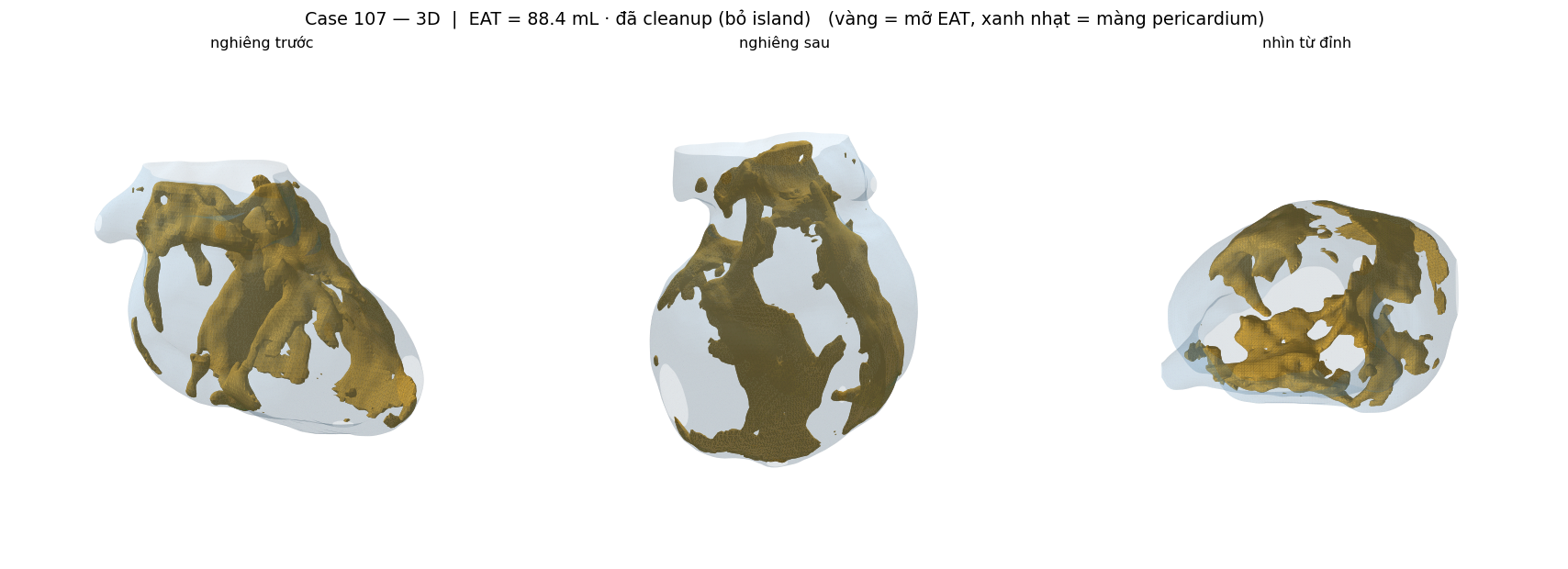

nnU 107 — **Ca 107** · Dice(nnU↔STU) 0.9785 · ΔEAT +8.7 mL

STU 107 — **Ca 107** · Dice(nnU↔STU) 0.9785 · ΔEAT +8.7 mL

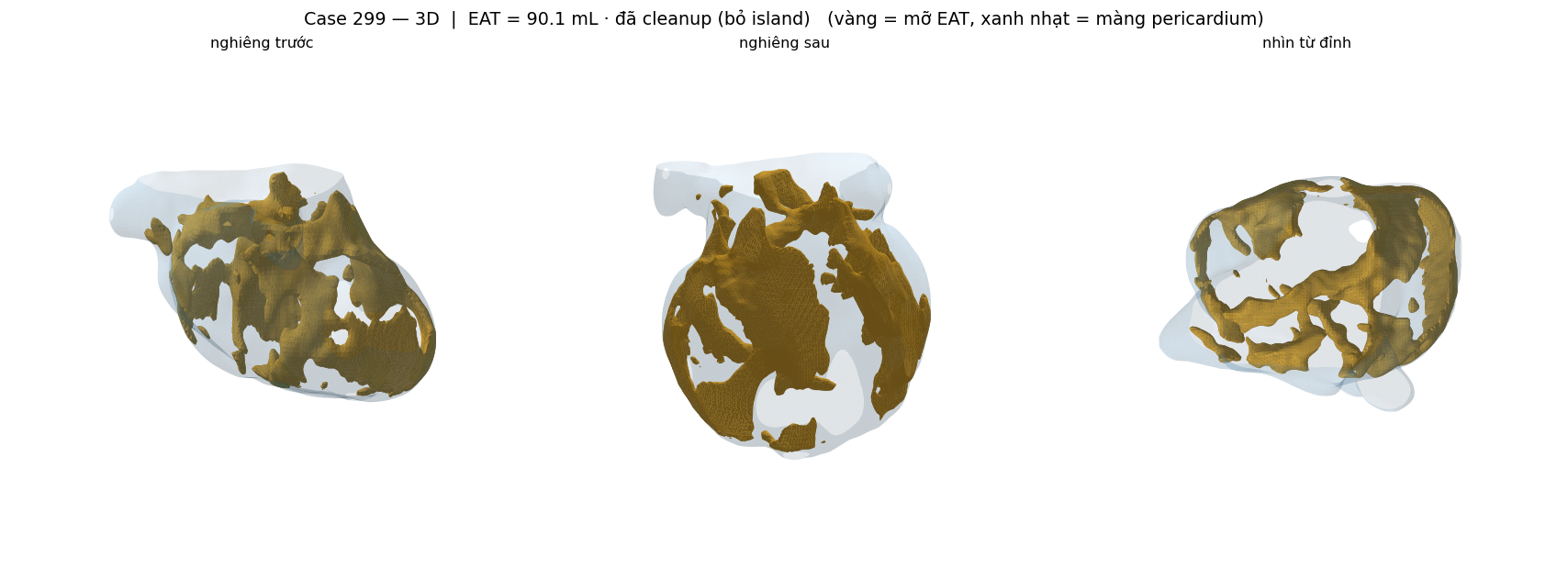

nnU 299 — **Ca 299** · Dice(nnU↔STU) 0.9781 · ΔEAT +9.1 mL

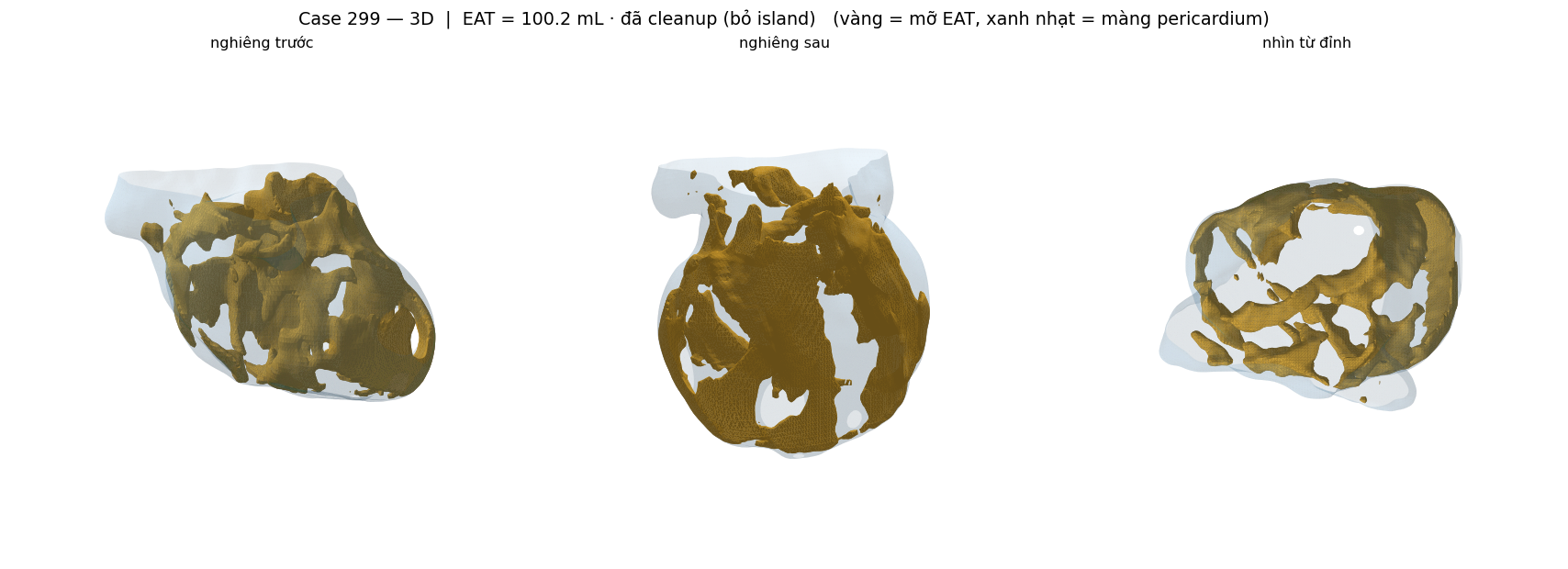

STU 299 — **Ca 299** · Dice(nnU↔STU) 0.9781 · ΔEAT +9.1 mL

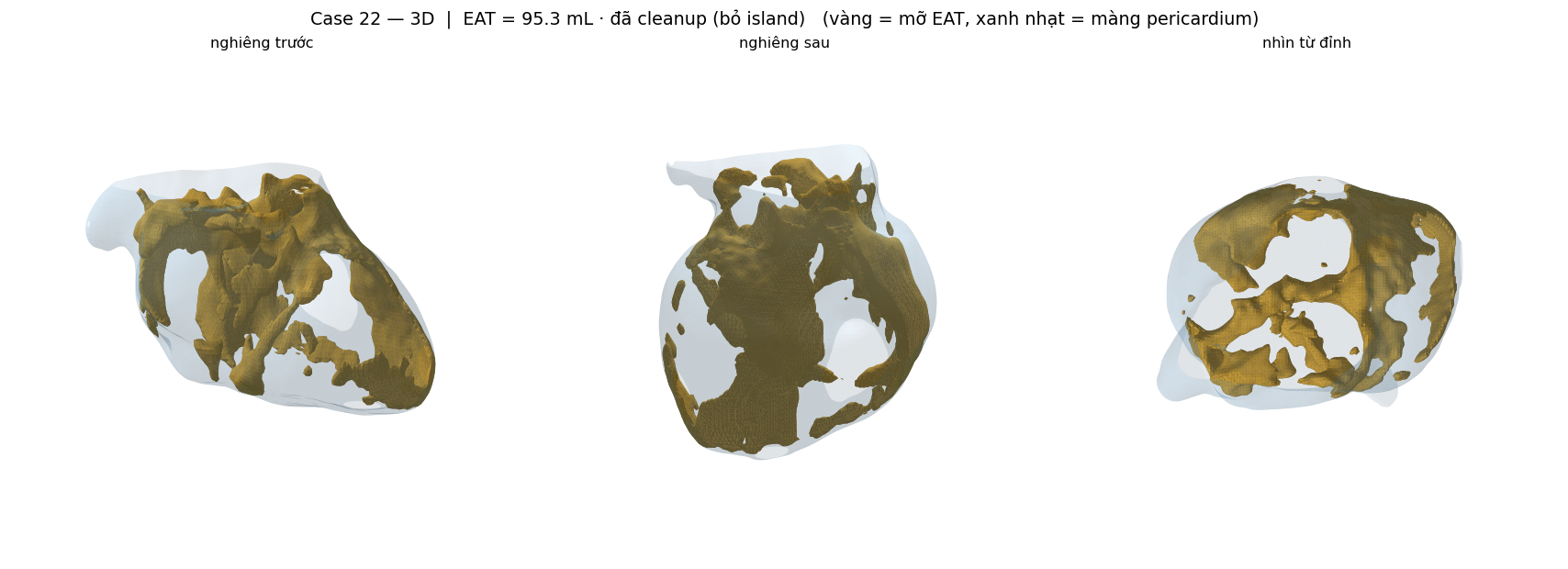

nnU 22 — **Ca 22** · Dice(nnU↔STU) 0.9824 · ΔEAT +7.1 mL

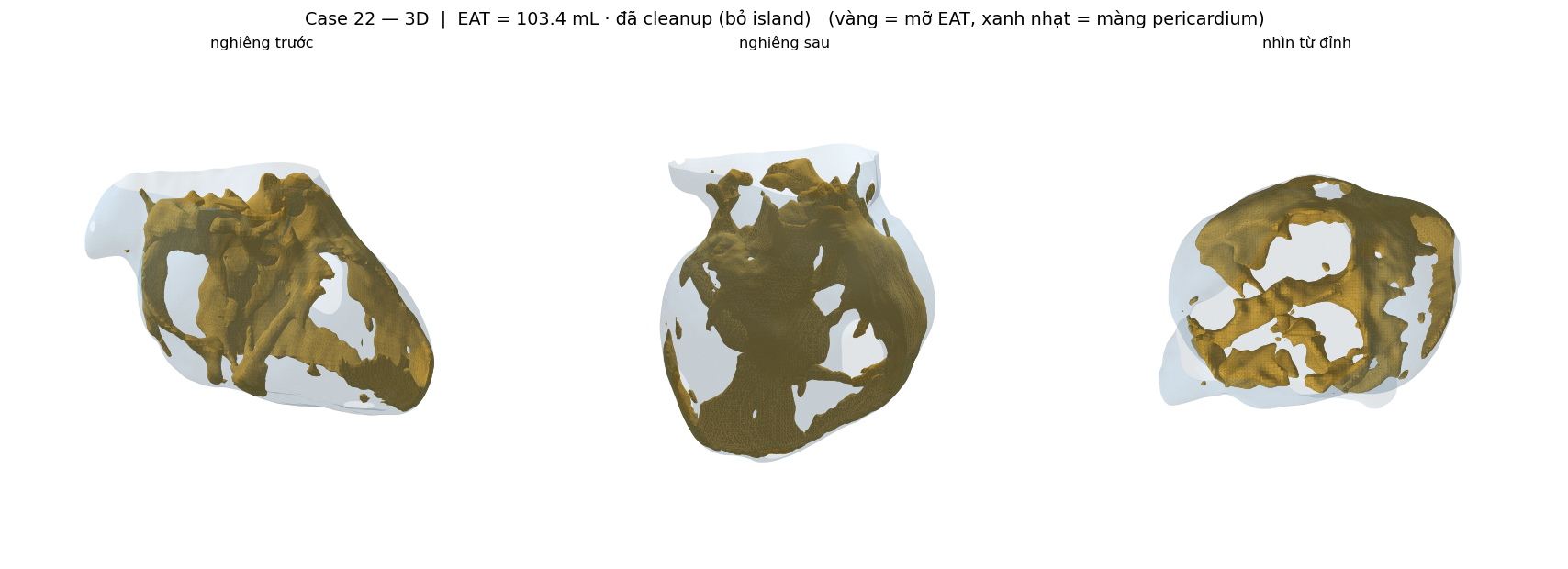

STU 22 — **Ca 22** · Dice(nnU↔STU) 0.9824 · ΔEAT +7.1 mL

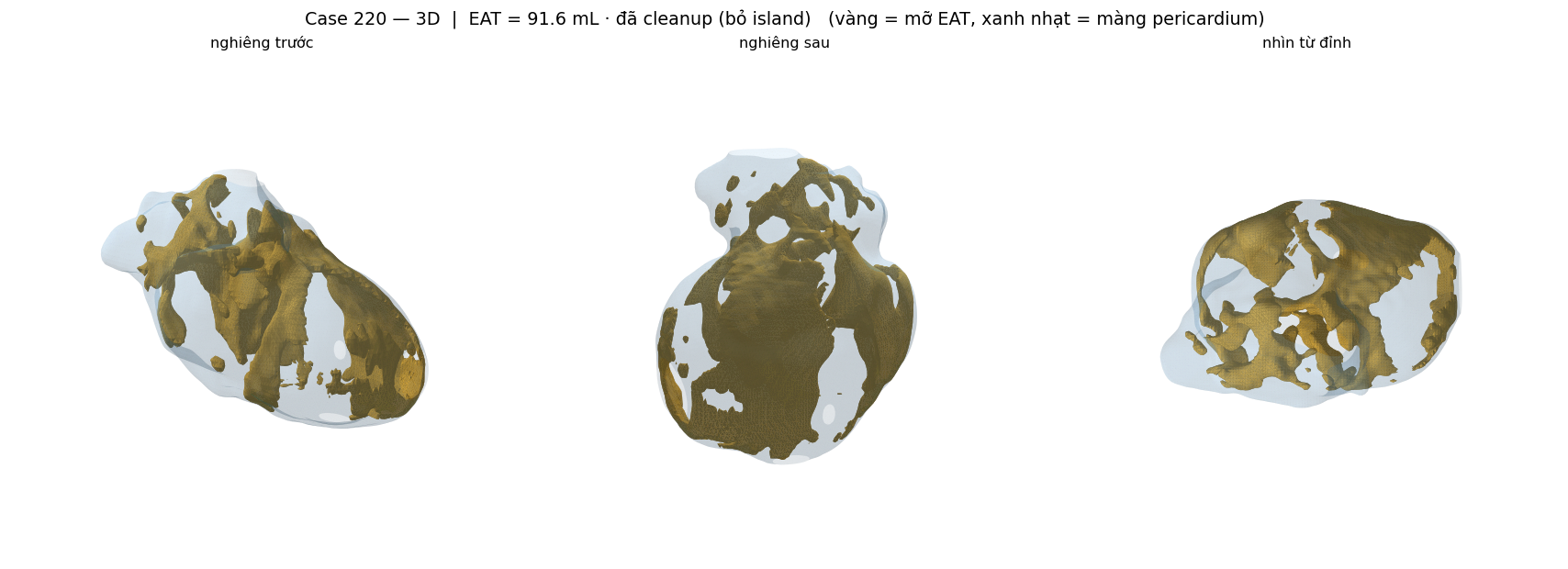

nnU 220 — **Ca 220** · Dice(nnU↔STU) 0.9662 · ΔEAT +12.1 mL

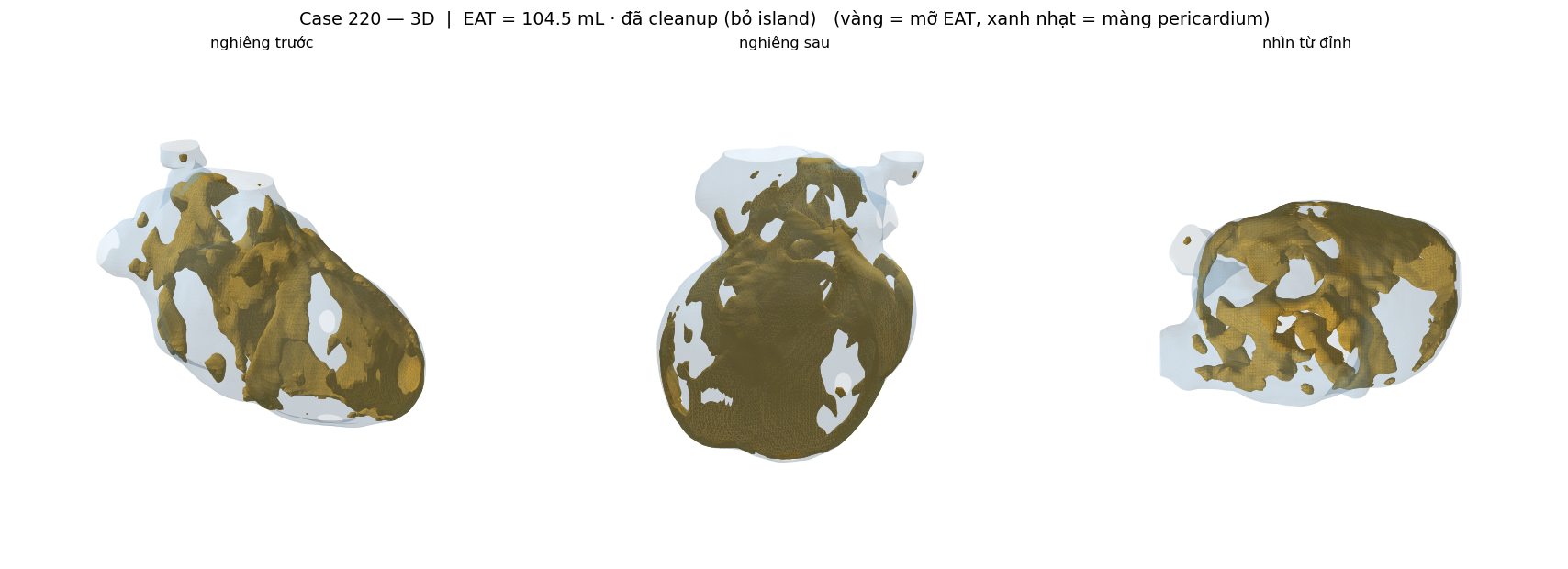

STU 220 — **Ca 220** · Dice(nnU↔STU) 0.9662 · ΔEAT +12.1 mL

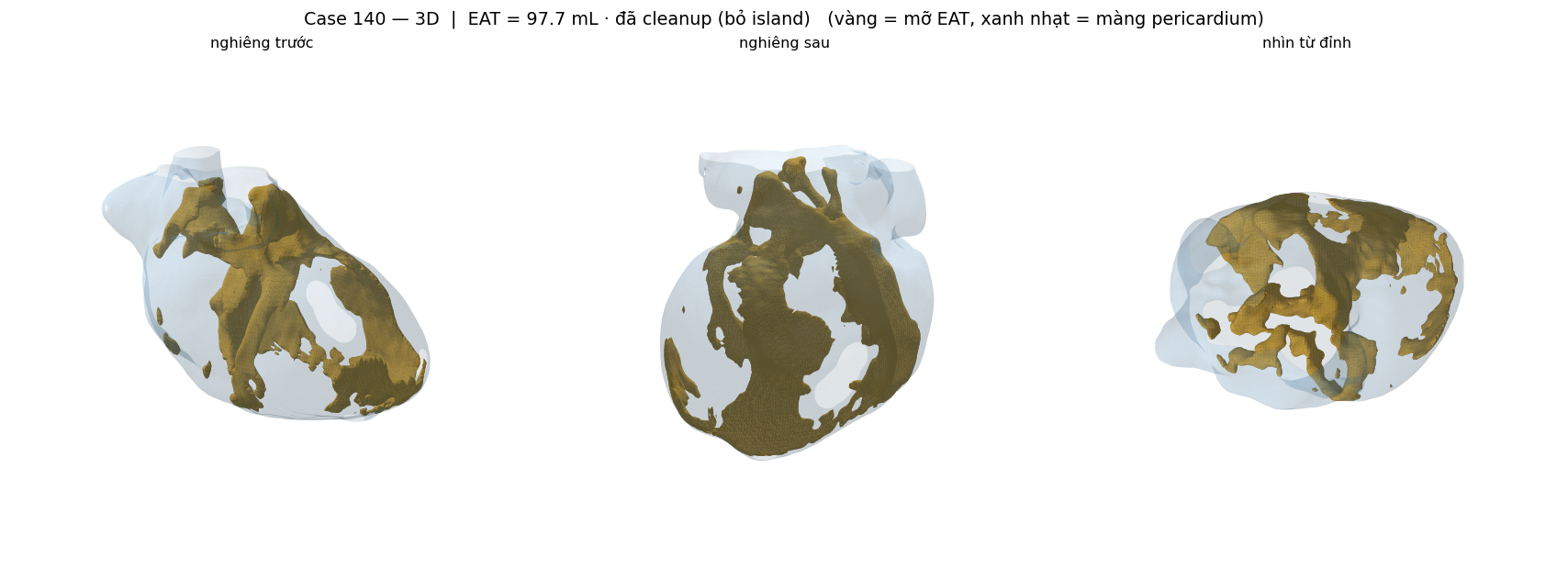

nnU 140 — **Ca 140** · Dice(nnU↔STU) 0.973 · ΔEAT +7.5 mL

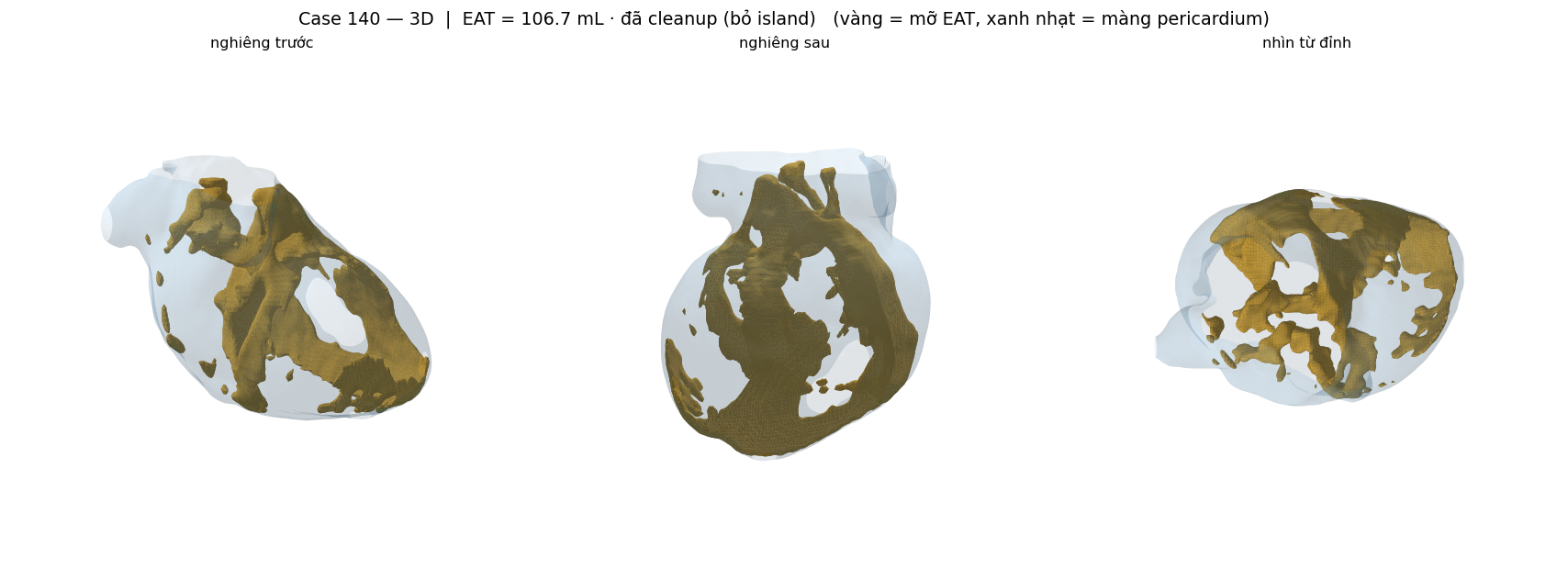

STU 140 — **Ca 140** · Dice(nnU↔STU) 0.973 · ΔEAT +7.5 mL

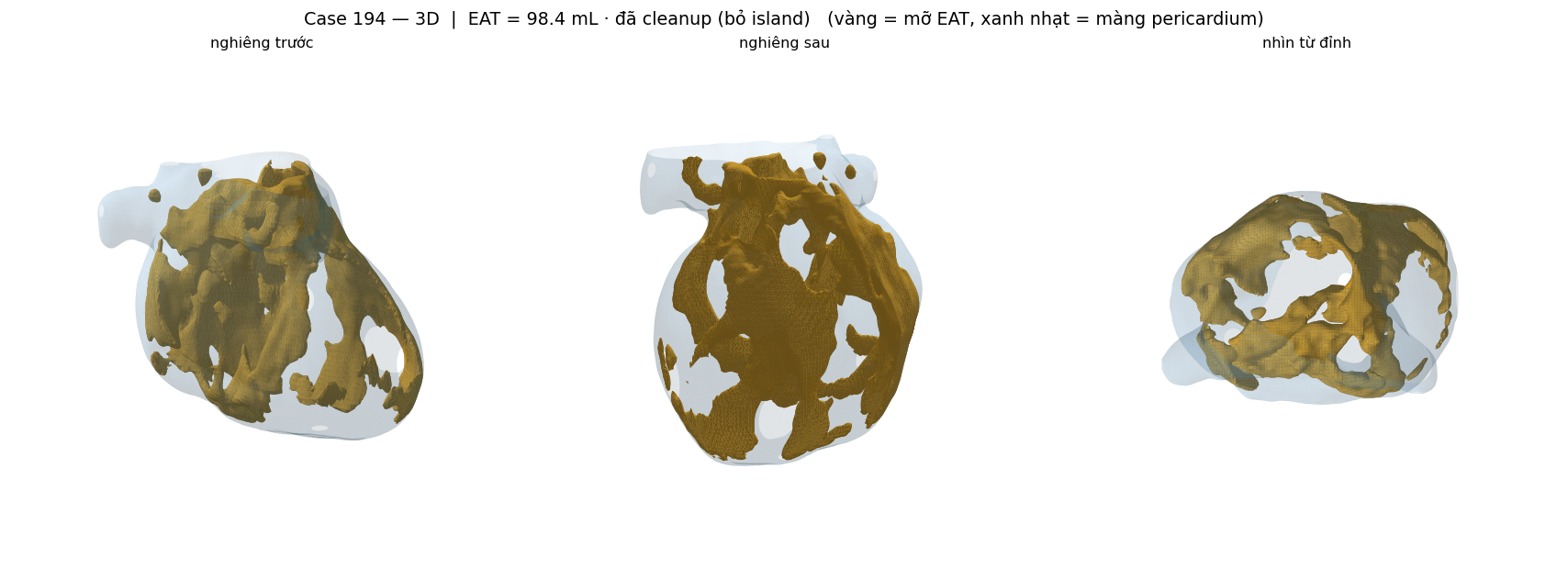

nnU 194 — **Ca 194** · Dice(nnU↔STU) 0.9793 · ΔEAT +8.4 mL

STU 194 — **Ca 194** · Dice(nnU↔STU) 0.9793 · ΔEAT +8.4 mL

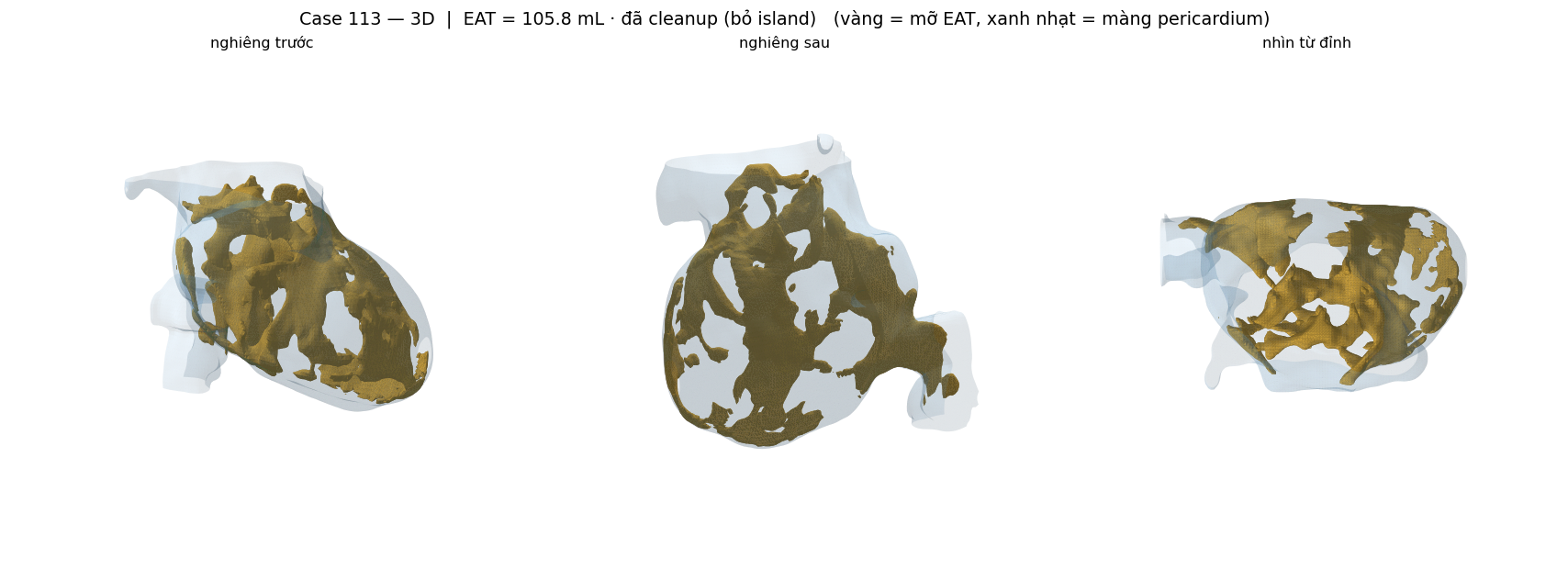

nnU 113 — **Ca 113** · Dice(nnU↔STU) 0.9685 · ΔEAT +3.0 mL

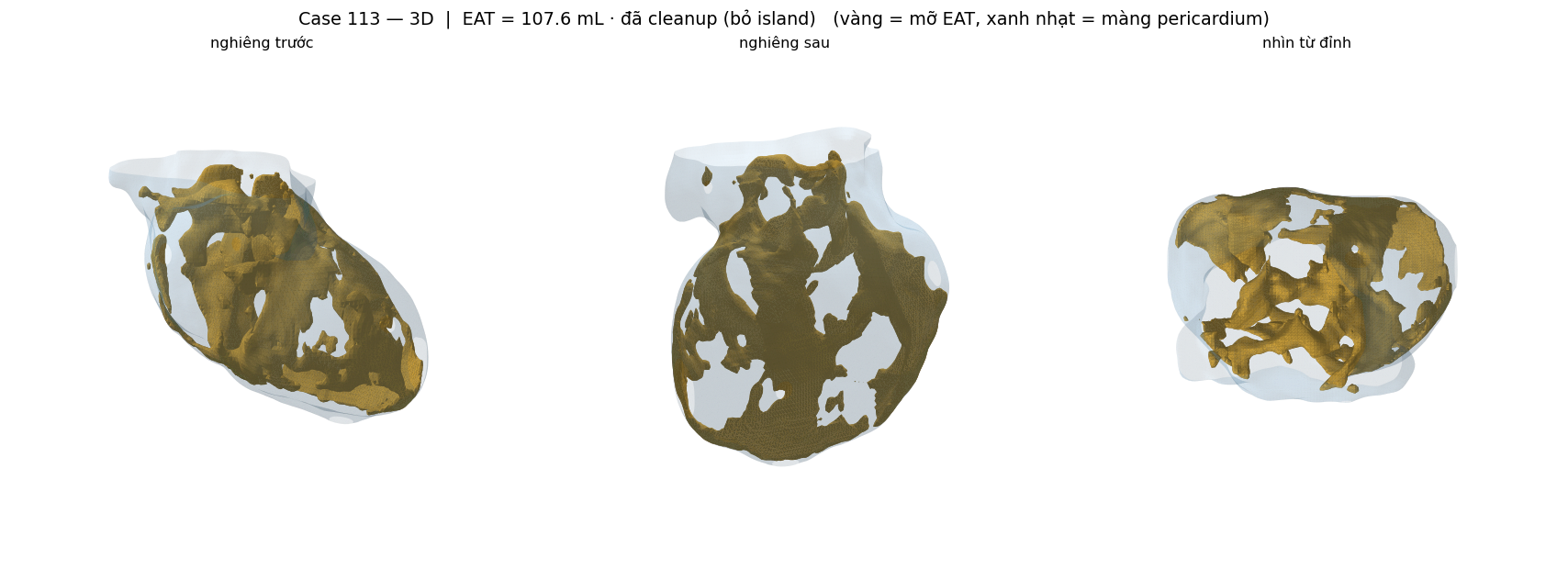

STU 113 — **Ca 113** · Dice(nnU↔STU) 0.9685 · ΔEAT +3.0 mL

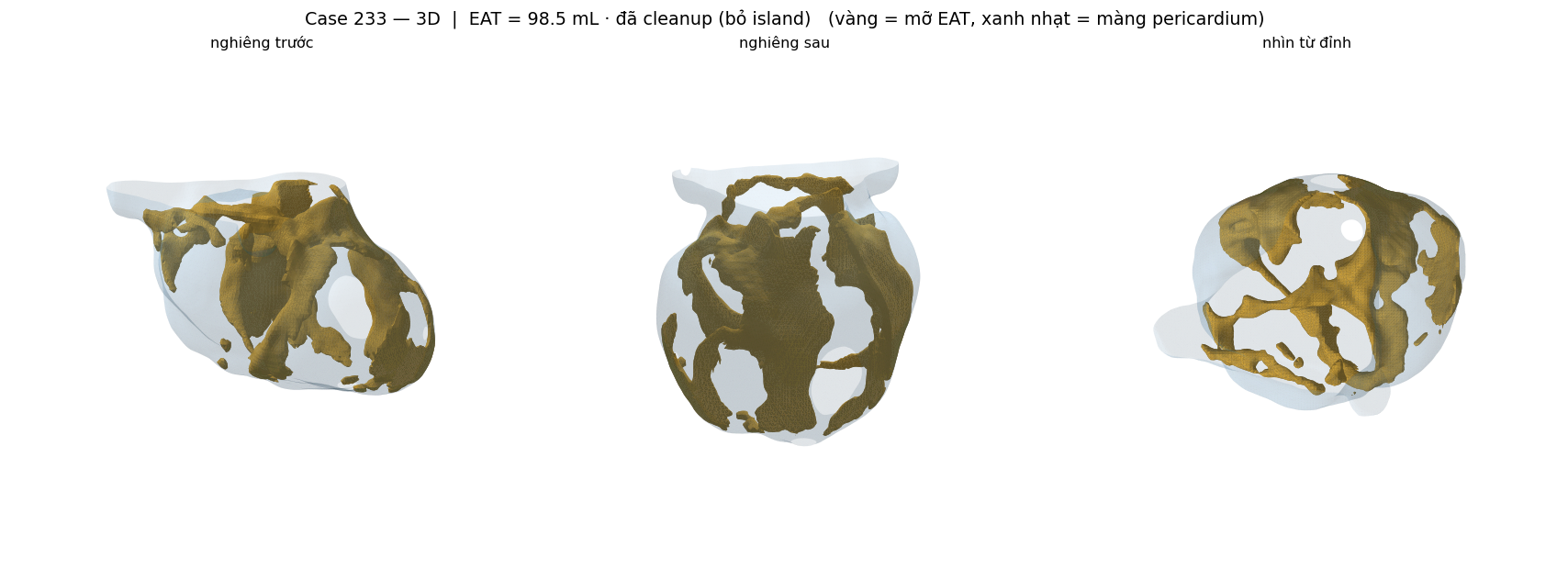

nnU 233 — **Ca 233** · Dice(nnU↔STU) 0.982 · ΔEAT +9.4 mL

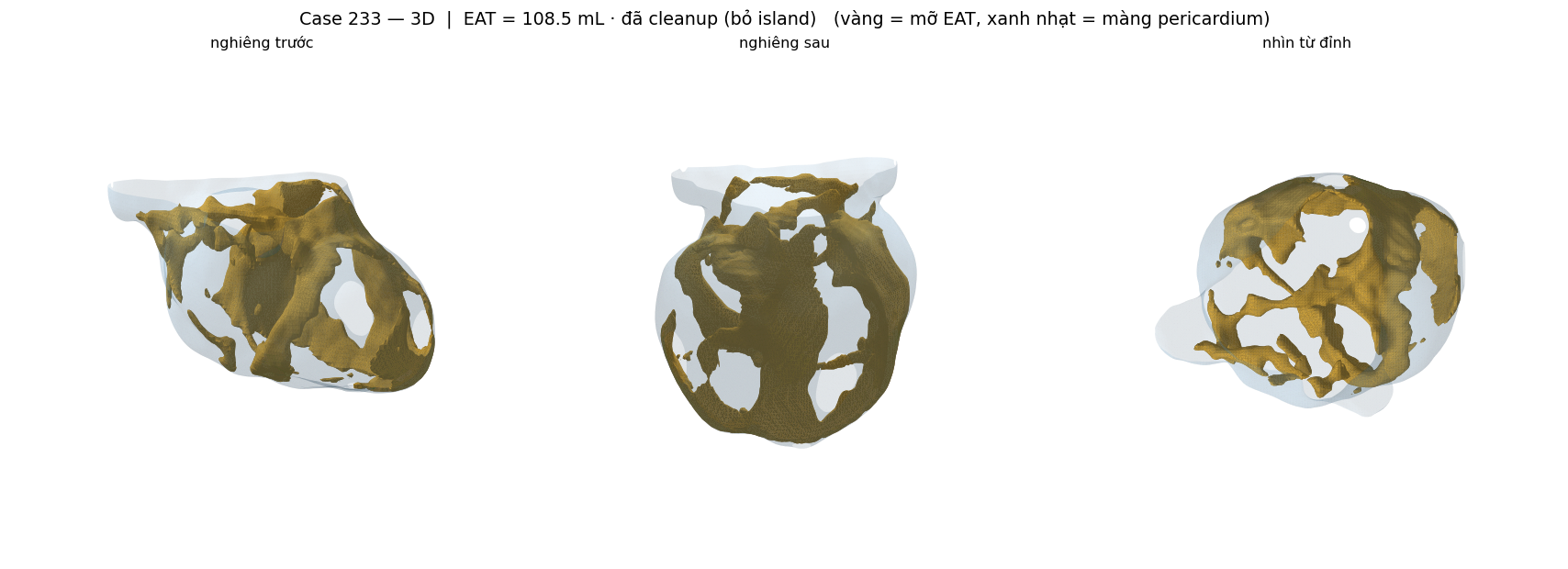

STU 233 — **Ca 233** · Dice(nnU↔STU) 0.982 · ΔEAT +9.4 mL

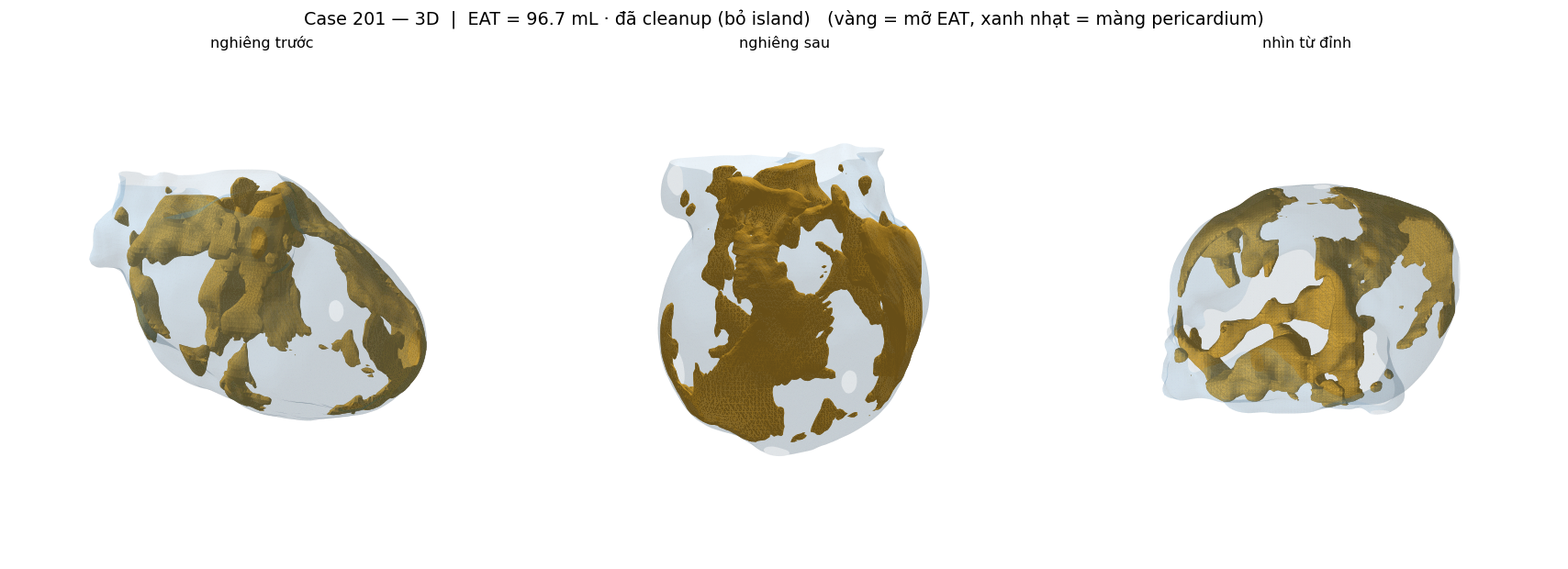

nnU 201 — **Ca 201** · Dice(nnU↔STU) 0.9776 · ΔEAT +10.6 mL

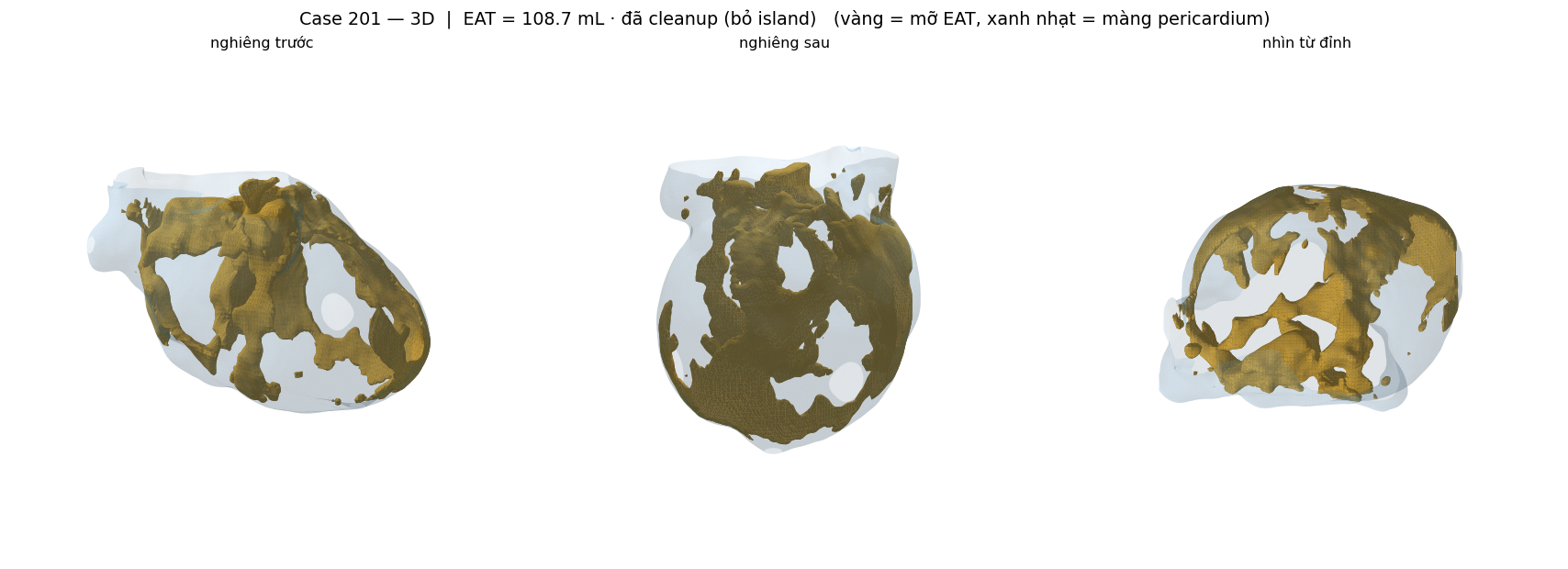

STU 201 — **Ca 201** · Dice(nnU↔STU) 0.9776 · ΔEAT +10.6 mL

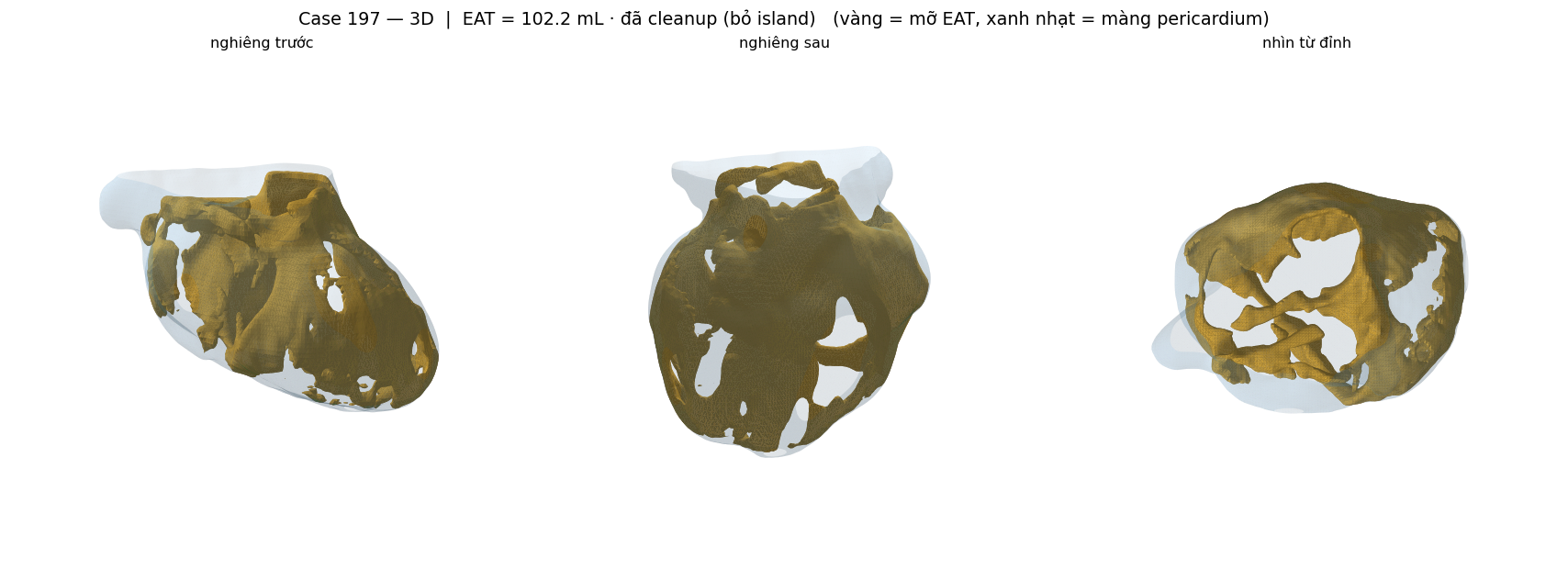

nnU 197 — **Ca 197** · Dice(nnU↔STU) 0.9806 · ΔEAT +8.4 mL

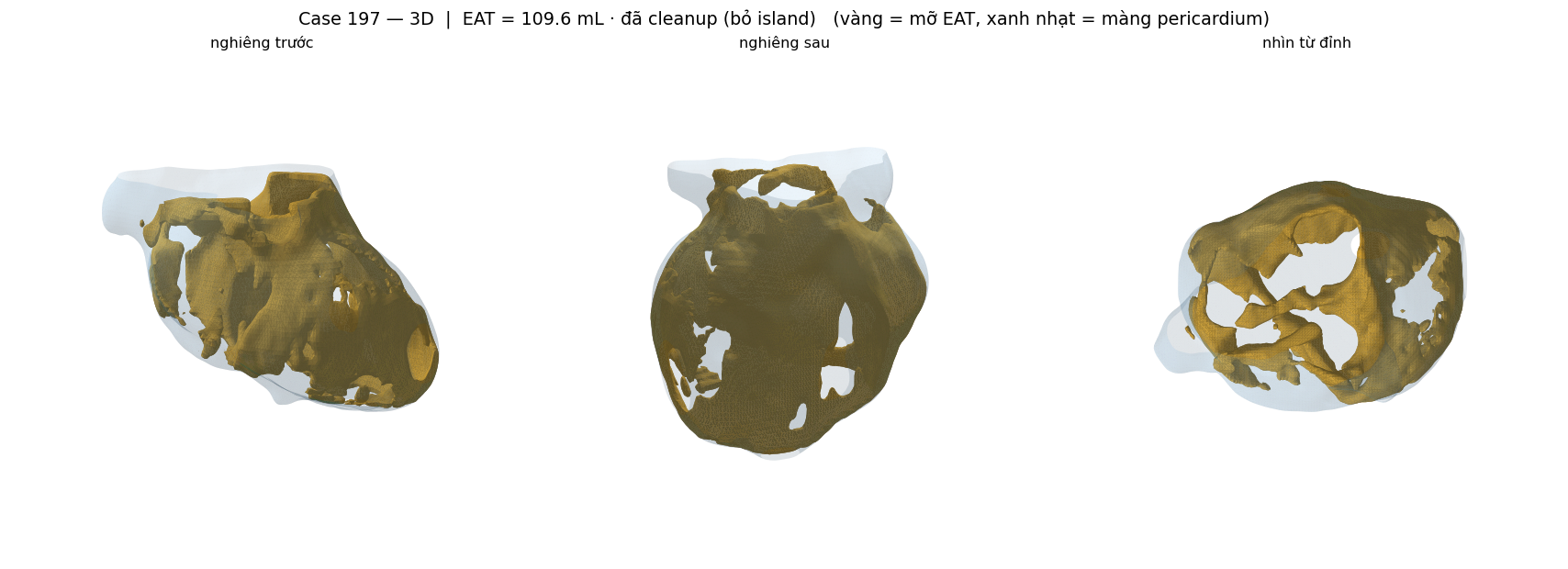

STU 197 — **Ca 197** · Dice(nnU↔STU) 0.9806 · ΔEAT +8.4 mL

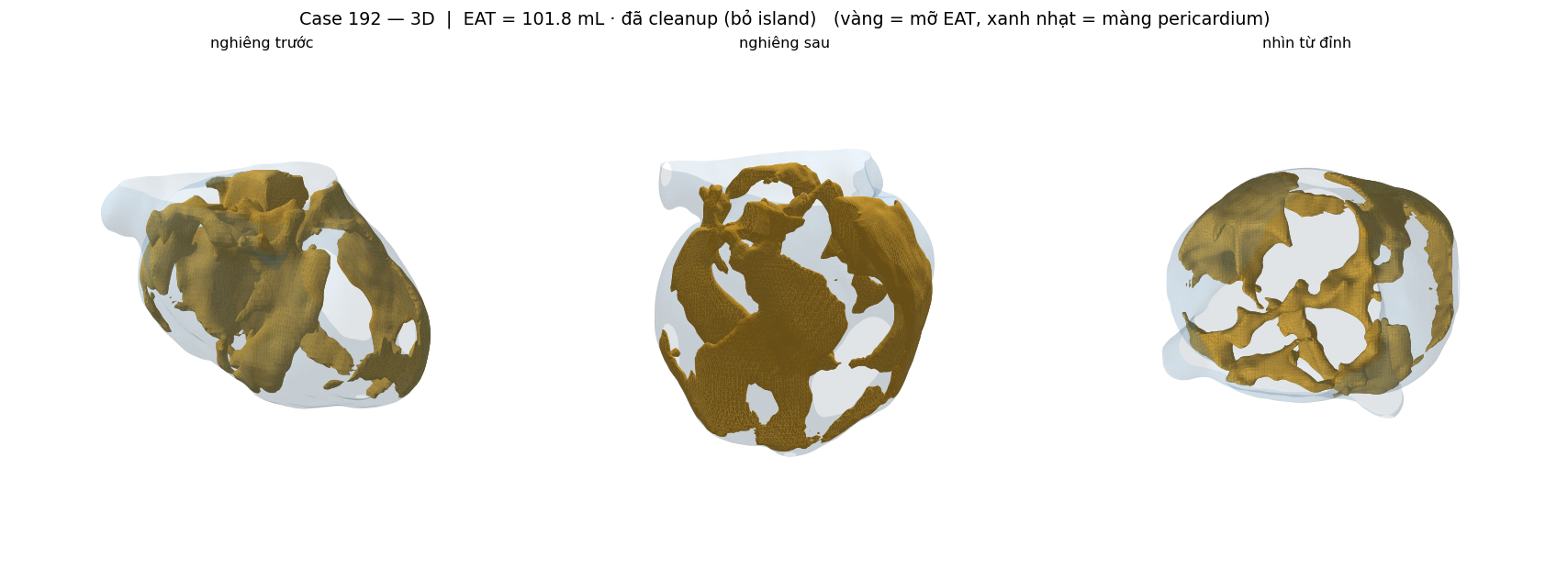

nnU 192 — **Ca 192** · Dice(nnU↔STU) 0.9854 · ΔEAT +7.0 mL

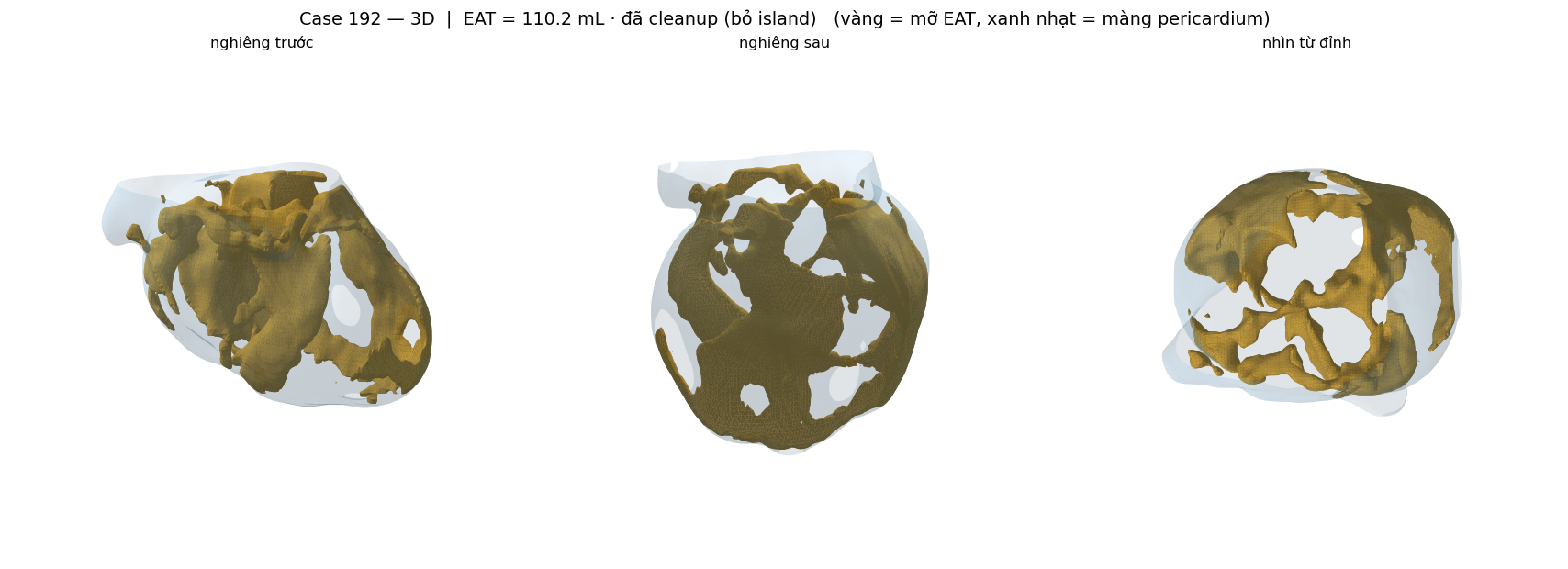

STU 192 — **Ca 192** · Dice(nnU↔STU) 0.9854 · ΔEAT +7.0 mL

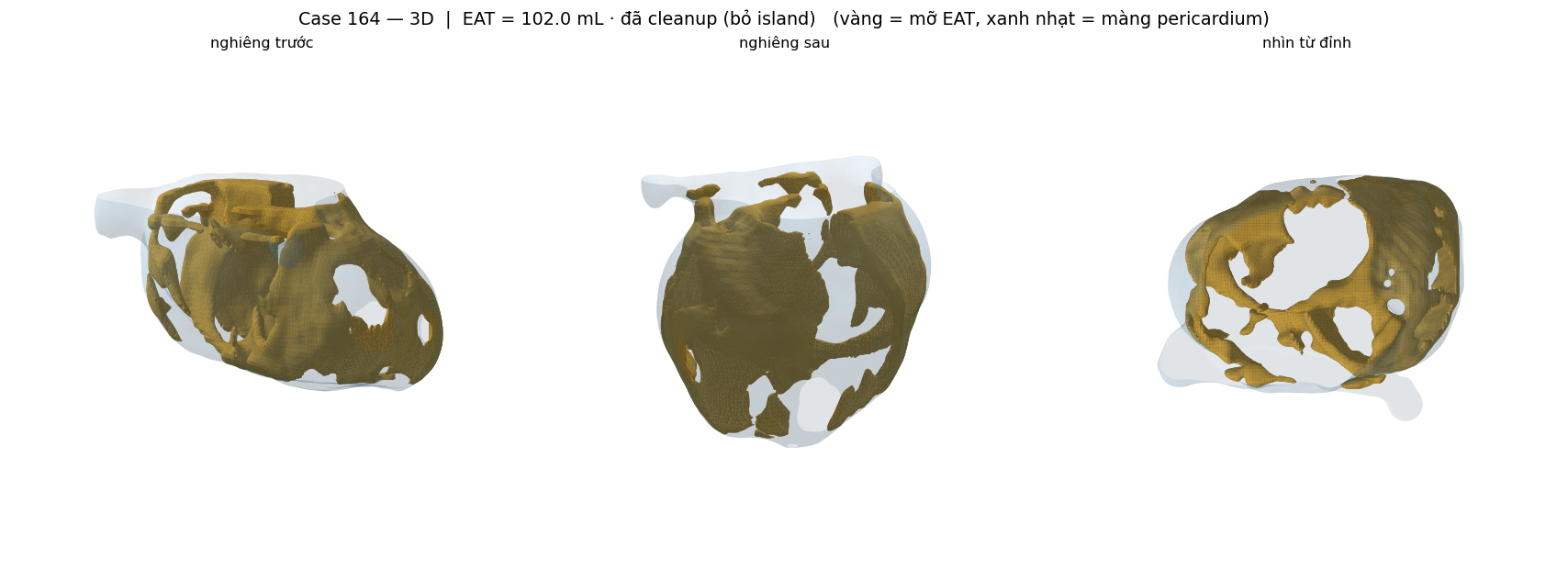

nnU 164 — **Ca 164** · Dice(nnU↔STU) 0.983 · ΔEAT +8.2 mL

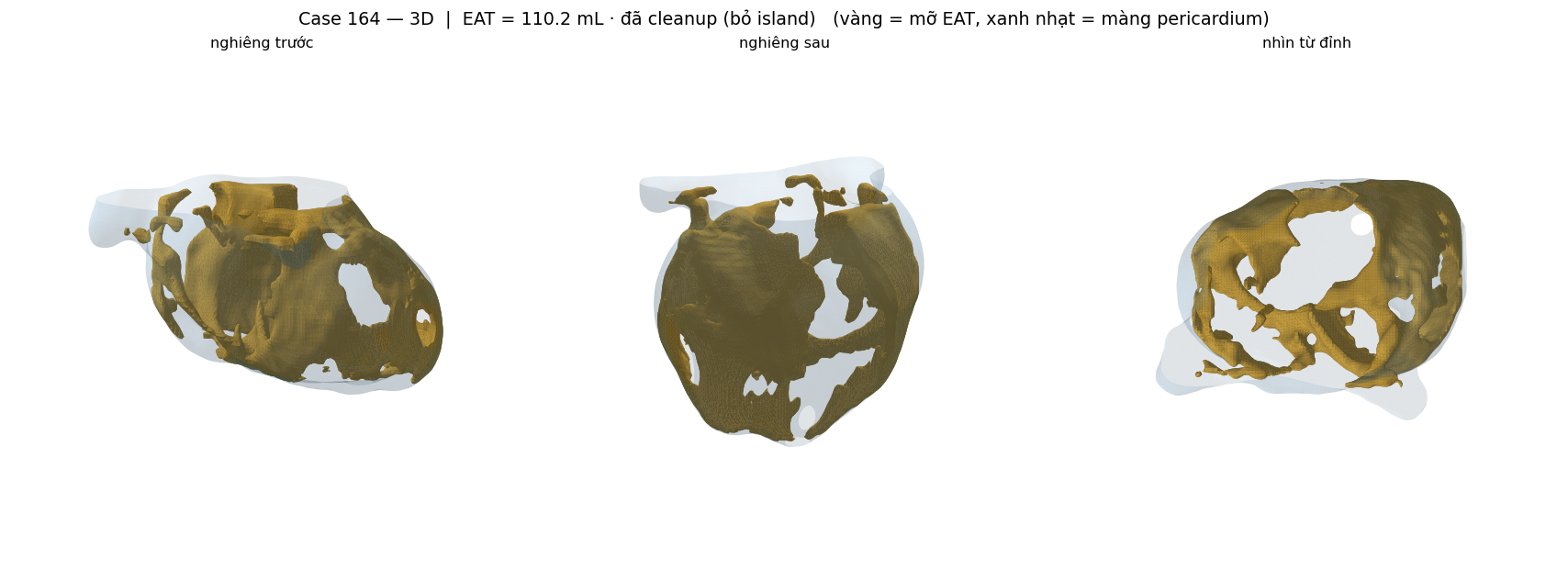

STU 164 — **Ca 164** · Dice(nnU↔STU) 0.983 · ΔEAT +8.2 mL

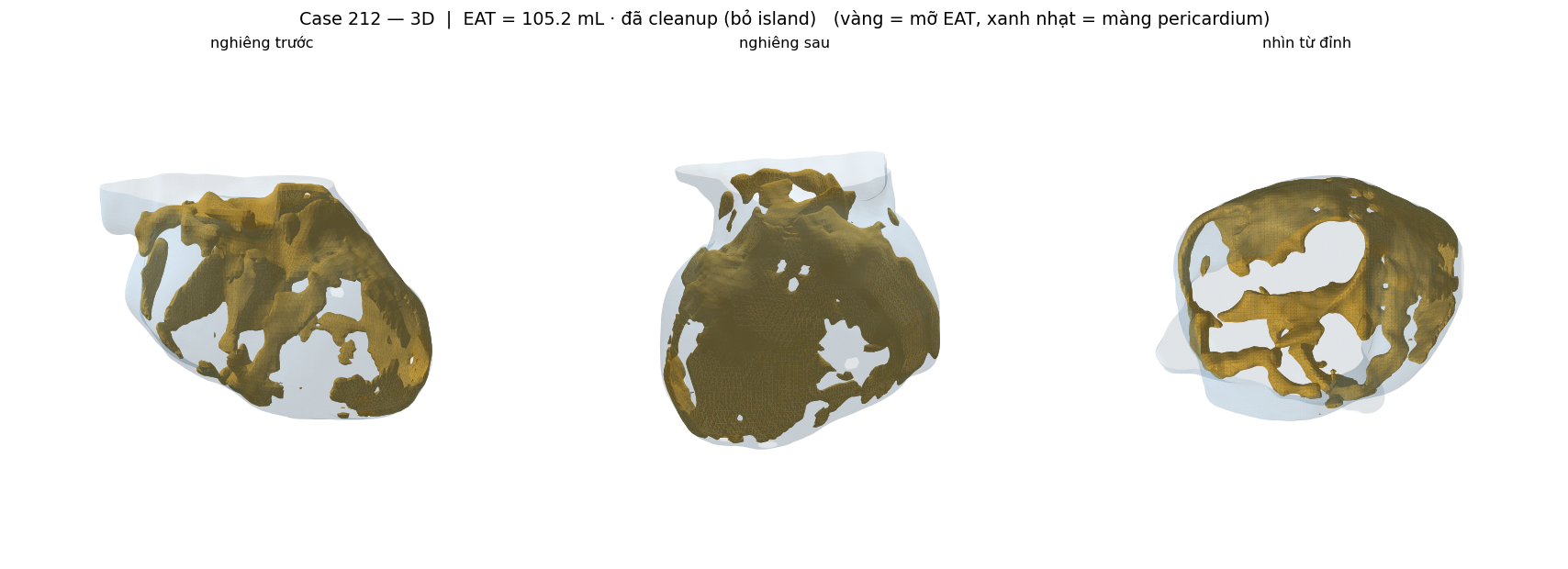

nnU 212 — **Ca 212** · Dice(nnU↔STU) 0.9784 · ΔEAT +12.6 mL

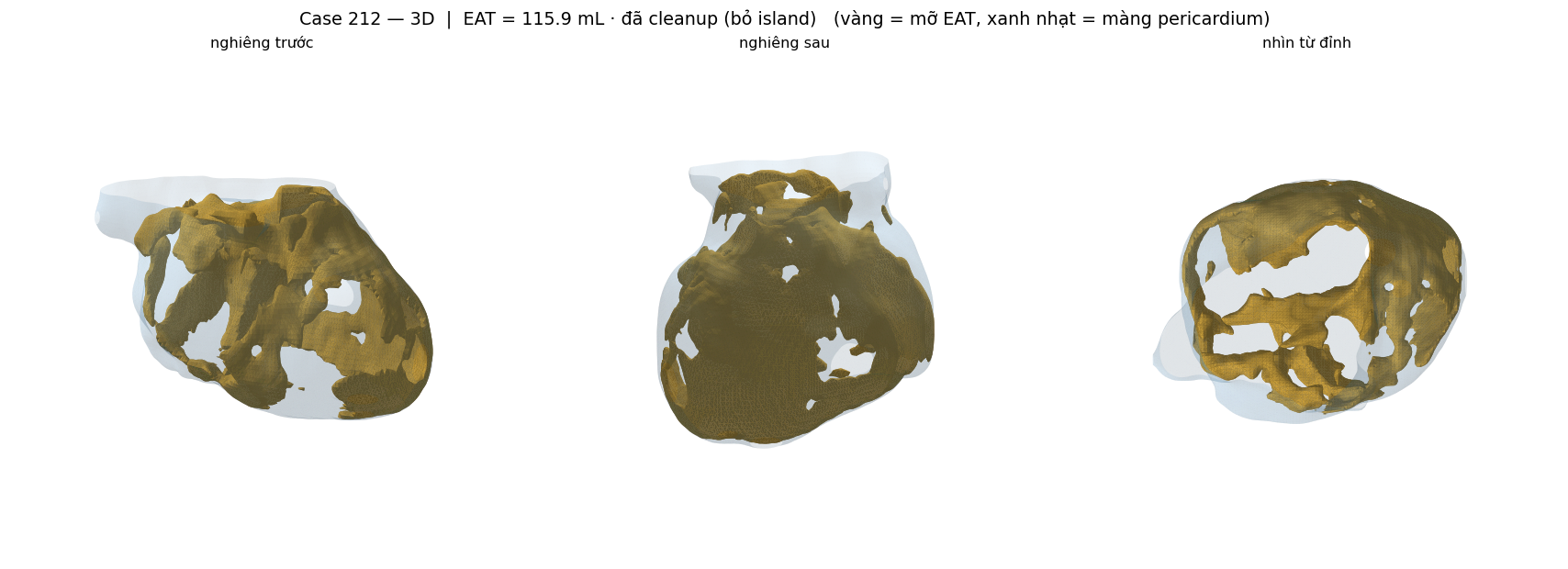

STU 212 — **Ca 212** · Dice(nnU↔STU) 0.9784 · ΔEAT +12.6 mL

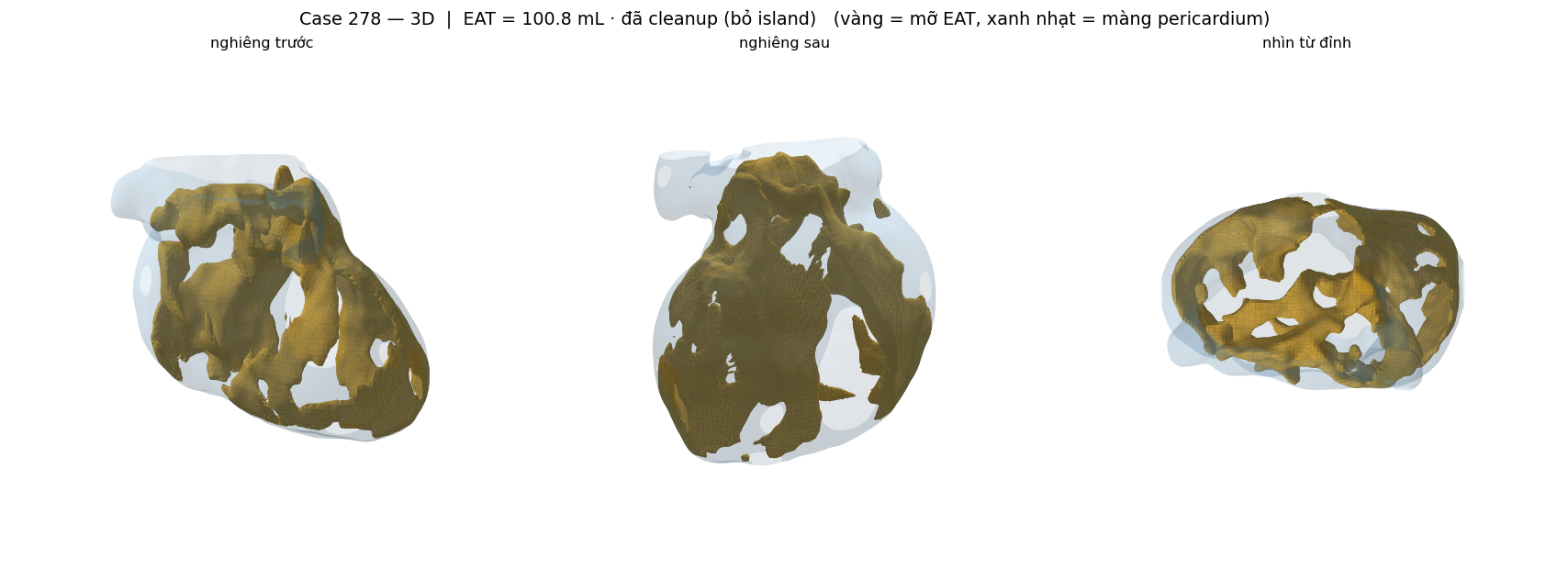

nnU 278 — **Ca 278** · Dice(nnU↔STU) 0.9718 · ΔEAT +13.2 mL

STU 278 — **Ca 278** · Dice(nnU↔STU) 0.9718 · ΔEAT +13.2 mL

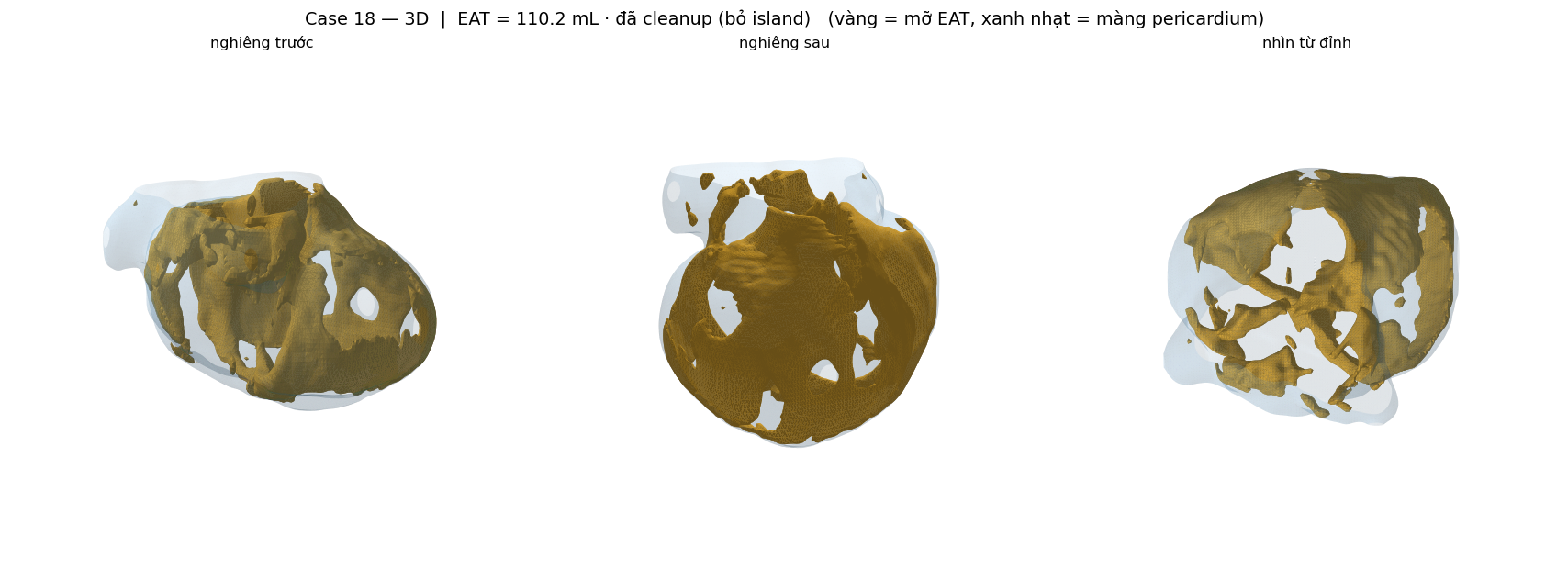

nnU 18 — **Ca 18** · Dice(nnU↔STU) 0.9824 · ΔEAT +7.4 mL

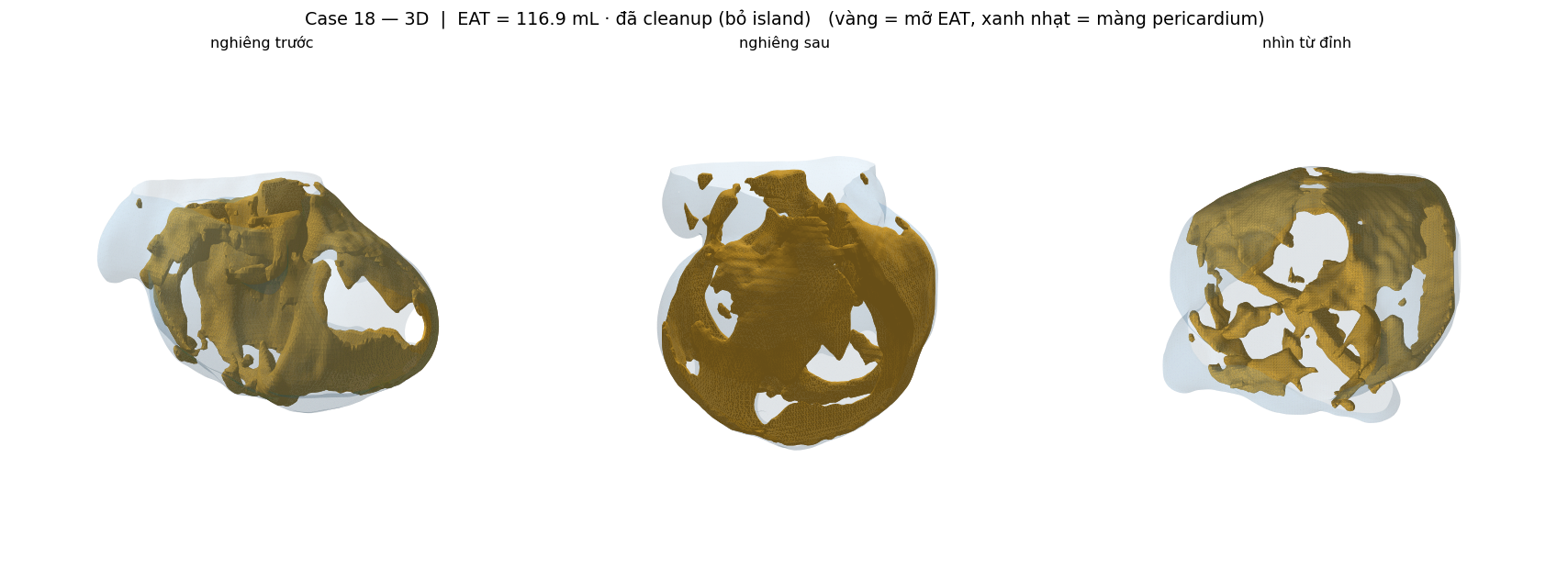

STU 18 — **Ca 18** · Dice(nnU↔STU) 0.9824 · ΔEAT +7.4 mL

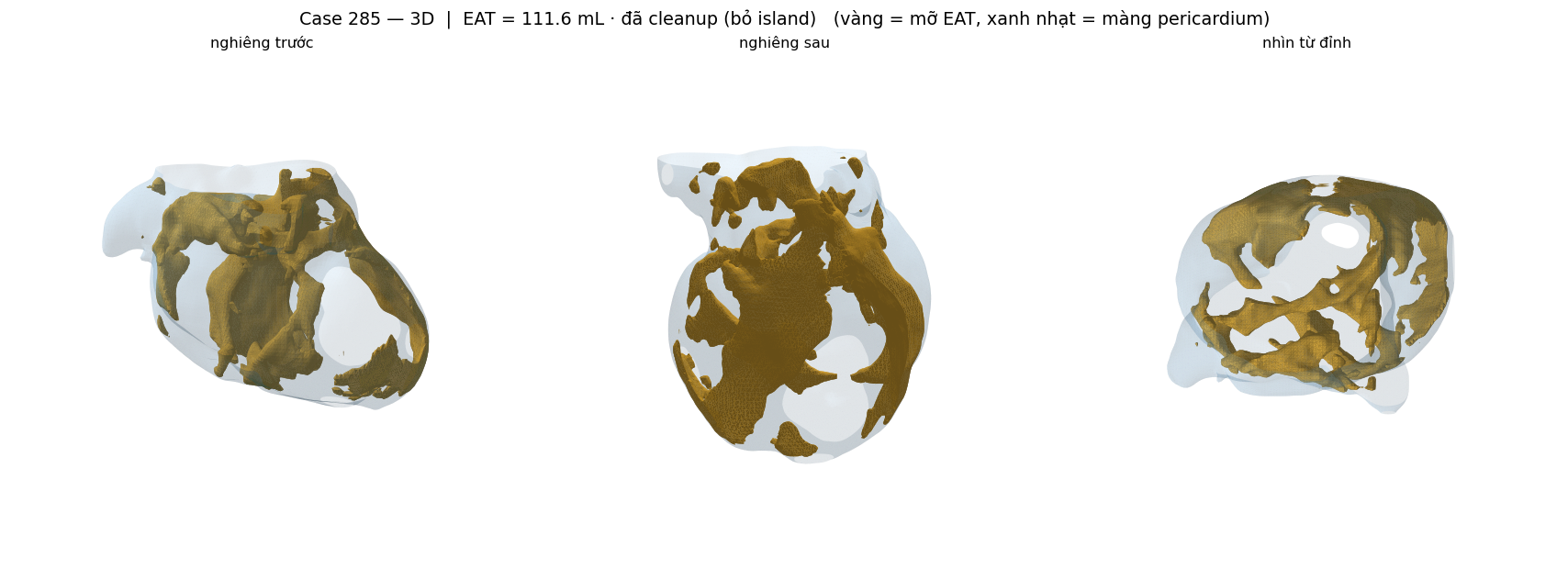

nnU 285 — **Ca 285** · Dice(nnU↔STU) 0.9819 · ΔEAT +9.8 mL

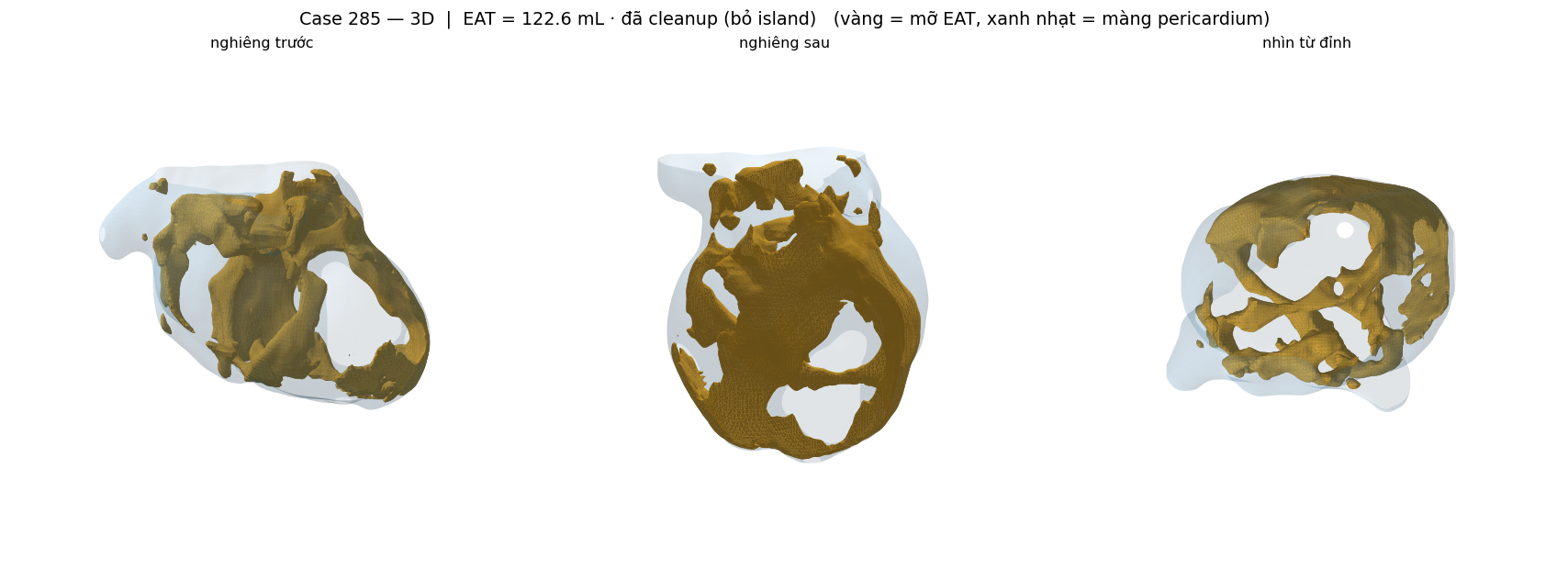

STU 285 — **Ca 285** · Dice(nnU↔STU) 0.9819 · ΔEAT +9.8 mL

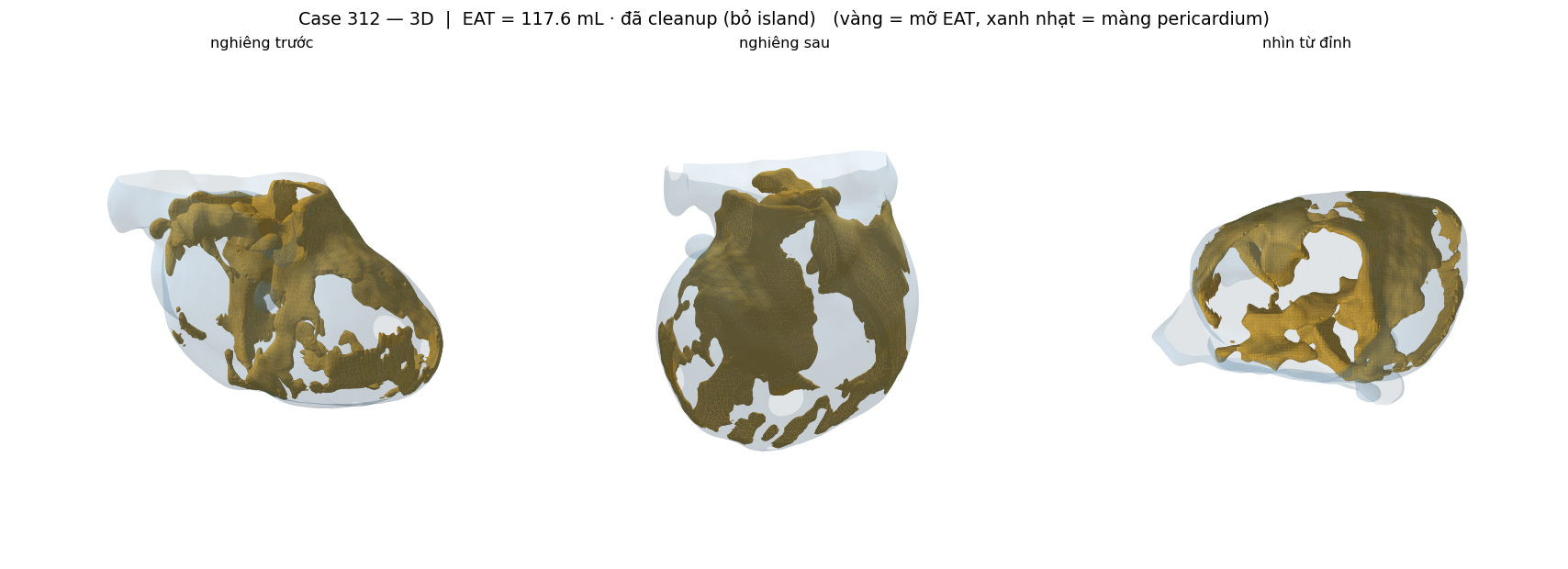

nnU 312 — **Ca 312** · Dice(nnU↔STU) 0.9778 · ΔEAT +12.0 mL

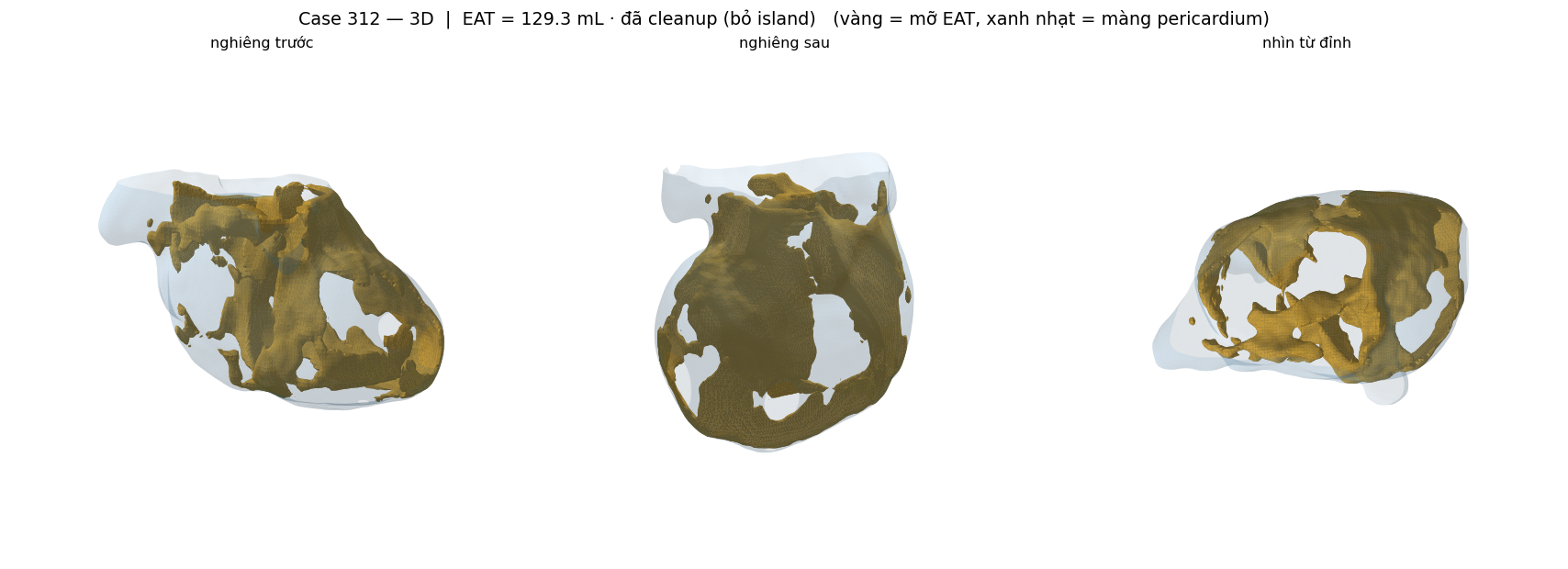

STU 312 — **Ca 312** · Dice(nnU↔STU) 0.9778 · ΔEAT +12.0 mL

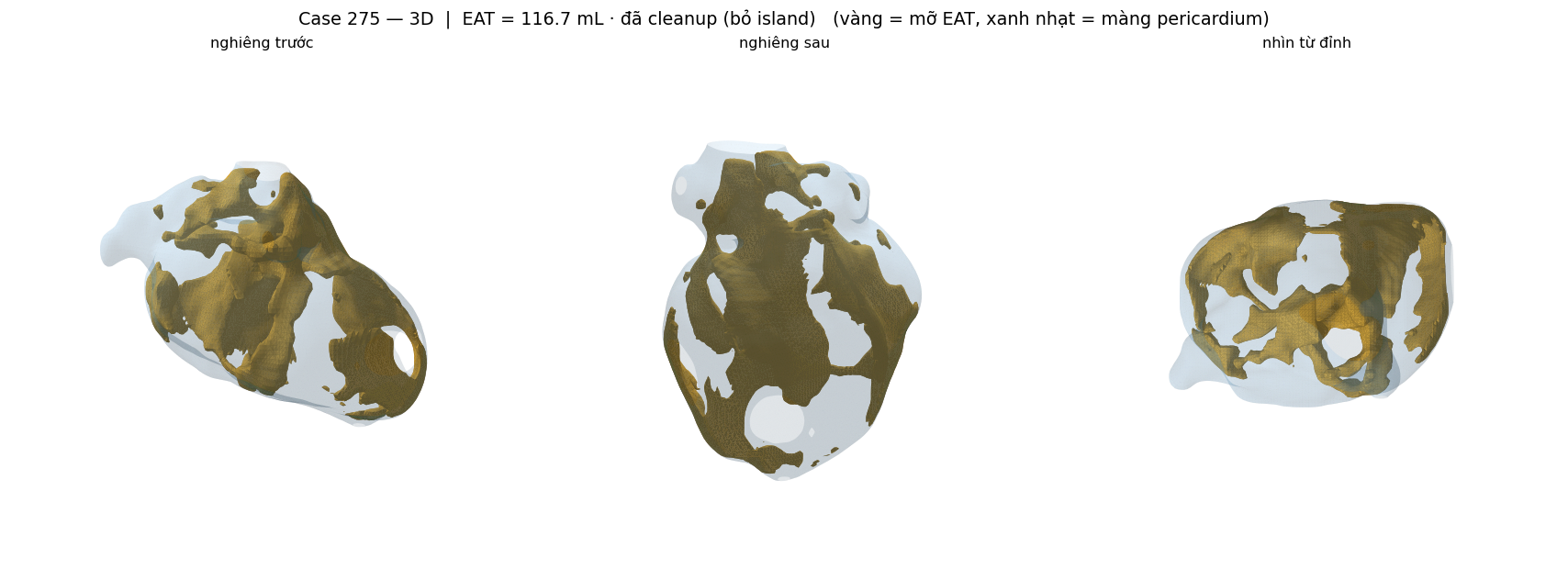

nnU 275 — **Ca 275** · Dice(nnU↔STU) 0.975 · ΔEAT +11.8 mL

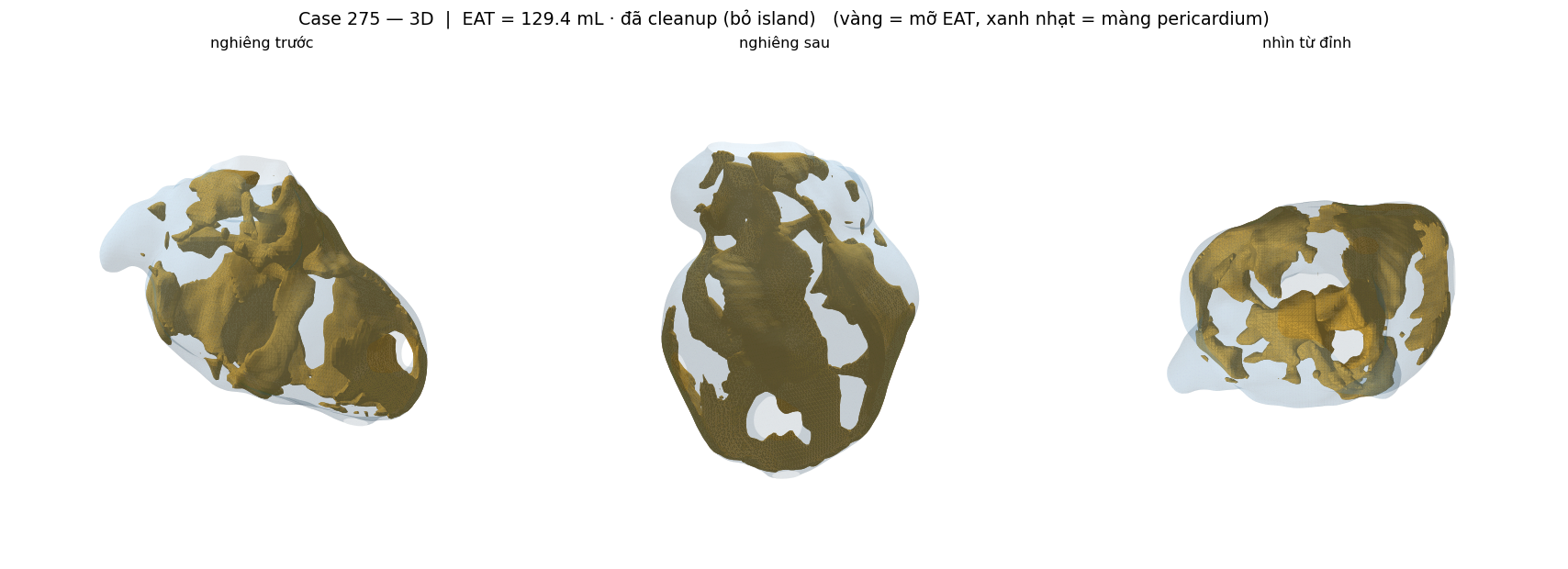

STU 275 — **Ca 275** · Dice(nnU↔STU) 0.975 · ΔEAT +11.8 mL

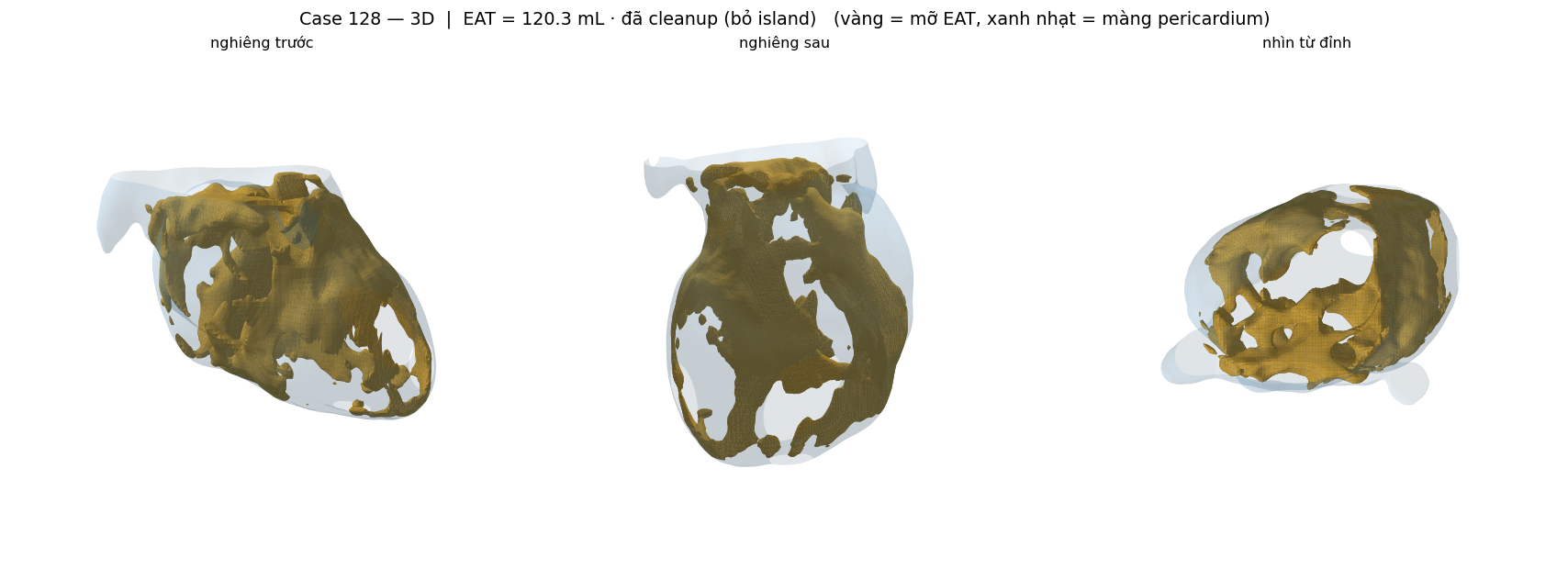

nnU 128 — **Ca 128** · Dice(nnU↔STU) 0.9784 · ΔEAT +11.0 mL

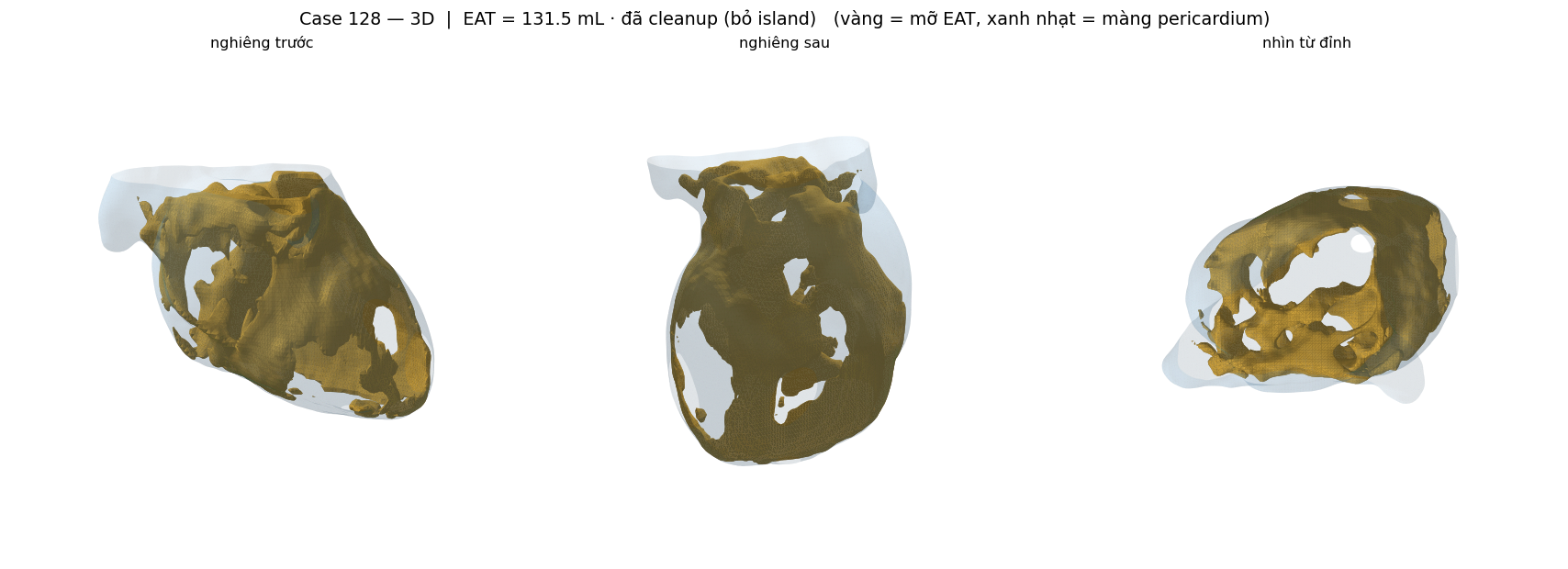

STU 128 — **Ca 128** · Dice(nnU↔STU) 0.9784 · ΔEAT +11.0 mL

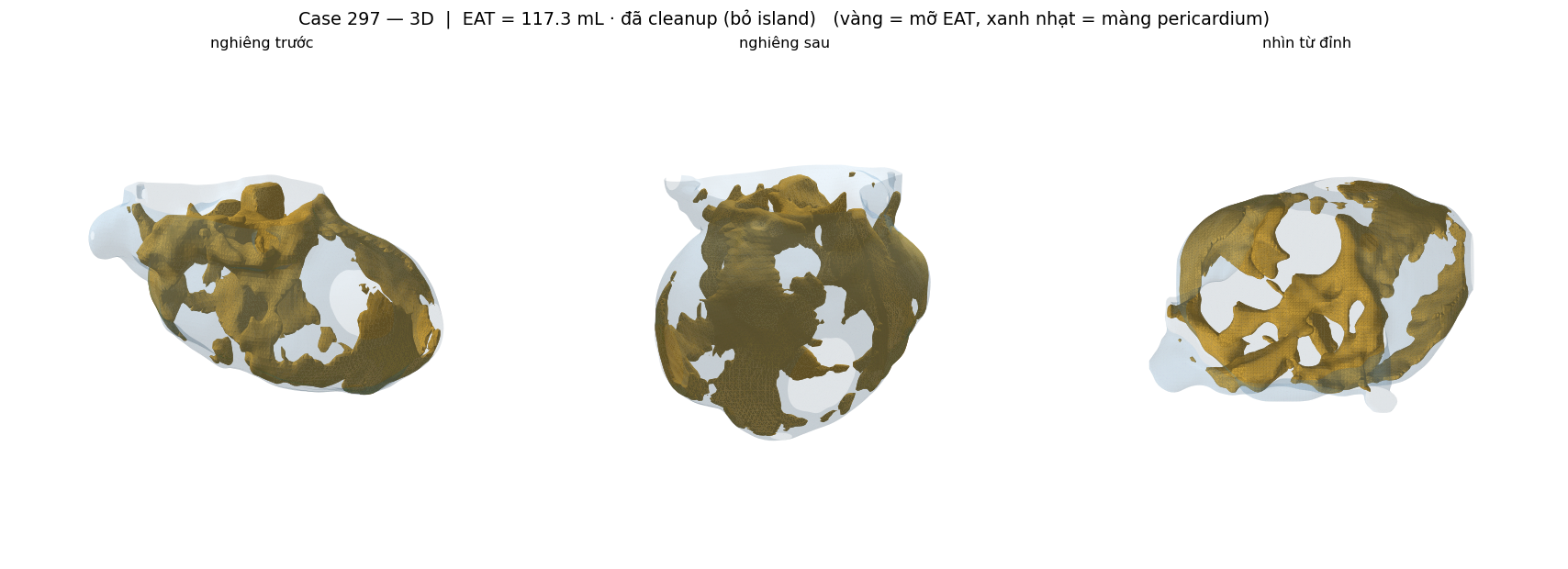

nnU 297 — **Ca 297** · Dice(nnU↔STU) 0.9781 · ΔEAT +11.8 mL

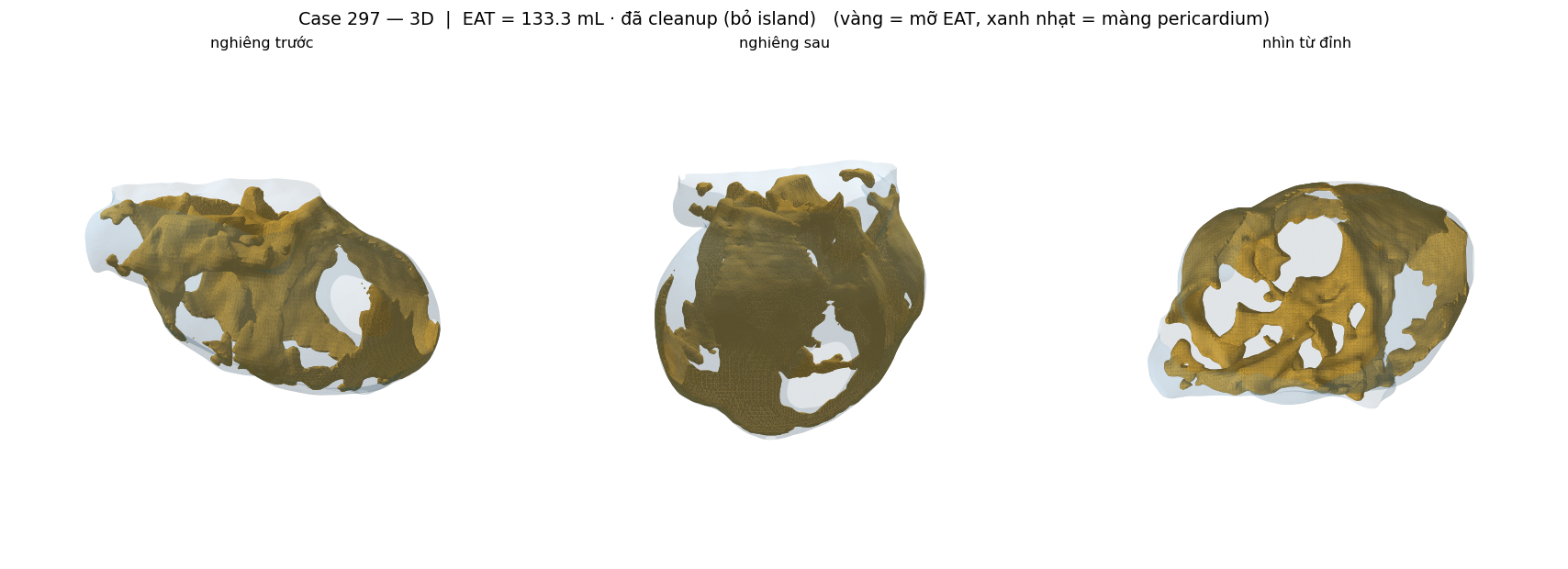

STU 297 — **Ca 297** · Dice(nnU↔STU) 0.9781 · ΔEAT +11.8 mL

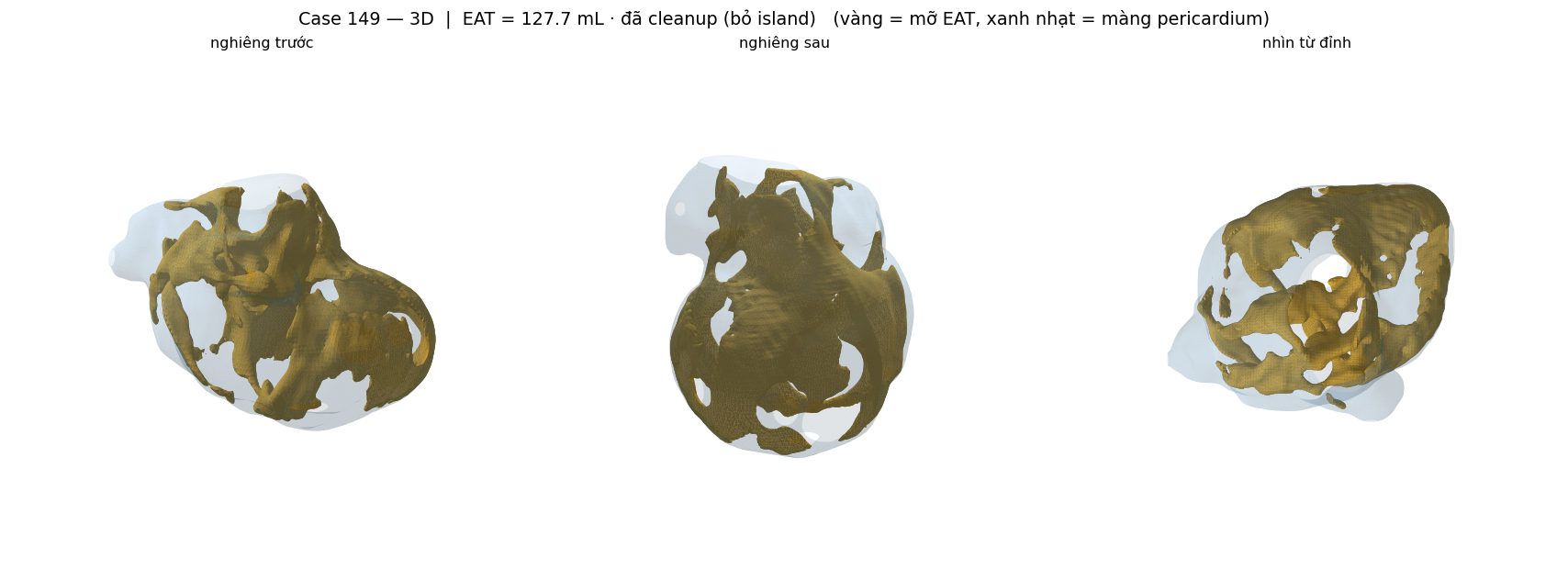

nnU 149 — **Ca 149** · Dice(nnU↔STU) 0.977 · ΔEAT +10.1 mL

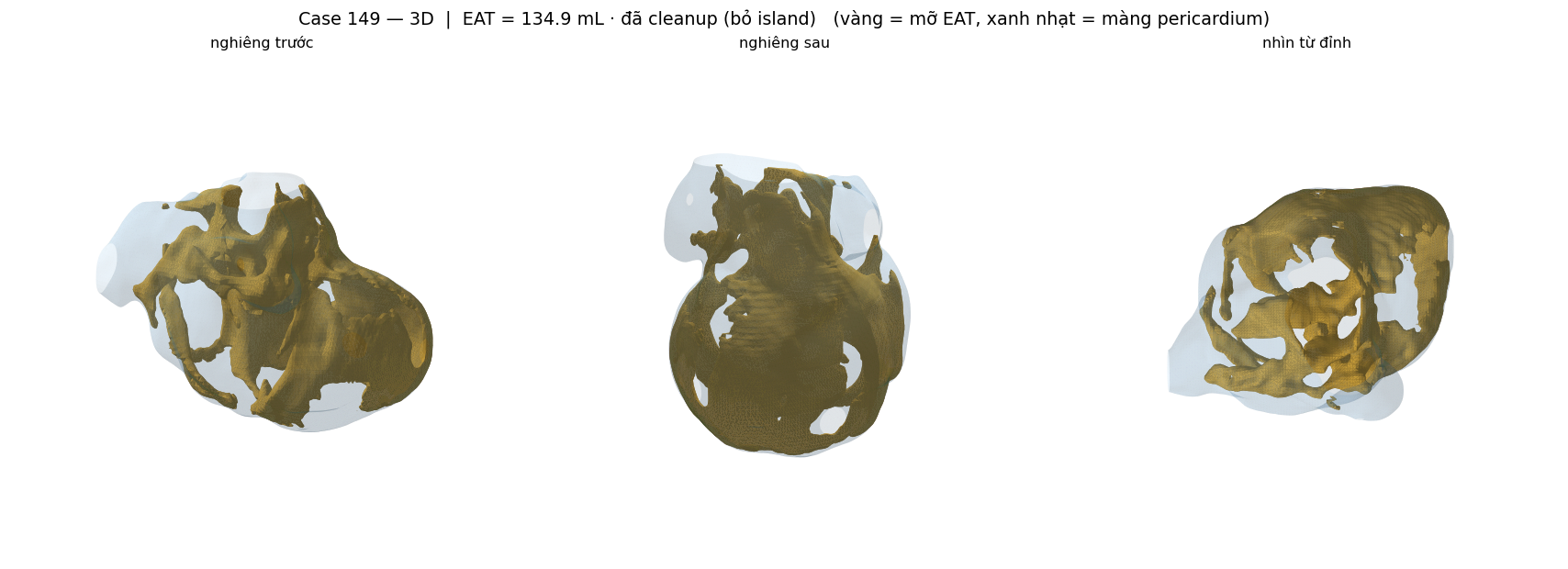

STU 149 — **Ca 149** · Dice(nnU↔STU) 0.977 · ΔEAT +10.1 mL

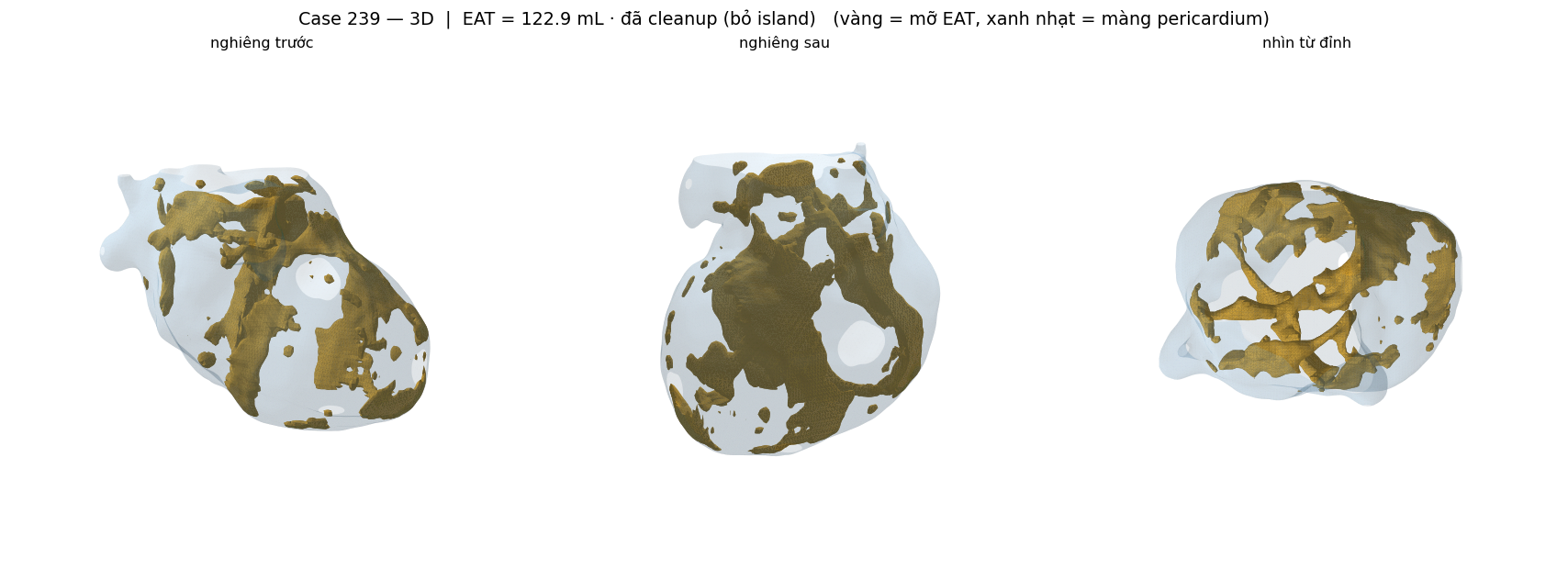

nnU 239 — **Ca 239** · Dice(nnU↔STU) 0.9772 · ΔEAT +12.1 mL

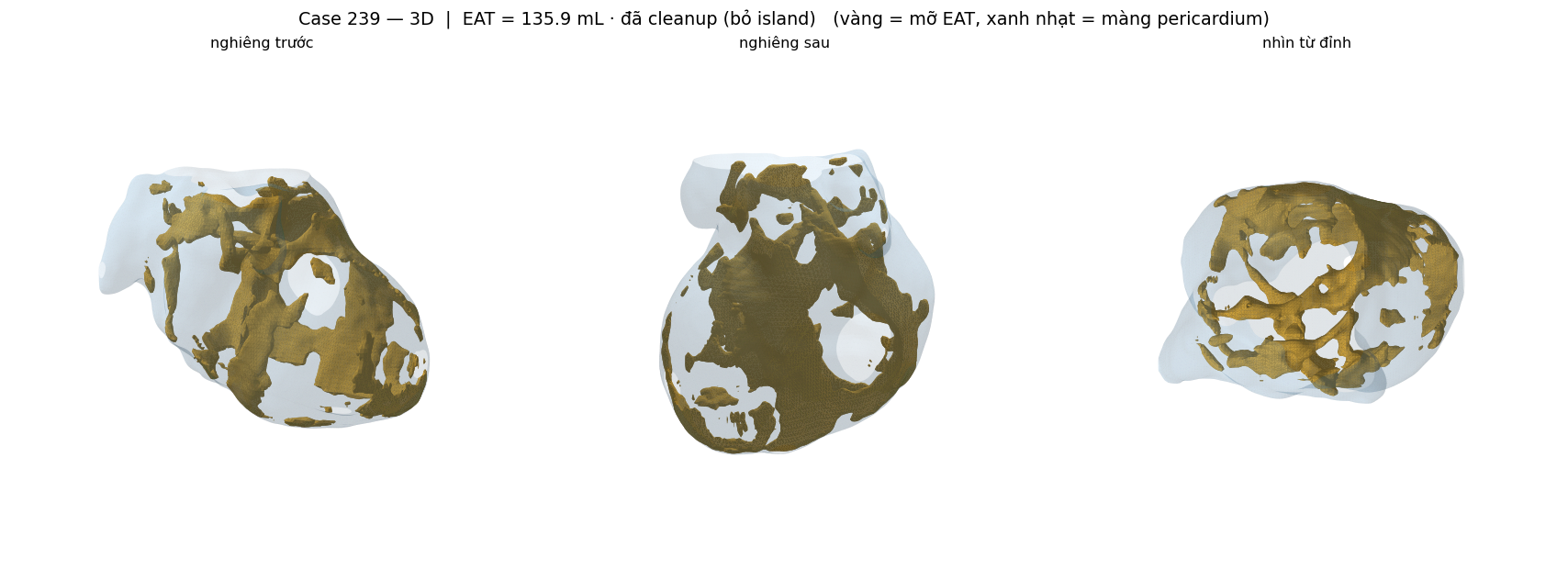

STU 239 — **Ca 239** · Dice(nnU↔STU) 0.9772 · ΔEAT +12.1 mL

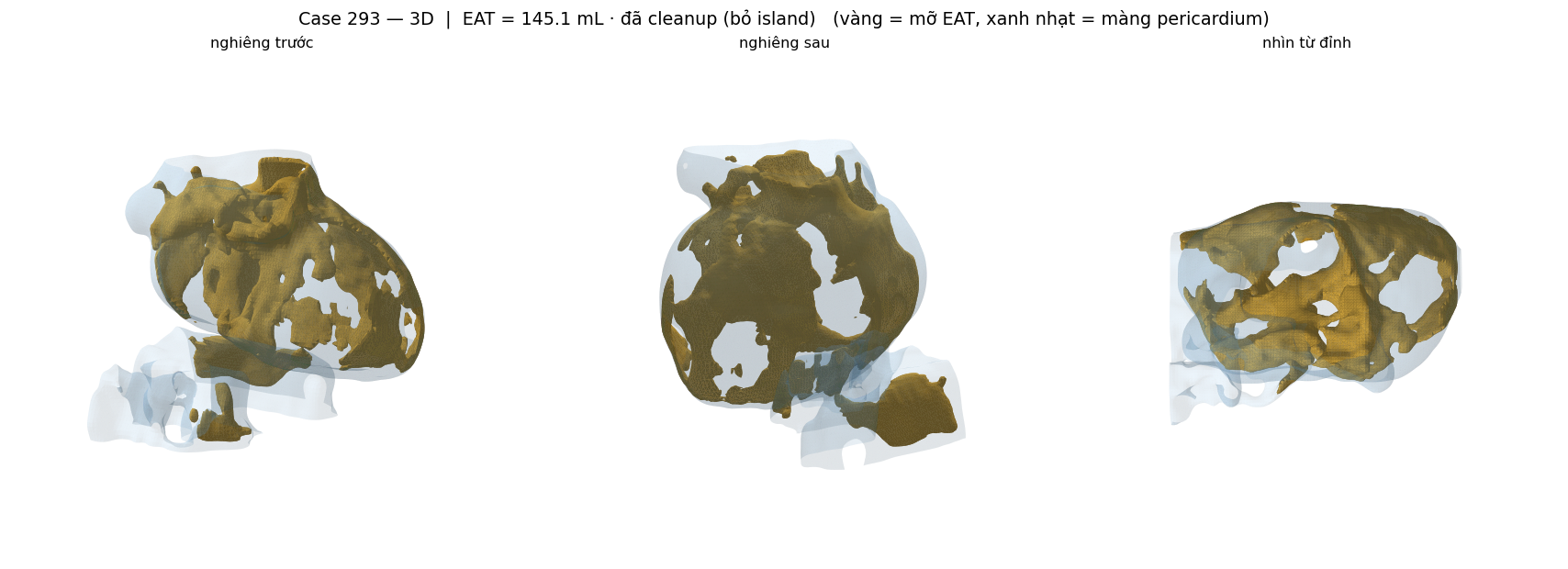

nnU 293 — **Ca 293** · Dice(nnU↔STU) 0.9791 · ΔEAT +7.7 mL

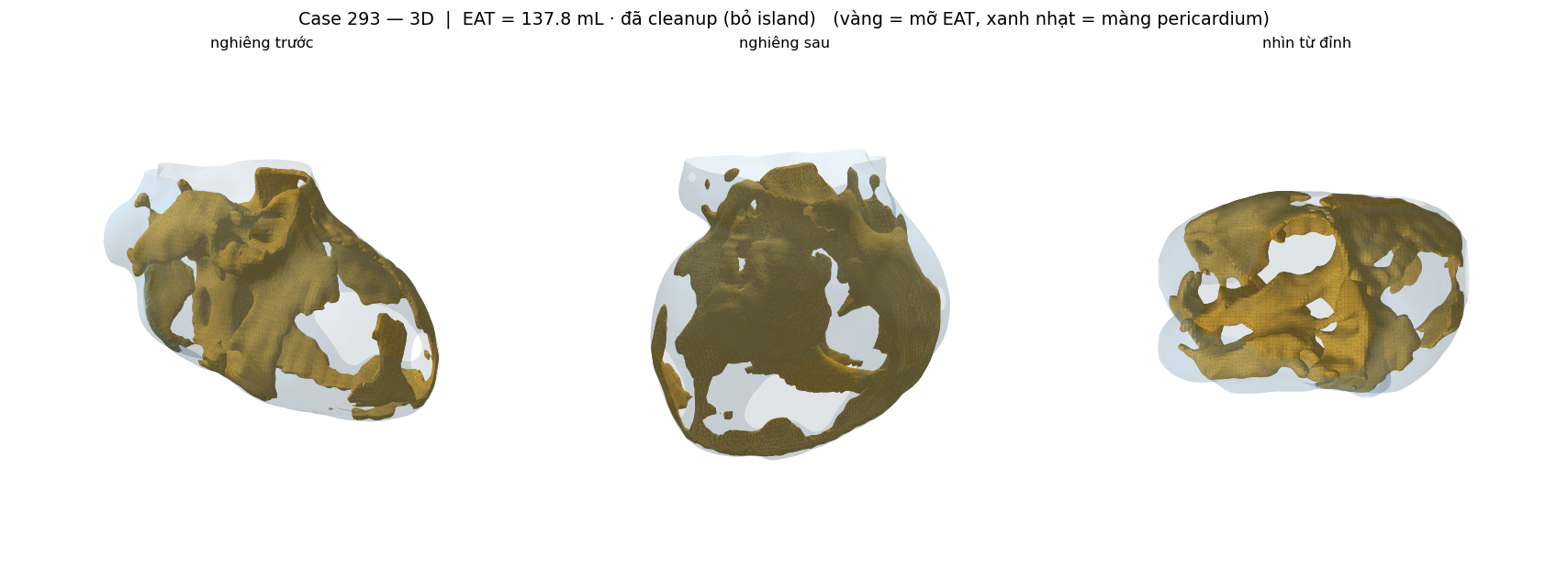

STU 293 — **Ca 293** · Dice(nnU↔STU) 0.9791 · ΔEAT +7.7 mL

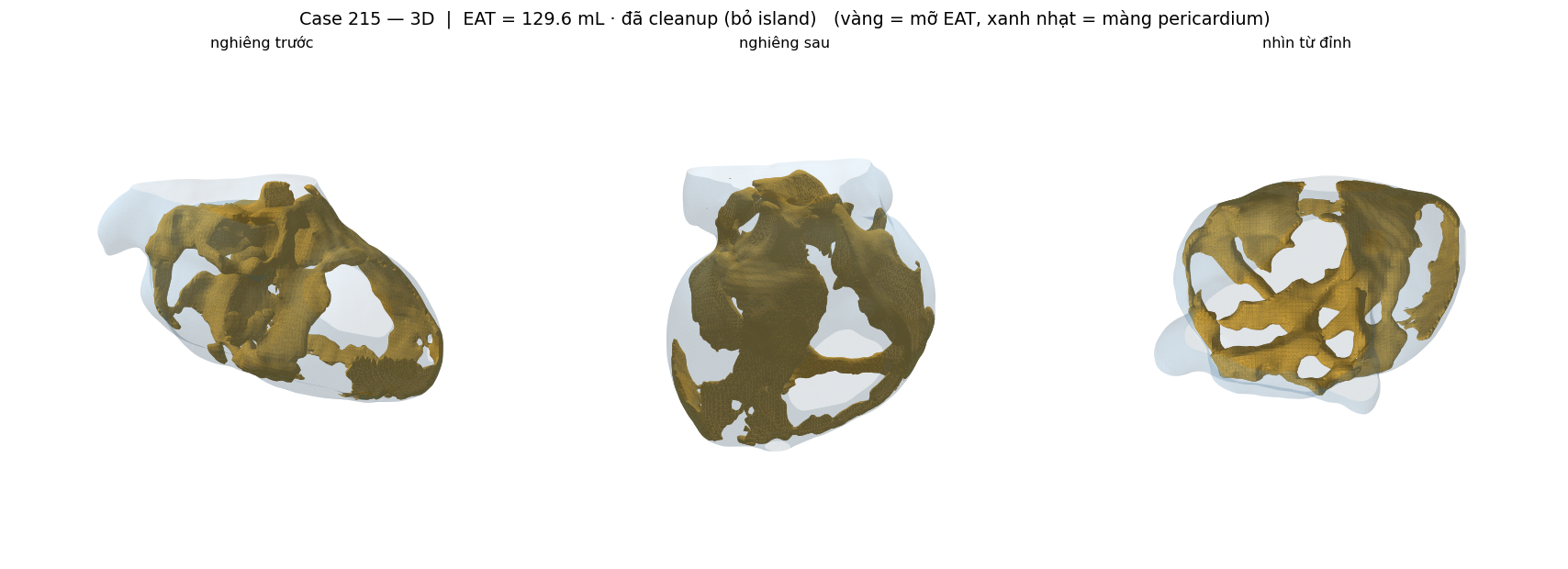

nnU 215 — **Ca 215** · Dice(nnU↔STU) 0.9804 · ΔEAT +14.3 mL

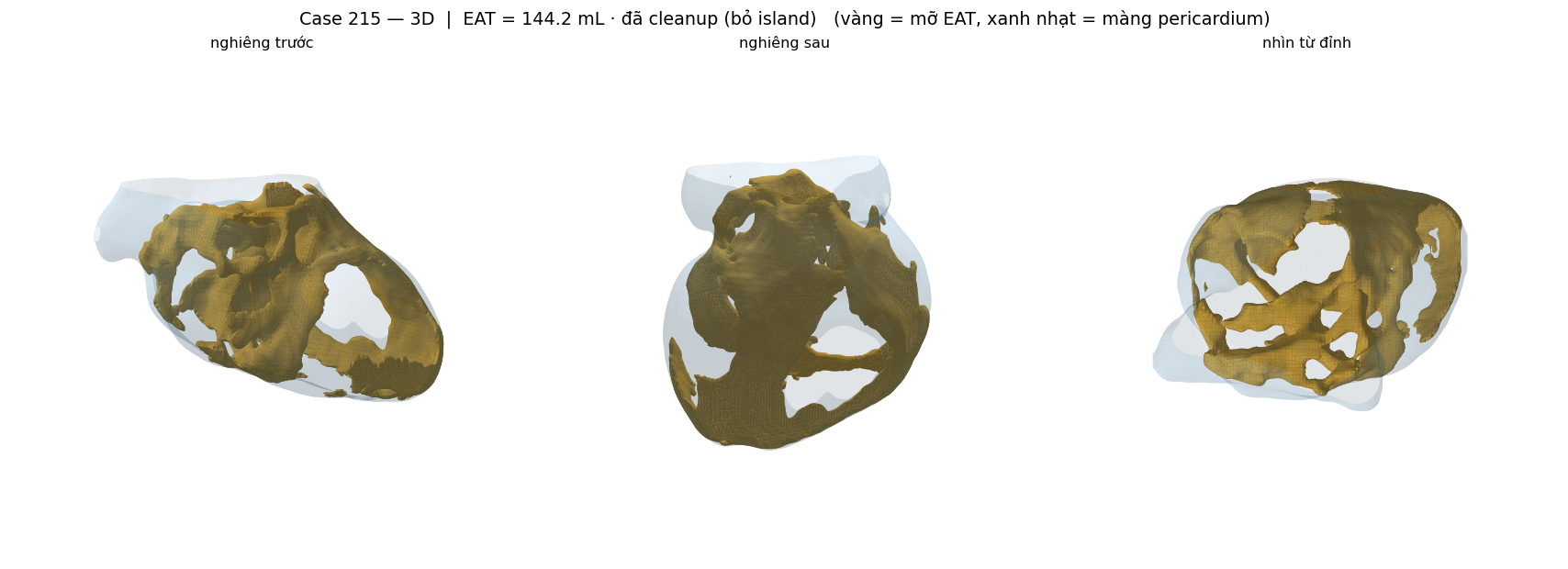

STU 215 — **Ca 215** · Dice(nnU↔STU) 0.9804 · ΔEAT +14.3 mL

nnU 146 — **Ca 146** · Dice(nnU↔STU) 0.9739 · ΔEAT +10.6 mL

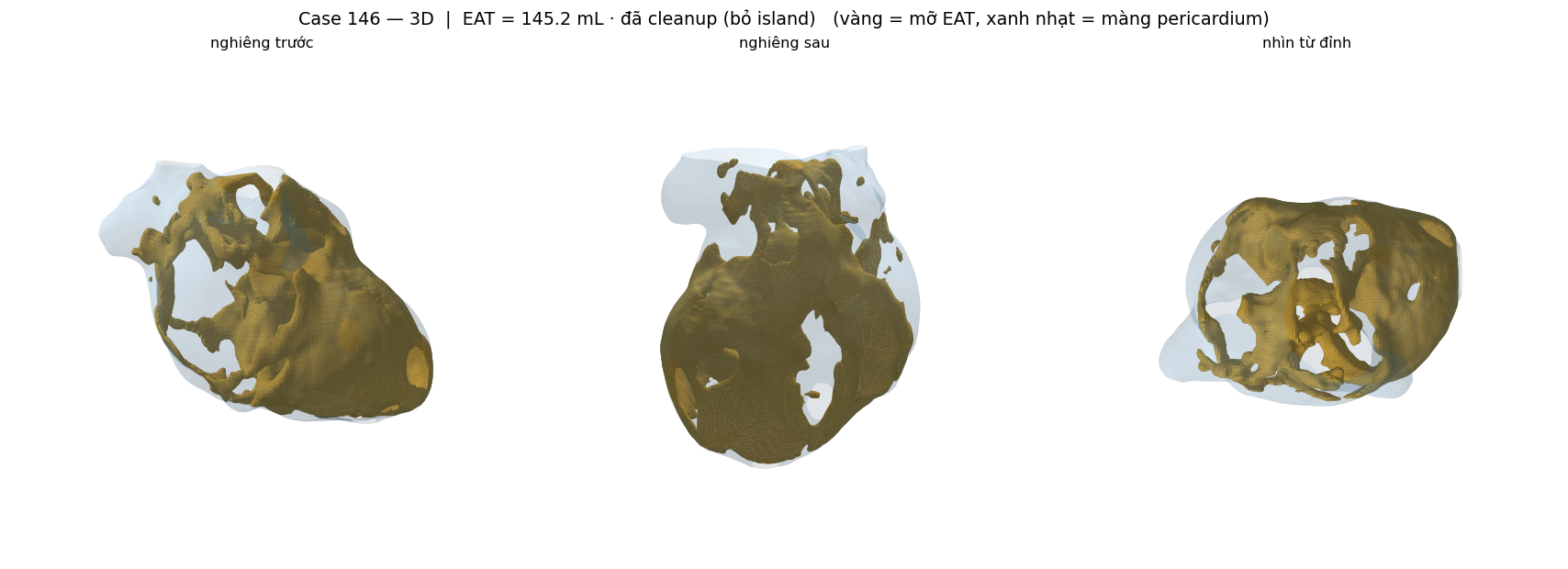

STU 146 — **Ca 146** · Dice(nnU↔STU) 0.9739 · ΔEAT +10.6 mL

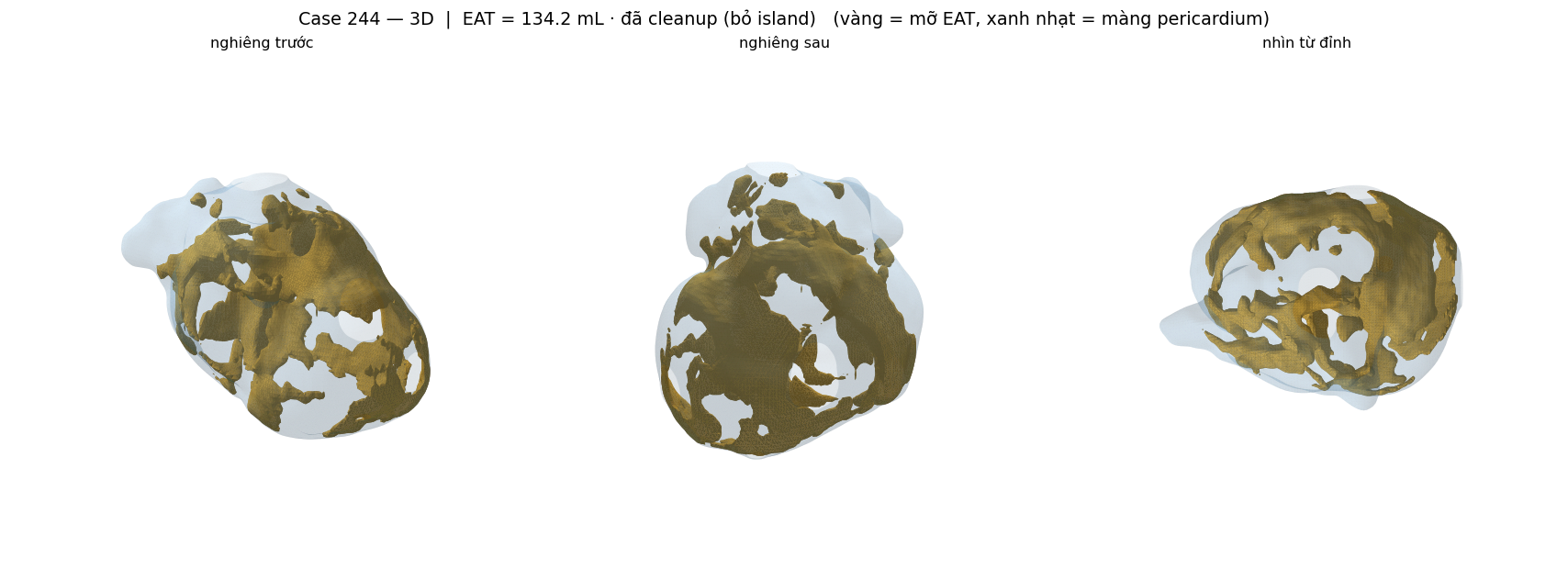

nnU 244 — **Ca 244** · Dice(nnU↔STU) 0.9748 · ΔEAT +11.3 mL

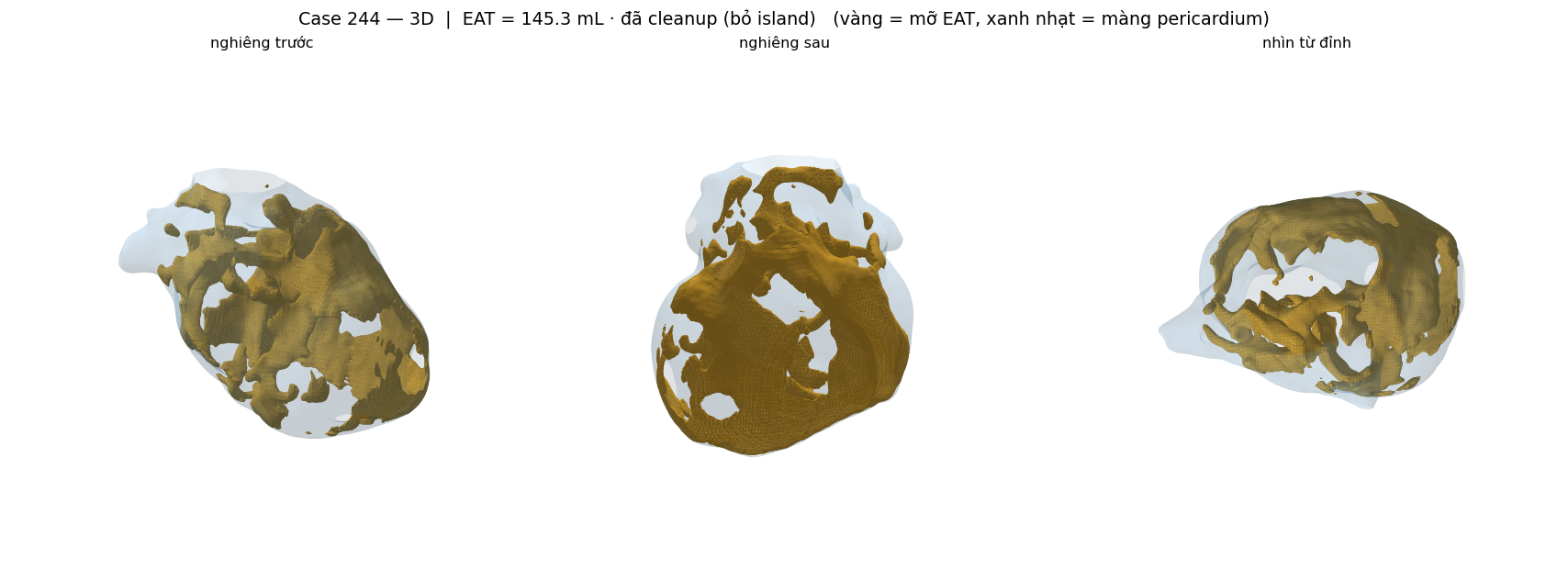

STU 244 — **Ca 244** · Dice(nnU↔STU) 0.9748 · ΔEAT +11.3 mL

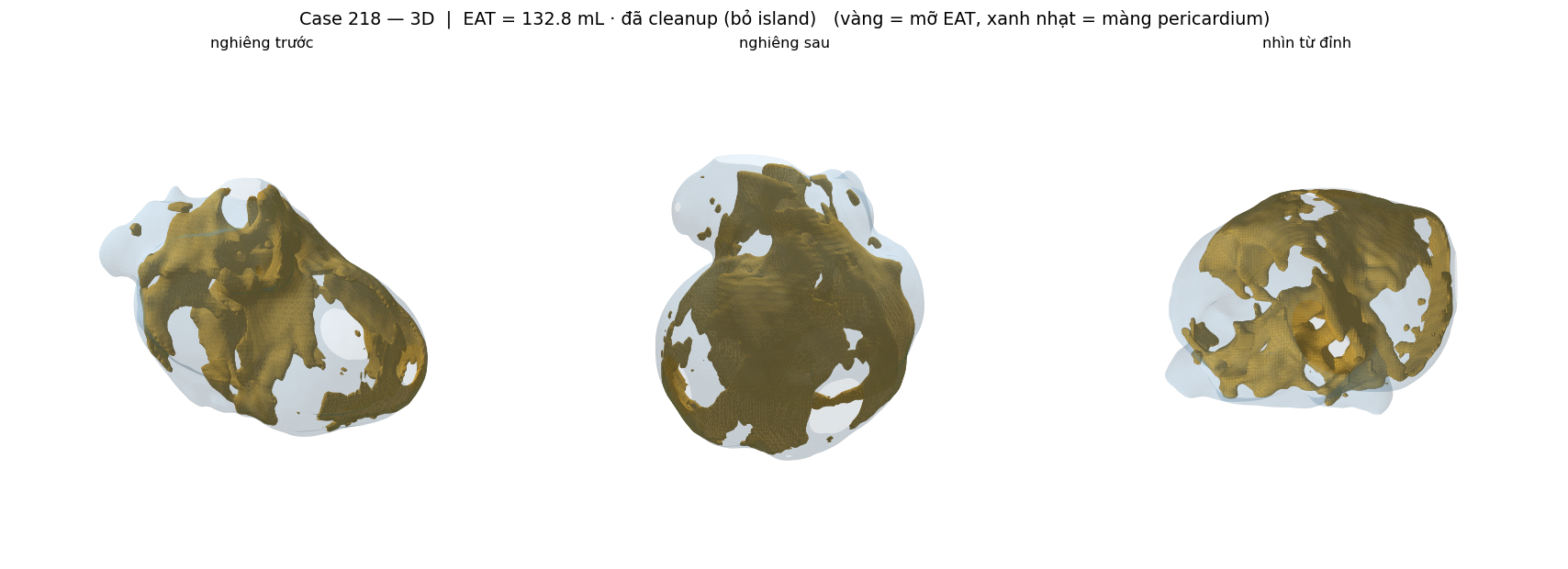

nnU 218 — **Ca 218** · Dice(nnU↔STU) 0.9738 · ΔEAT +13.3 mL

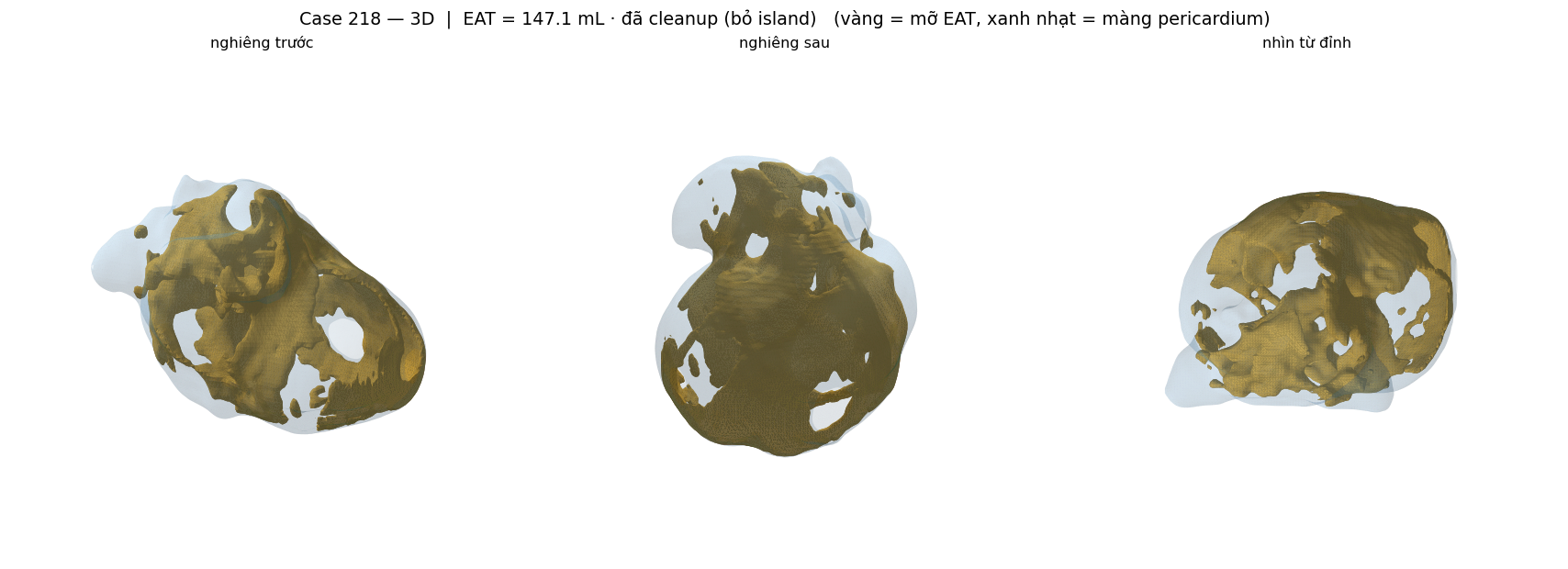

STU 218 — **Ca 218** · Dice(nnU↔STU) 0.9738 · ΔEAT +13.3 mL

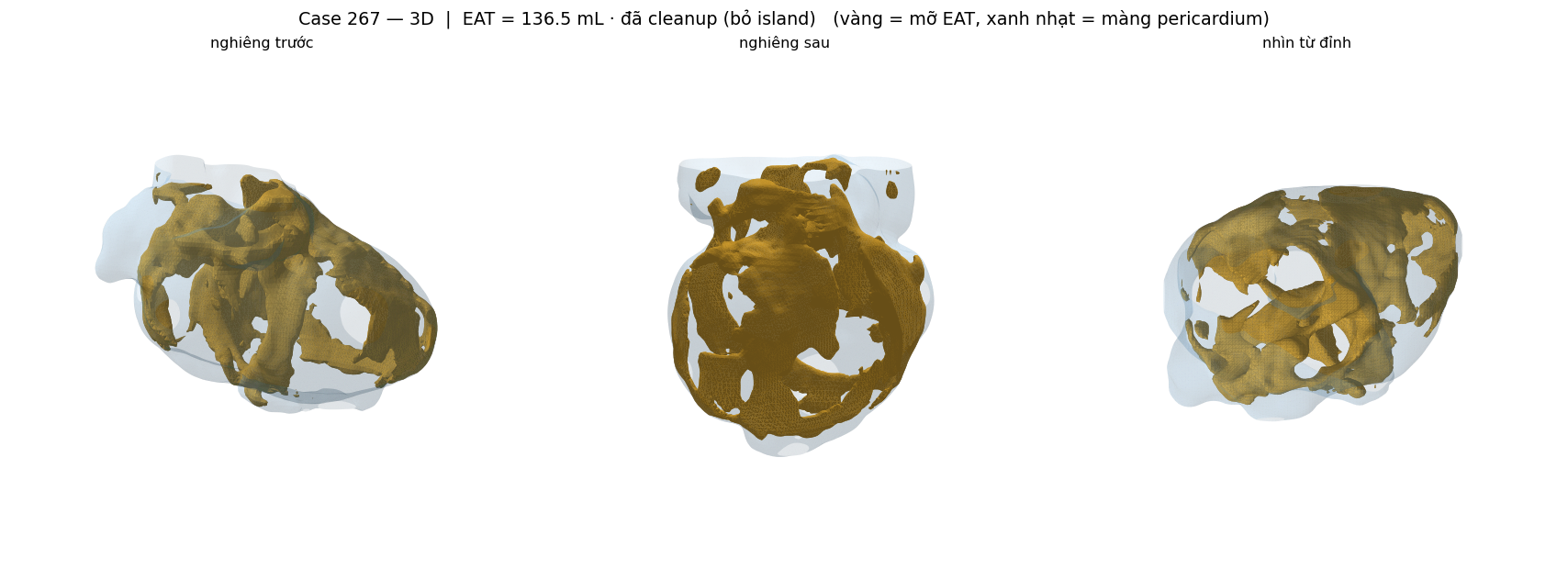

nnU 267 — **Ca 267** · Dice(nnU↔STU) 0.967 · ΔEAT +17.1 mL

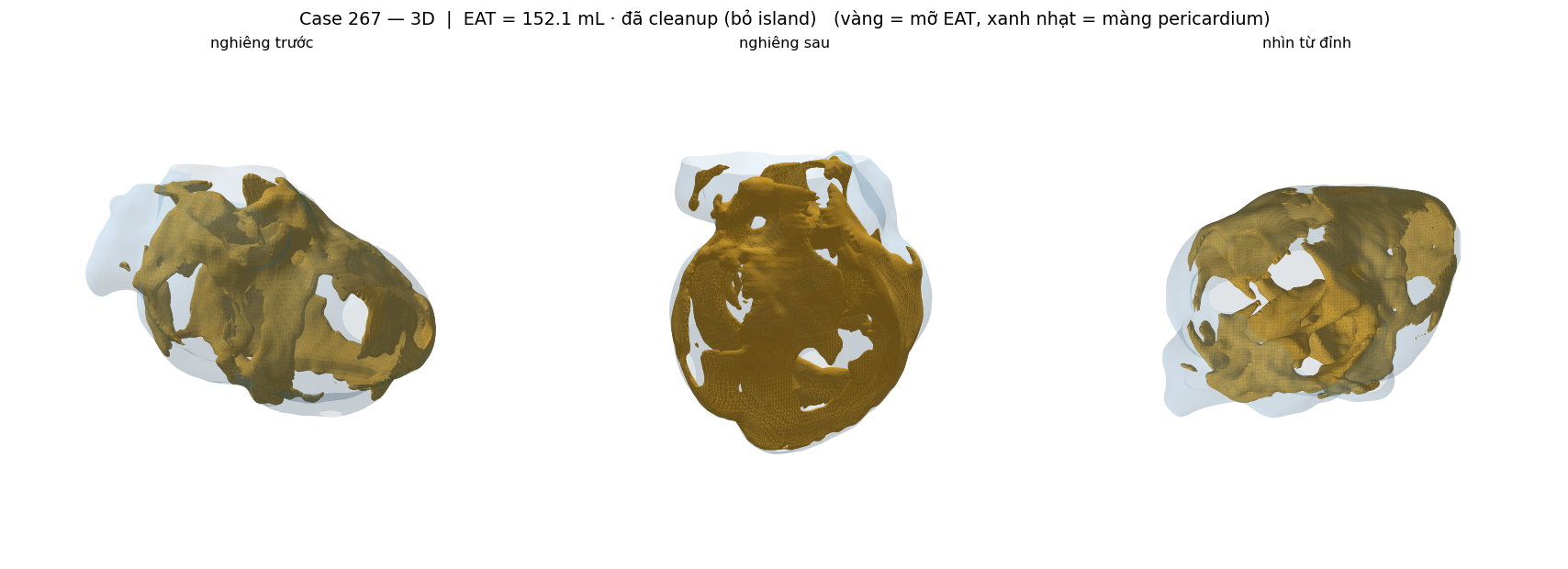

STU 267 — **Ca 267** · Dice(nnU↔STU) 0.967 · ΔEAT +17.1 mL

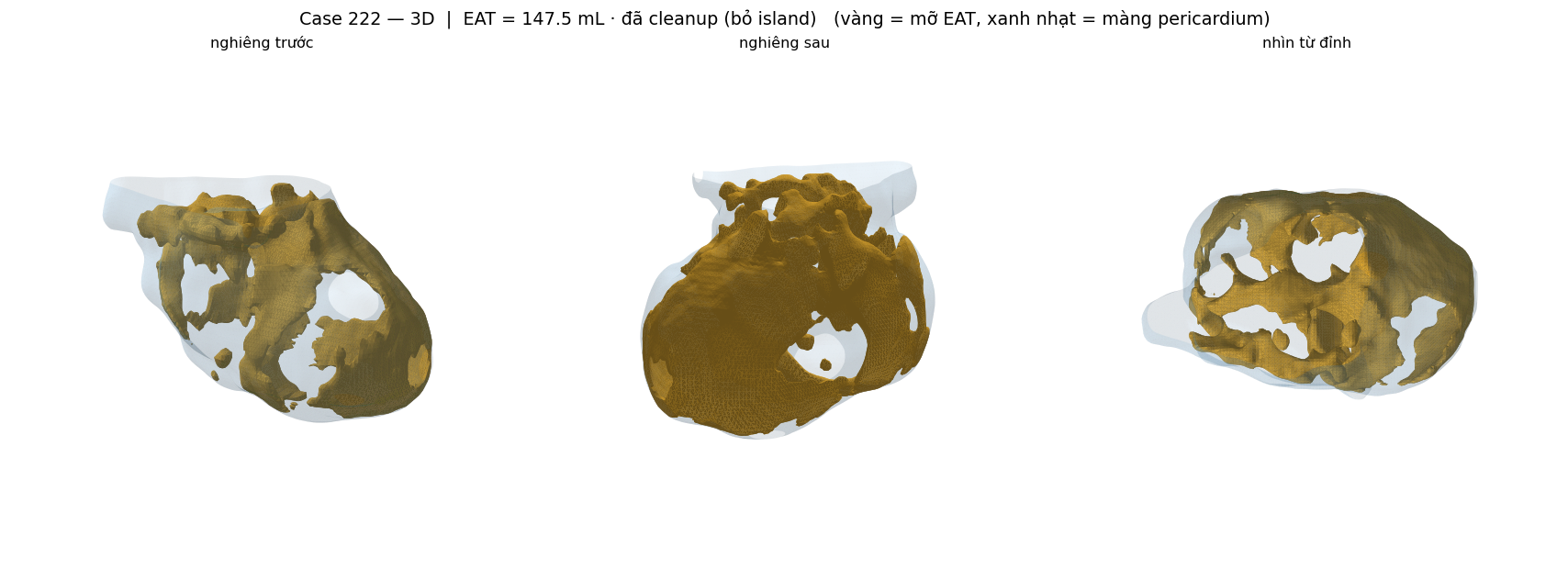

nnU 222 — **Ca 222** · Dice(nnU↔STU) 0.9787 · ΔEAT +10.1 mL

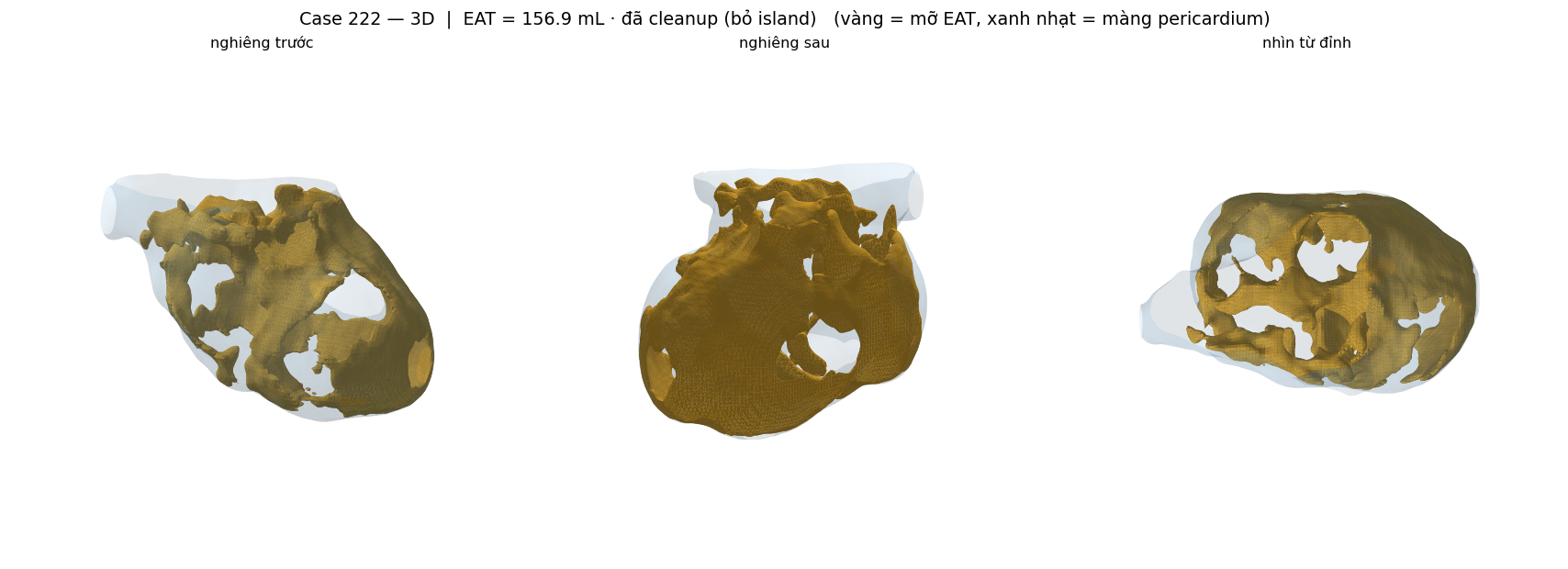

STU 222 — **Ca 222** · Dice(nnU↔STU) 0.9787 · ΔEAT +10.1 mL

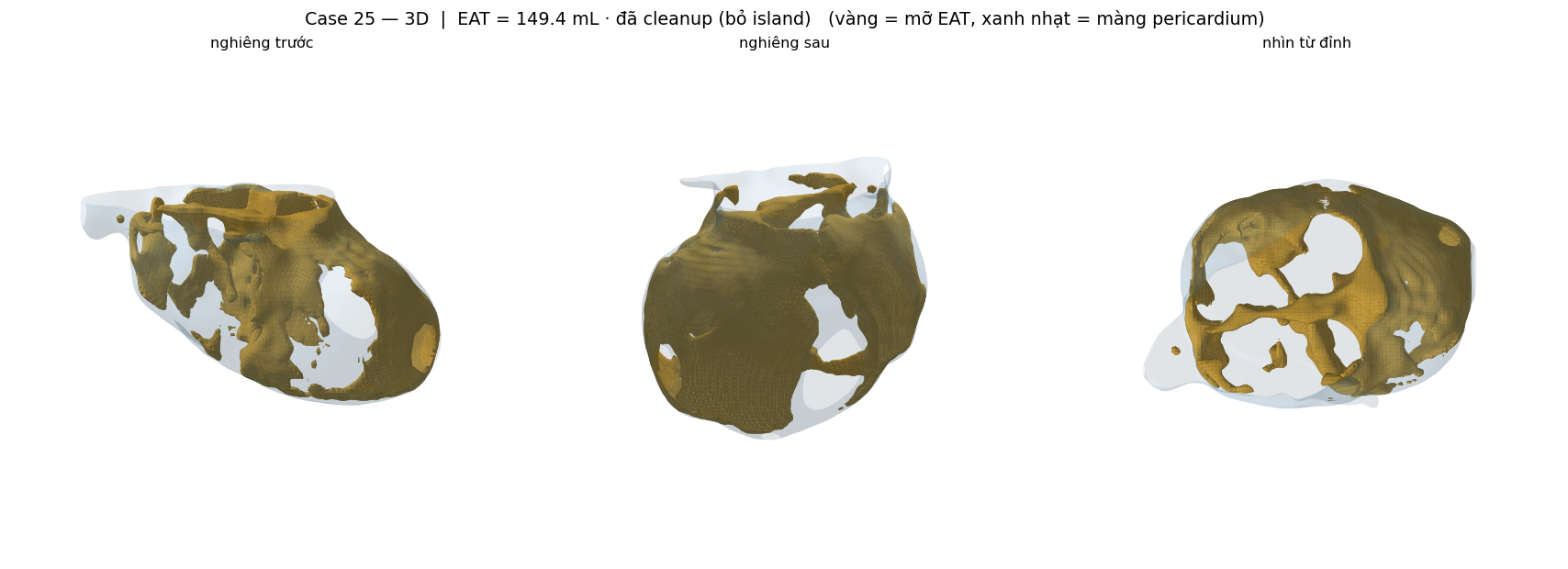

nnU 25 — **Ca 25** · Dice(nnU↔STU) 0.979 · ΔEAT +13.8 mL

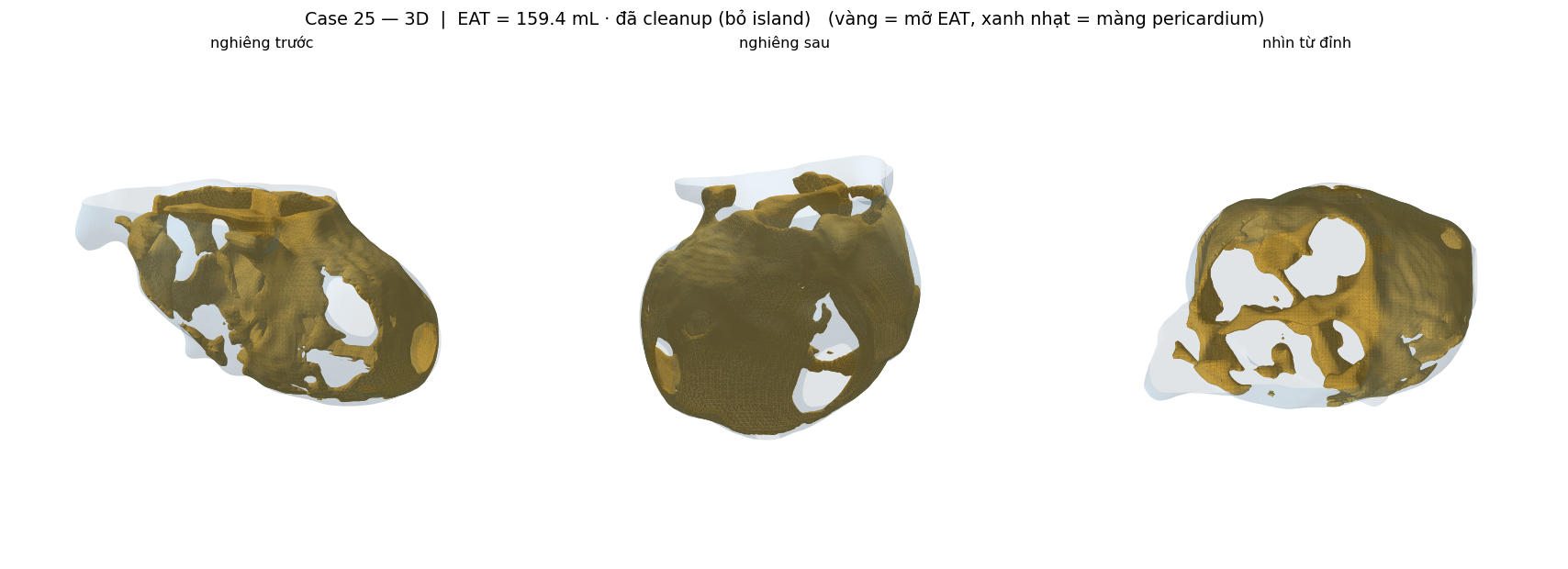

STU 25 — **Ca 25** · Dice(nnU↔STU) 0.979 · ΔEAT +13.8 mL

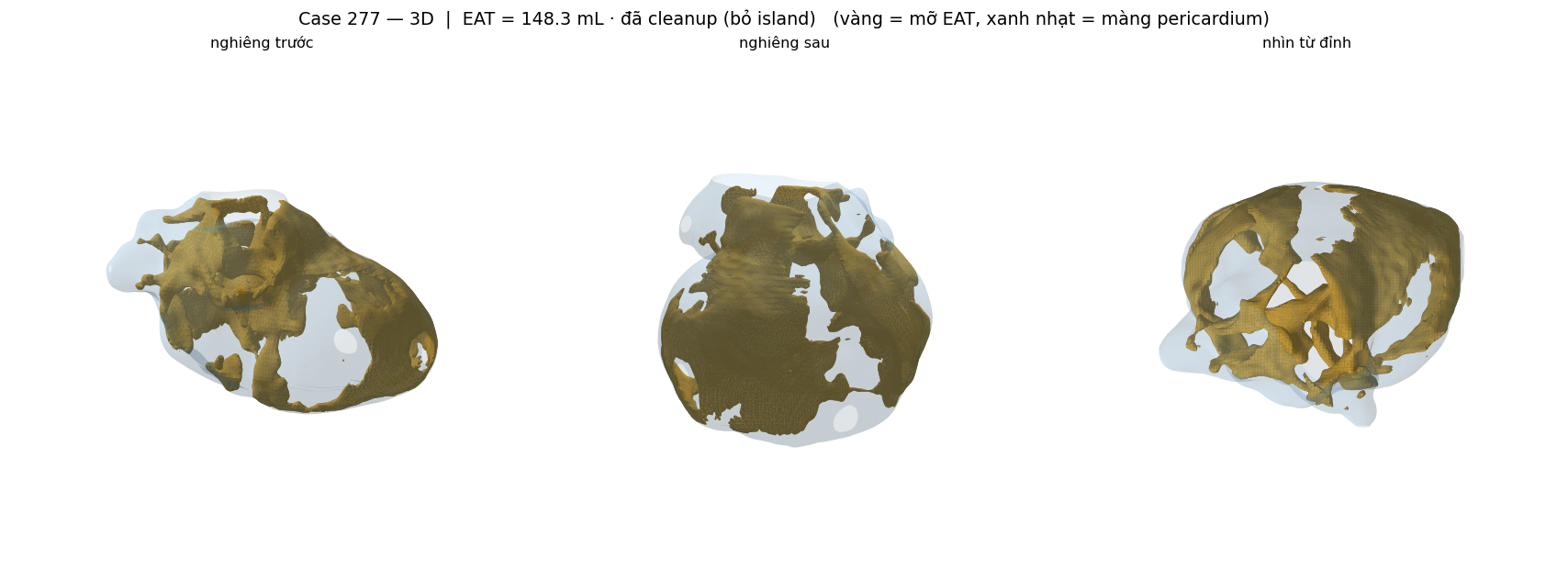

nnU 277 — **Ca 277** · Dice(nnU↔STU) 0.9744 · ΔEAT +13.0 mL

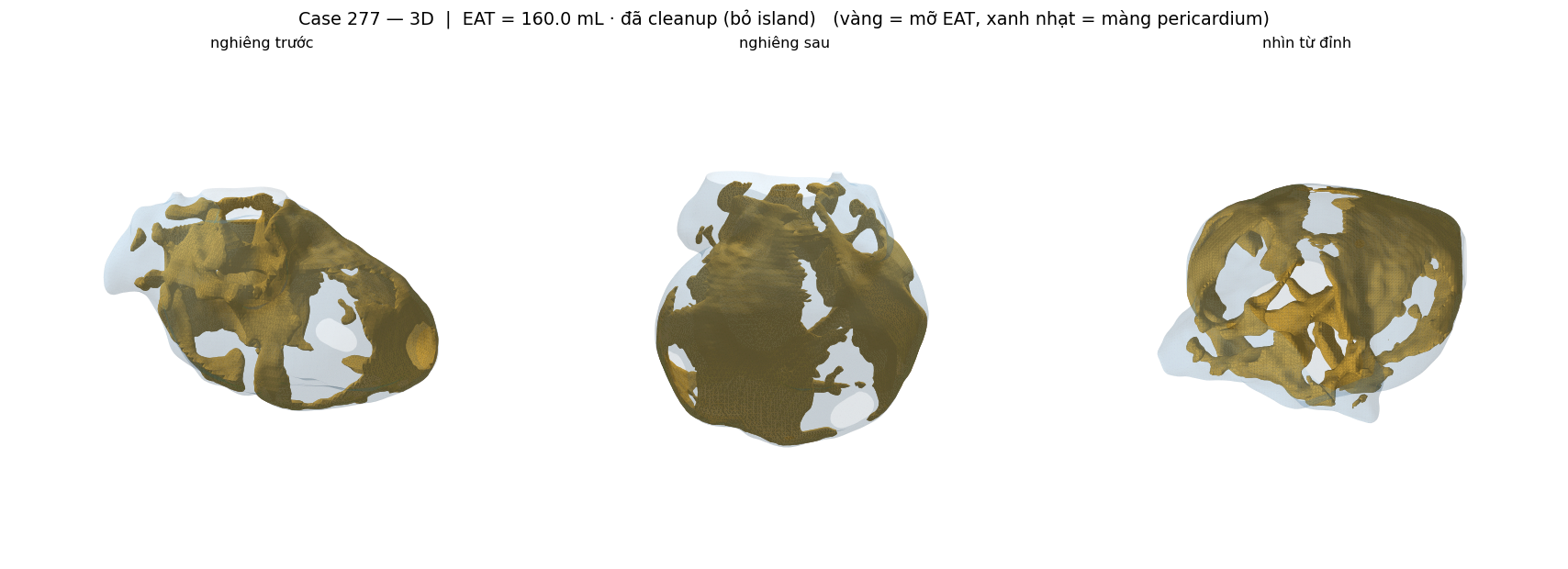

STU 277 — **Ca 277** · Dice(nnU↔STU) 0.9744 · ΔEAT +13.0 mL

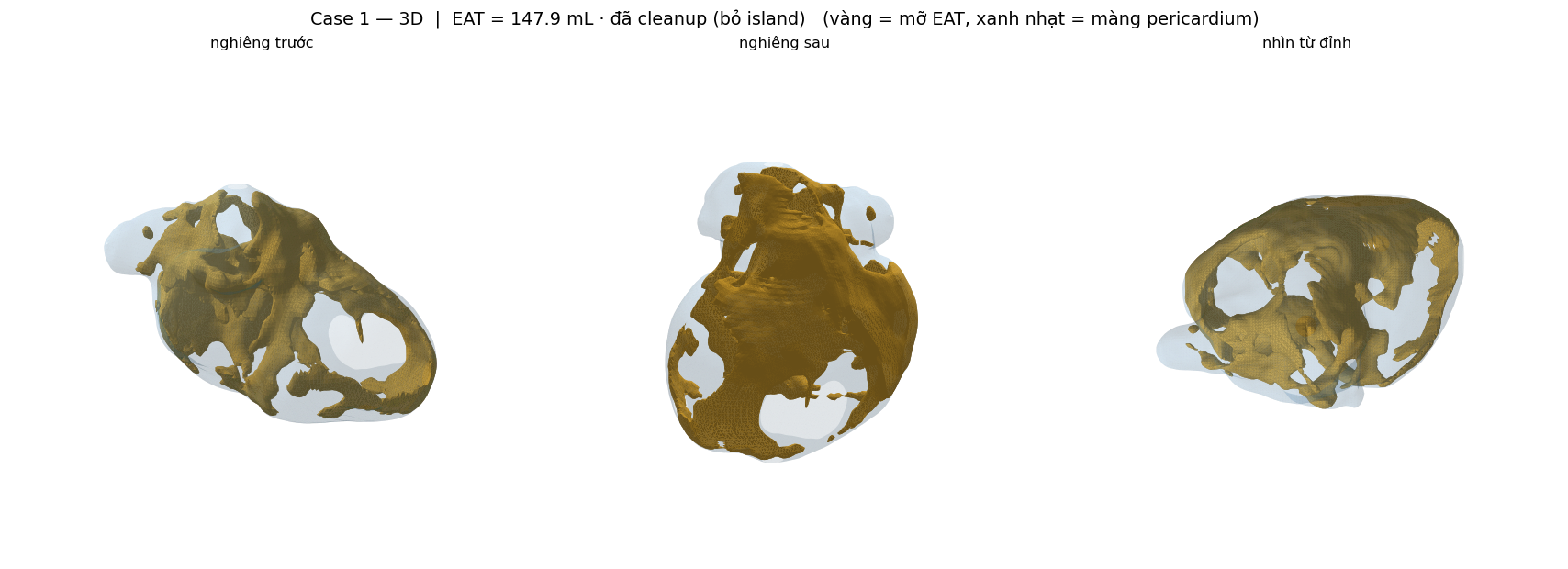

nnU 1 — **Ca 1** · Dice(nnU↔STU) 0.9762 · ΔEAT +14.1 mL

STU 1 — **Ca 1** · Dice(nnU↔STU) 0.9762 · ΔEAT +14.1 mL

Trung thực: mọi số ở đây đo vs nhãn silver hull (over-inclusive ~1.6× tim). STU-Net thắng = "bám hull tốt hơn + rẻ hơn", không phải đúng lâm sàng hơn. Muốn biết model nào đúng giải phẫu hơn cần gold label.
